BETAFPV SuperD ELRS 2.4G isΒ the world’s first True Diversity Receiver that applies two antennas, dual receiver chains, and TCXOΒ (temperature compensated crystal oscillator) tech, achieving super accurate frequency rate and excellent performance in extreme temperature environments. It greatly fulfills the requirements of reliability for long range flying, aerial photography, or FPV freestyle tricks
Check out all our receivers, and our entireΒ BetaFPV selection!
Specifications
- Item:Β BETAFPV SuperD ELRS 2.4G Diversity Receiver
- MCU: ESP32Β PICOΒ D4,Β dualΒ SX1280 (SX1281)
- Antenna Connector:Β IPEXΒ MHFΒ 1/U.FL
- RFΒ Frequency:Β 2.4GHzΒ (2400~2480MHz)
- Telemetry Power:Β 20dBm (100mW)
- Receiver Protocol:Β CRSF
- Input Voltage:Β +5VΒ DCΒ @Β β+βΒ pad
- PCB Size:Β 22mm*14mm

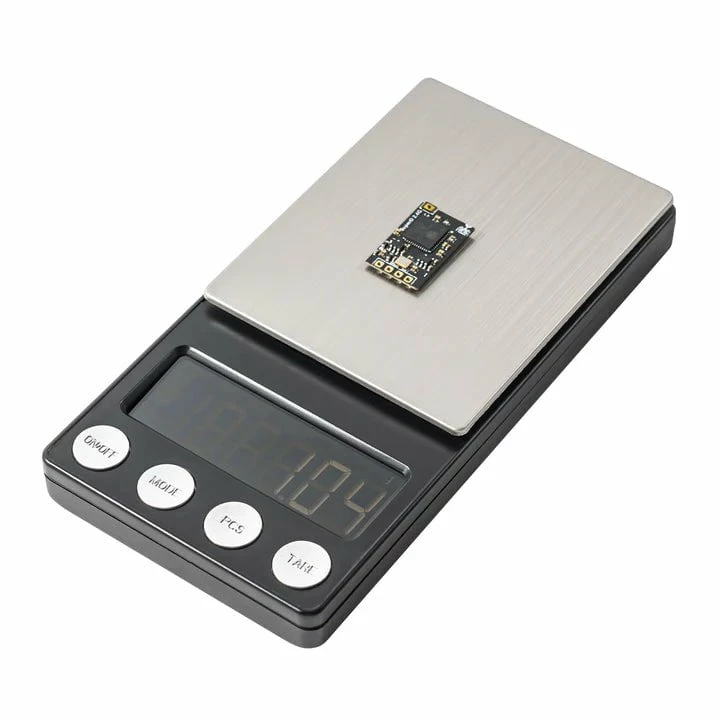

- Weight: 1.1g excluding antenna


Includes
- 1x SuperD ELRS 2.4G Diversity Receiver

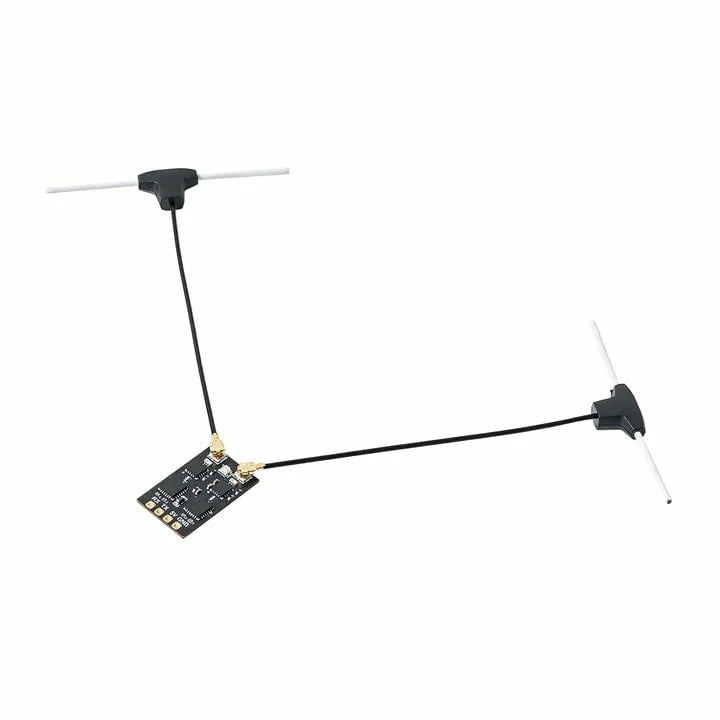

- 2x BETAFPV Dipole T Antenna
- 1x Pin Header
- 1x 30AWGΒ Silicon Wires (1 black, 1 red, 1 white, 1 yellow)
- 1x User Manual
