A reliable GPS with built in compass, all at a great price!

Check out all our GPS modules!

Features

• GPS Module, Dual Module Compass
• With electronic compass IC HMC5883L
• 1.25mm spacing between the 6pins patch seat

Specifications

• Power Supply:
• DC Voltage 2.8V~6.0V
• Typical:3.3V or 5.0V
• Consumption: Capture 50mA@5V
• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Receiving Channel: 72 Searching Channel
• Receiving Sensitivity:
• Trace -167dBm
• Capture-148dBm
• Positioning Time:
• Cold Start: 26s Average
• Warm Start: 25s Average
• Hot Start: 3s Average
• Level Positioning Precision: 2m At Open Wind
• Output Frequency: 1Hz-10Hz,Default 1Hz
• Speed Precision: 0.1 m/s (Without Aid)
• Acceleration Precision: 0.1 m/s (Without Aid)
• Dynamic Characteristics:
• Max Height: 18000m
• Max Speed: 5153m/s
• Max Acceleration: 4G
• UART Interface:
• UART Port: TXDA and RXDA
• Support Rate: 4800bps to 115200bps,Default 38400dps
• Working Temperature:-40℃-+85℃
• Storage Temperature:-40℃-+85℃

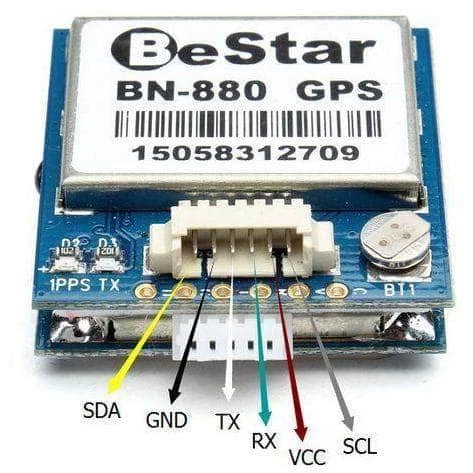

• The Module’s Pins: SDA,GND,TX,RX,VCC,SCL
• Size: 28x28x10mm
• Weight: 10g

Includes

• 1x BN-880 GPS Module
• 1x 15cm Cable
• 1x 3M double-sided tape square

Setup

Note: Can not use for flight control with SCM, but it is suitable for Open source flight controller.

GPS Program Set up documents and instructions: Please click here
BN-880 GPS Configuration files

Check out this great demonstration of the Rescue feature from our customer, Bill Adams:
