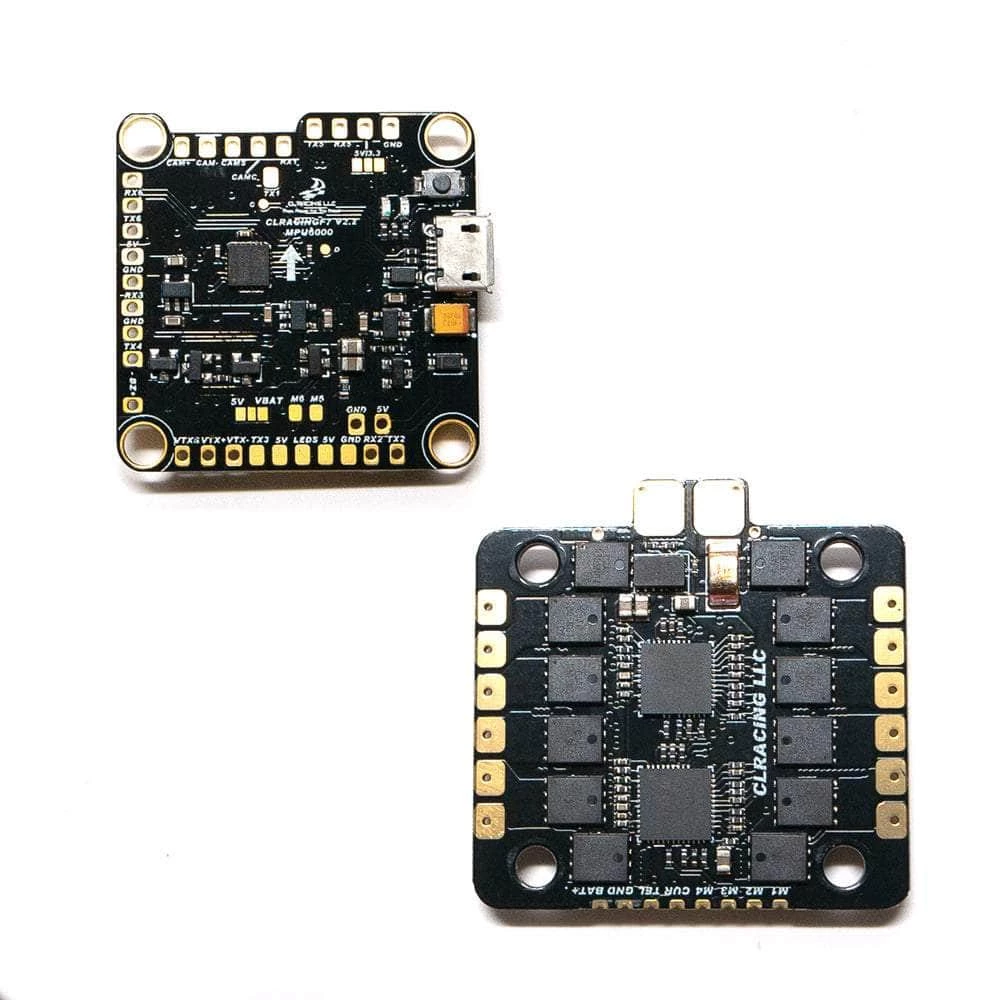

New 🔔 CLRacing F7 V2.2 45A 2-6S 30×30 Stack Combo (F7 FC / 32Bit 45A 4in1 ESC) – Choose Version 🔔

CLRacing is well trusted in the industry and the CLRacing F7 V2.2 45A 2-6S 30×30 Stack/Combo  will show you exactly why. Durable, feature rich, and easy to solder to. Check out the specs below!

This F7 FC and 45A 4in1 ESC are available separately as well!

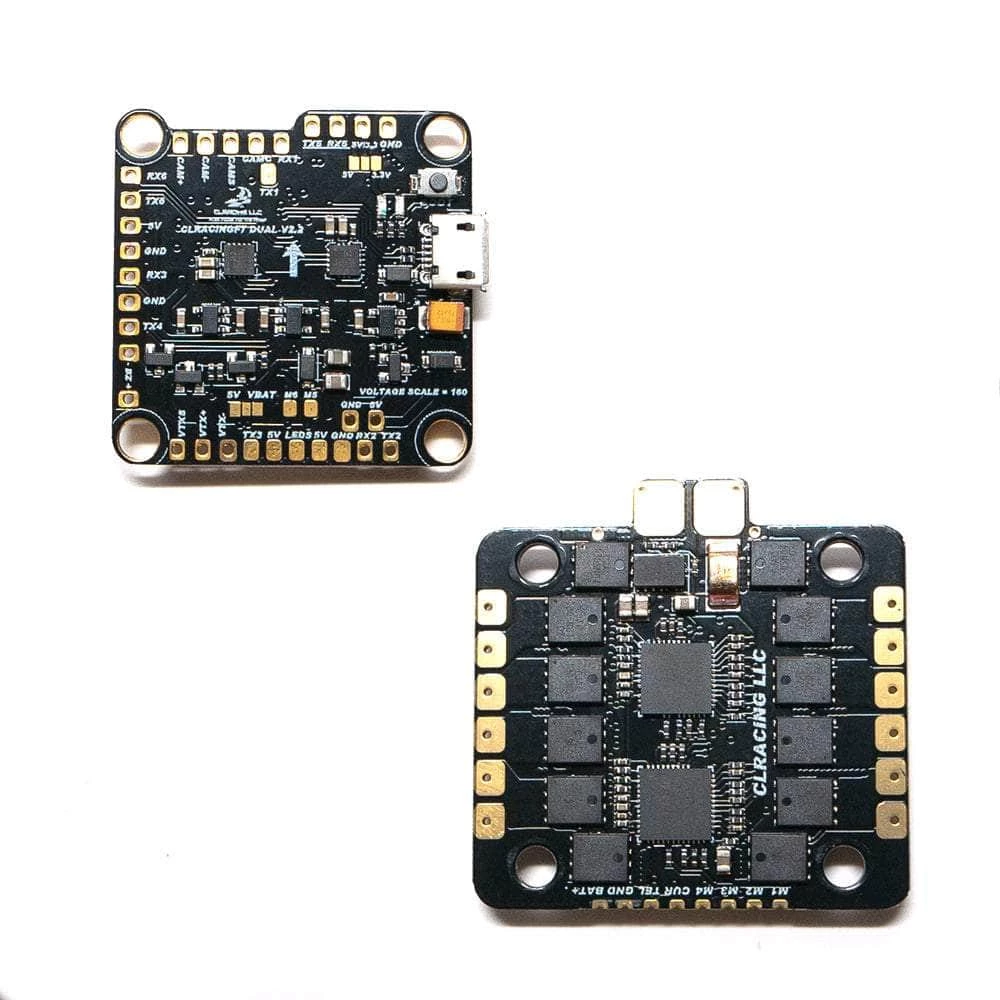

Choose either dual or single gyro version.

Check out all our 30×30 Stacks and Combos and our full range of CLRacing products!

Specifications

FC

• Input Voltage: 2-8S
• MCU: STM32F722RET6216MHz
• IMU: Choose Dual ICM20602 or Single MPU6000
• OSD: Yes
• BlackBox: 32MB
• UARTS: 6
• ESC Connections: 6
• Reverse Polarity Protection: Yes
• Camera Control: Yes
• BEC: 5V/1.5A, 3.3V/250mA
• Buzzer Pads: Yes
• LED Pads: Yes
• Mounting Dimensions: 30×30

ESC

• Input Voltage: 2-6S
• Max. Continuous Current: 45A
• Max. Burst Current: 55A
• Firmware: BLHeli_32
• Support: Dshot300-1200/MultiShot/OneShot/ProShot/PMW
• Current Sensor: Yes
• Current Sensor Scale: 250
• Dimensions 43.5mm x 46.5mm

• Mounting Dimesions: 30.5×30.5mm Φ4mm
• Weight: 13.5g

Includes

• 1x CLRacing F7 V2.2 30×30 Flight Controller
• 1x CLRacing 45A V2 32bit 30×30 4in1 ESC
• 1x Wiring & Accessory Kit
