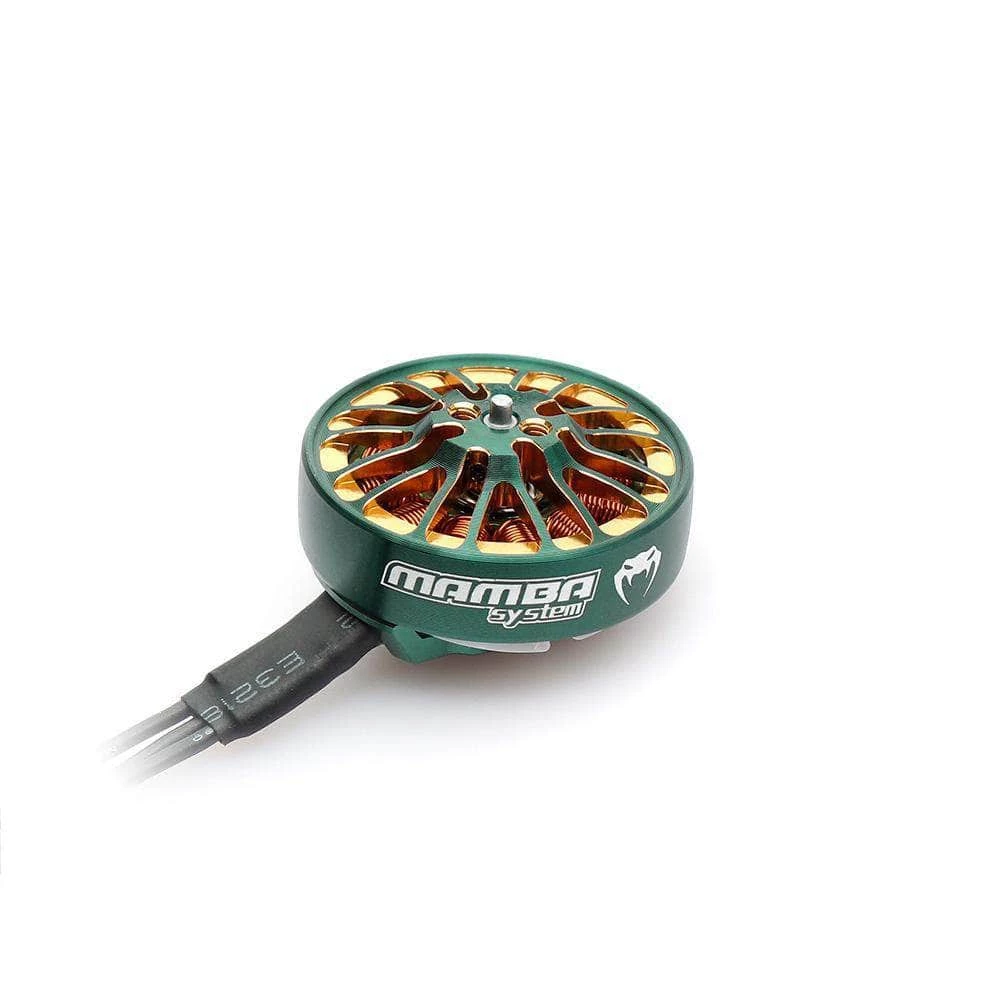

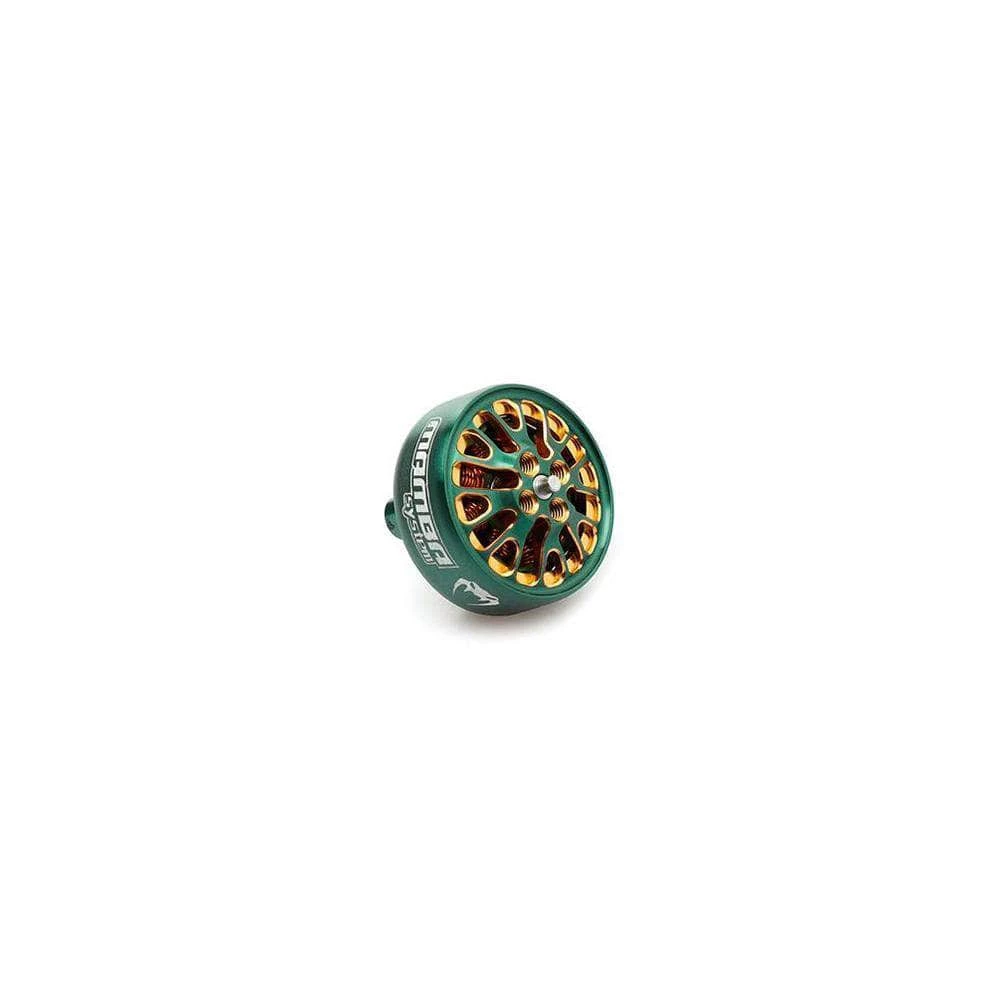

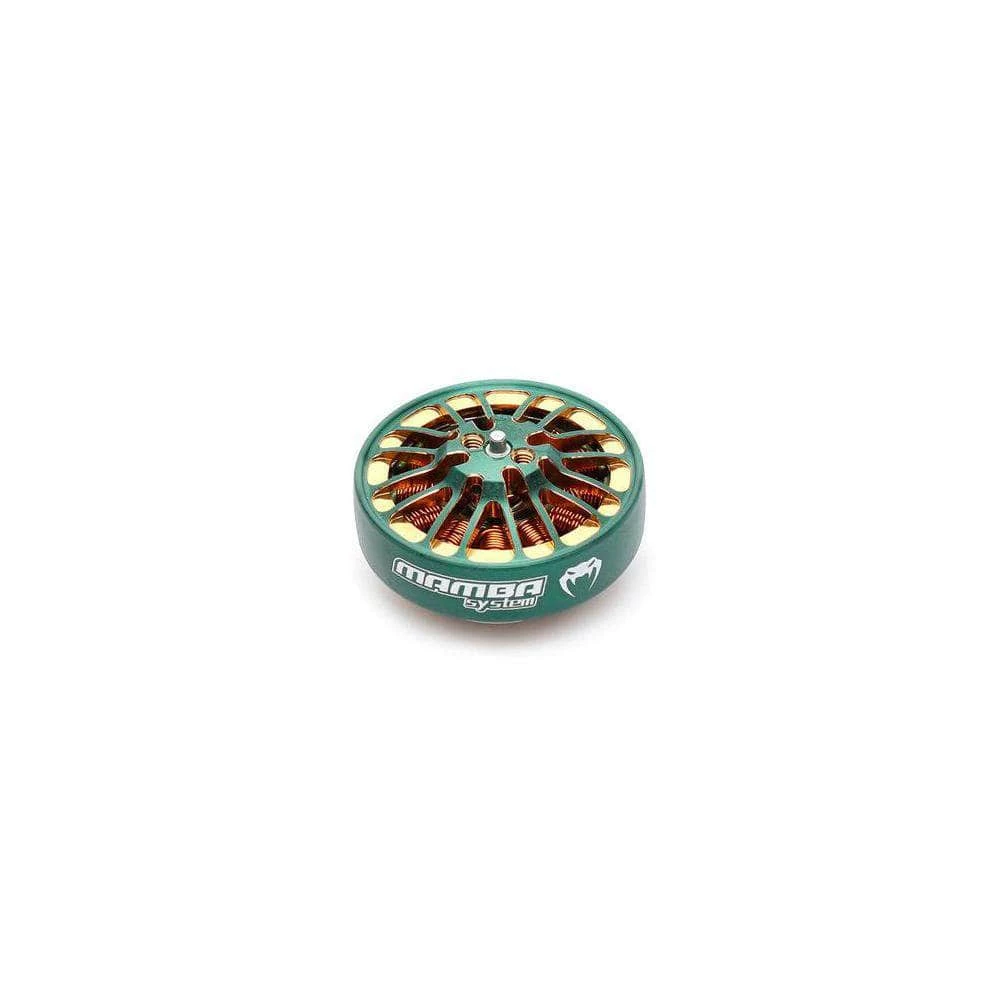

Promo 🌟 Diatone Mamba Toka 2004 1700Kv Micro Motor New 💯

A powerful motor, great for smaller micro builds and also toothpick 5″ builds.

Available in multiple Kv options.

Browse our micro motors and the rest of our Diatone products!

Specifications

• Overall Dimension: Φ26.2×15.3mm
• prop mounting shaft diameter: 1.5mm
• Installation hole position: 12×12mm，M2
• Prop: 3.5inch~5inch
• Bearing：7x3x3
• Shaft Diameter: 3.0mm
• Lead Wire Size：24AWG×150mm
• slots/poles: 12N14P
• Magnet Wire: 240℃ Enameled Wire
• Stator Diamter：20mm
• Stator Height: 4mm
• Rated Voltage: 4~6S (16.8V~25.2V)
• Peak Current: 17.52A
• ldle Current：10V/0.3~0.8A
• Maximum Power: 418.1W
• Internal Resistance：210Ω
• Weight: 16.3g

Includes

• 1x Diatone Mamba Toka 2004 1700Kv Micro Motor
