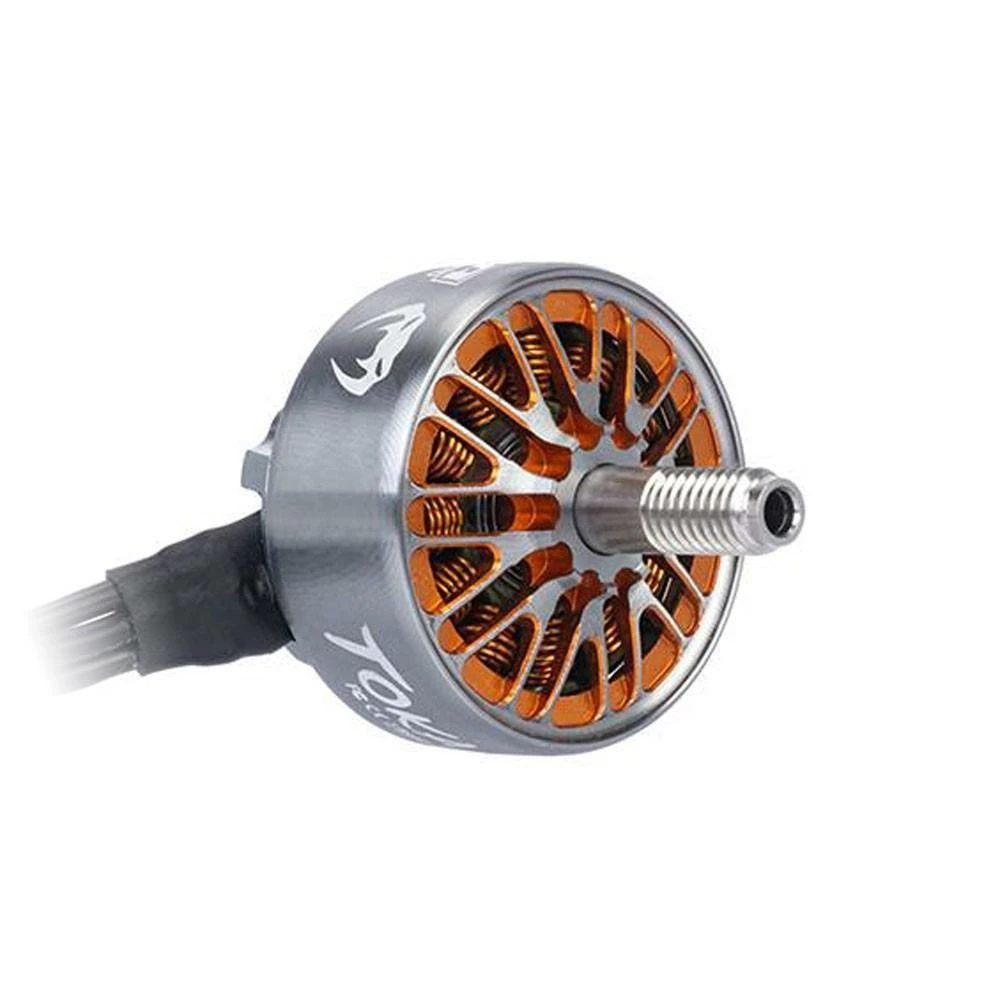

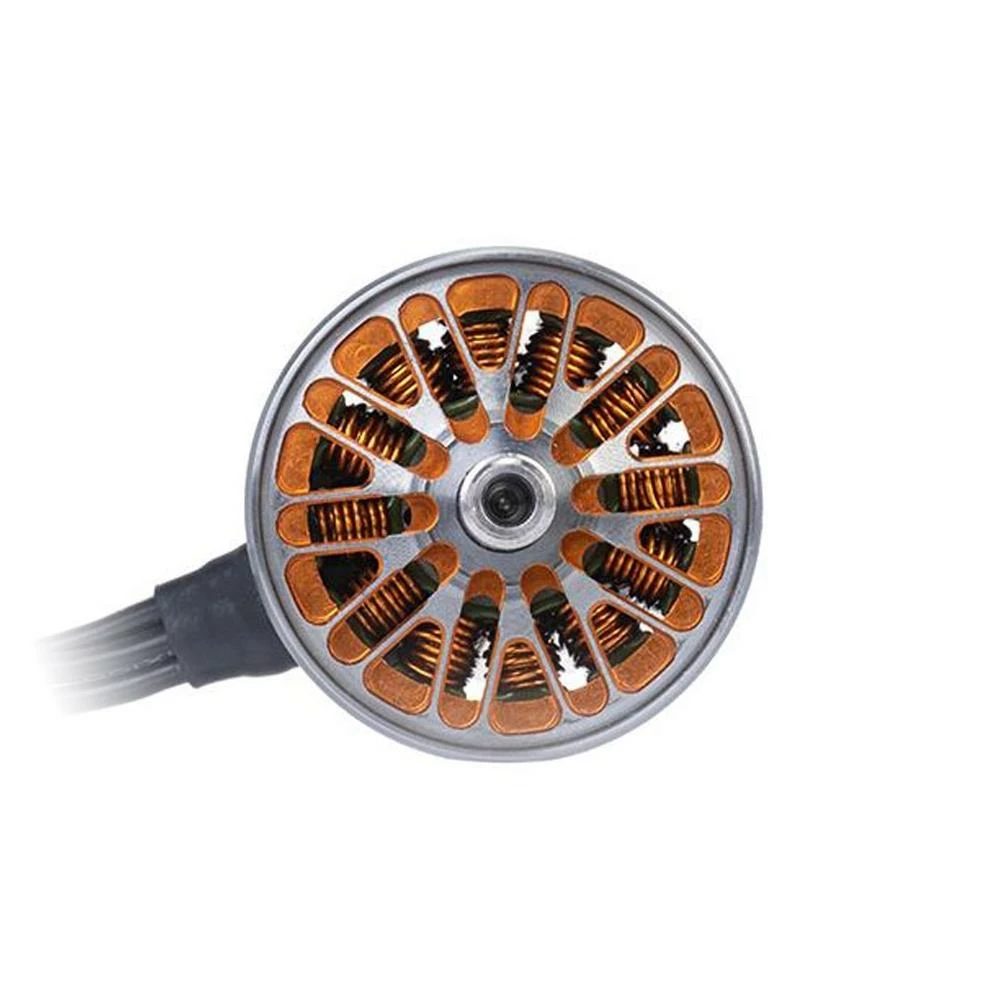

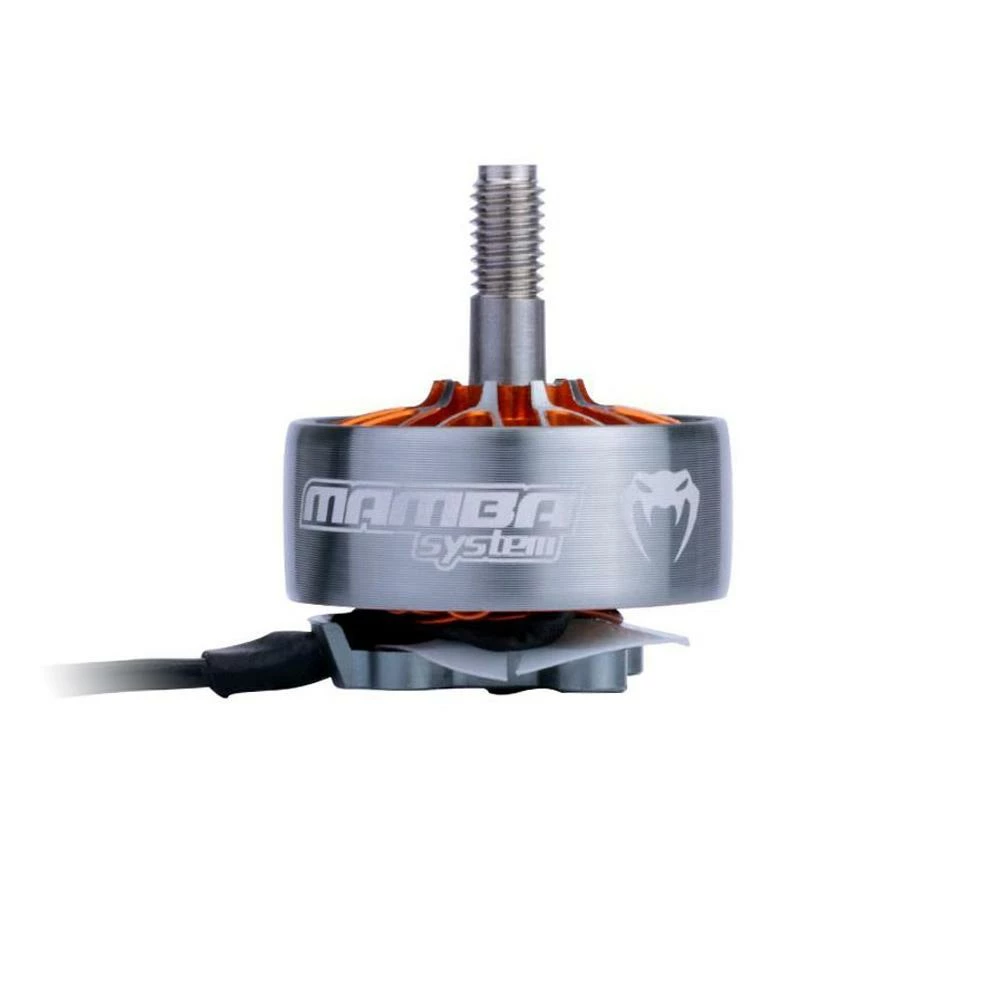

Brand new 🌟 Diatone Mamba Toka 2207.5 1700Kv Motor New 😀

The Toka are Diatone’s latest addition of lightweight freestyle motors. The minimalist unibell design paired with the structurally sound machined spokes provide a lightweight yet durable option for freestyle quads.

These are a direct replacement for the 6S of the Diatone Roma F5 Bind and Fly.

Available in multiple Kv options.

Check out our motor selection, and all our Diatone products!

Specifications

• Kv Rating: 1700
• Overall Dimension: Φ28.5×32.65mm
• Prop mounting shaft diameter:M5
• Installation hole position:16×16mm，M3
• Prop: 5inch~6inch
• Bearing： 4*9*4
• Shaft Diameter:4mm
• Lead Wire Size：24AWG ×190mm
• Slots/poles:12N14P
• Magnet Wire: Class H，220℃ Enameled Wire
• Stator Diamter：22mm
• Stator Height:7.5mm
• Rated Voltage: 4~6S (16.8V~25.2V)
• Peak Current: 38.5A
• Maximum Power: 924W
• Weight: 32.5g

Includes

• 1x Diatone Mamba Toka 2207.5 1700Kv Motor
