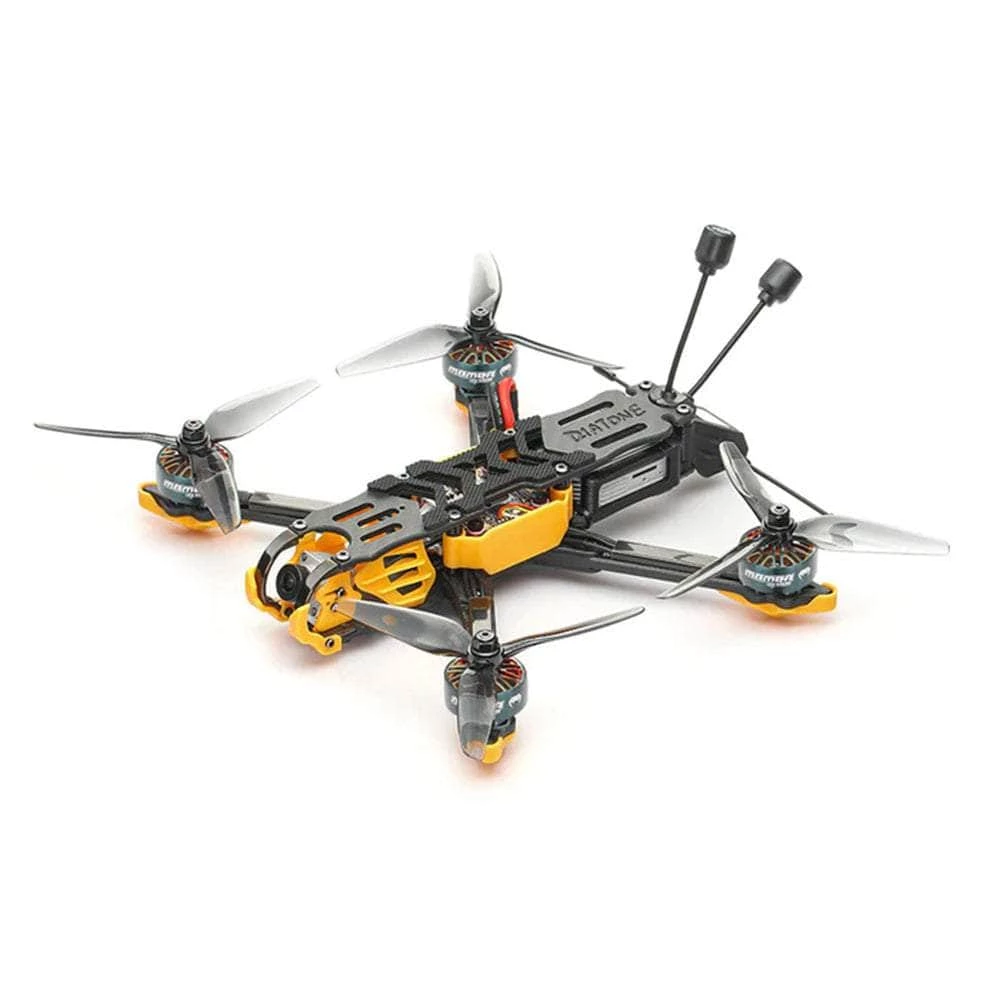

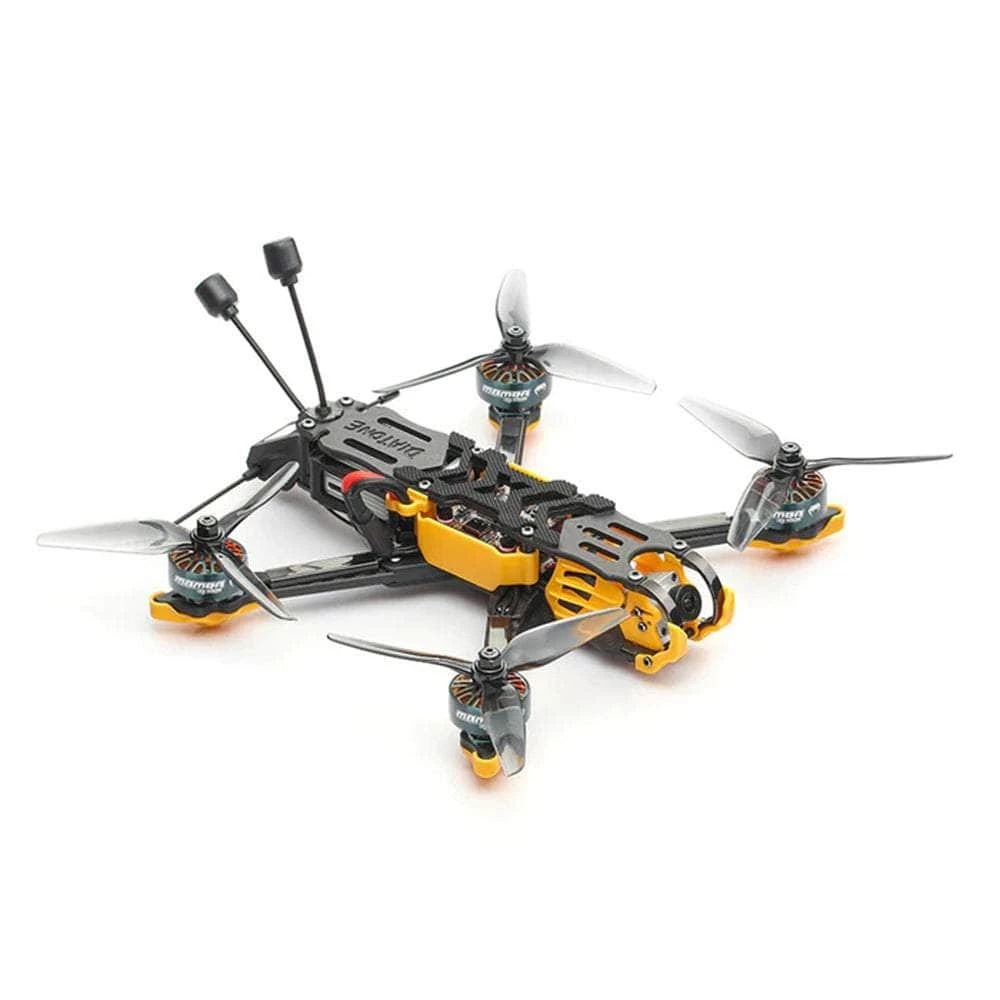

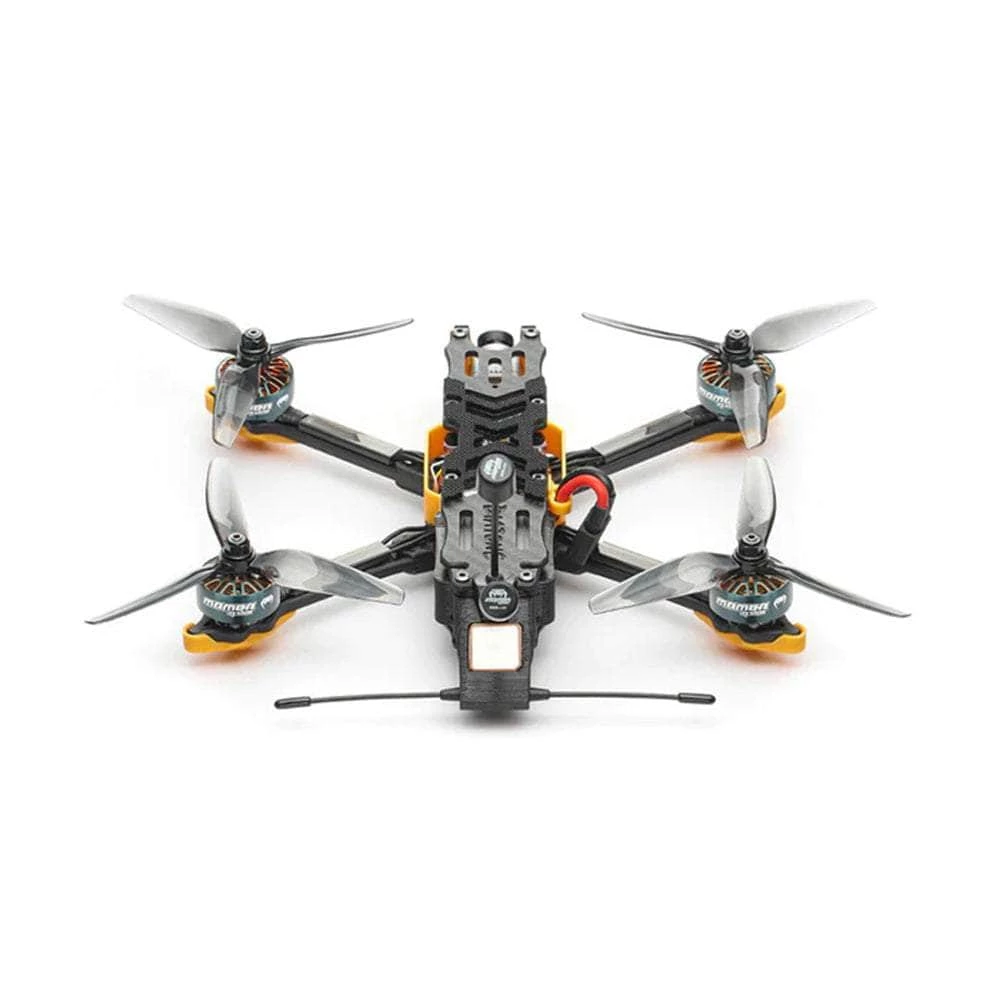

Best Sale 🎁 Diatone PNP Roma F5 HD V2 5″ Quad W/ Caddx Vista & Nebula Pro – 6S ✔️

This Roma F5 HD V2 features the Nebula Pro Camera.

Diatone has introduced a number of changes to the newly optimized Roma F5 V2, including the stiffness and strength of the frame arms. They’ve also strengthened the metal parts at the front of the frame and upgrade the alloy material from 7075 to titanium steel. For that extra high-end, tactile quality, they’ve treated the surface of the metal parts as well and changed the screws fixing the metal parts from M2 size to M3-sized specifications. Ready to be bound to your DJI controller, and also includes multiple pigtail adapters to plug in the receiver of your choosing.

Check out our other pre-built quads, as well as the rest of our Diatone selection!

Specifications

• Recommended Battery:  6S 1300mAh
• Propeller Size: 5″
• Antenna: Diatone Mamba Ultra LHCP

Diatone Mamba DJI F722 MK2 FC

• Input Voltage: 3-6S LiPo
• MCU: STM32F722RET6
• Gyro: MPU6000
• OSD: Yes
• UARTs: 6 Sets
• ESC Connections: Yes
• BEC: 3.3V 0.5A / 5V 3A / 9V 3A
• Current Sensor: Yes
• Buzzer: Yes
• Barometer: Yes
• Black Box: 16Mb
• DJI Compatible: Yes
• Stack Size: 30×30

Diatone Mamba F55 55A BLHeli_32 4in1 ESC

• Input Voltage: 3~6S Lipo (12.6V~25.2V)
• Max Continuous Current: 55A
• Max Burst Current: 65A
• BEC: No
• Target：BLHeli_32 MAMBA F55_128K
• Protocol: Dshot300/600/1200
• PWM Range: 24~128K
• TVS Protection: Yes
• Mounting Pattern: 30×30 M3

Diatone Toka 2306.5 1770Kv

• Kv: 1770Kv
• Input Voltage: 4-6S
• Configuration: 12N14P
• Max Continuous Current: 45A
• Internal Resistance: 52mΩ
• Motor Dimensions:  Φ29.7mm x 18.7mm
• Stator Dimensions:  Φ23mm x 6mm
• Shaft Diameter:  Φ5mm
• Mounting Pattern:  Φ16mm

Caddx Nebula Pro

• Sensor: 1/3″ CMOS
• Resolution: 720p / 120FPS
• FPV Latency: <28ms
• Shutter: Rolling Shutter
• Lens: 2.1mm f/2.1
• FoV: 150° Diag.
• Aspect Ratio: 4:3 / 16:9 Switchable
• Dimensions: 19x19x20mm
• Weight: 6g

Vista Module

• Input Voltage: 7.4-26.4V

• Output Power: 25mW / 200mW / 500mW / 700mW
• Dimensions:
• Vista: 30x29x13mm
• Coaxial Cable: 120mm
• Antenna: 105×11.2mm
• Weight: 28g (+1.5g for Antenna)

Includes

• 1x Diatone PNP Roma F5 HD V2 5″ Quad w/ Caddx Vista & Nebula Pro – 6S
