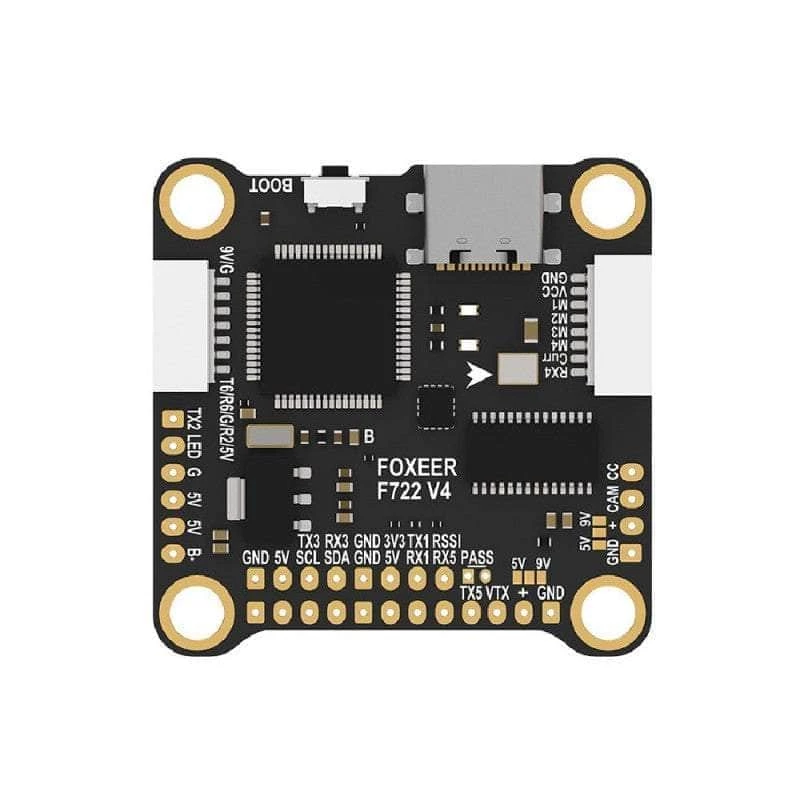

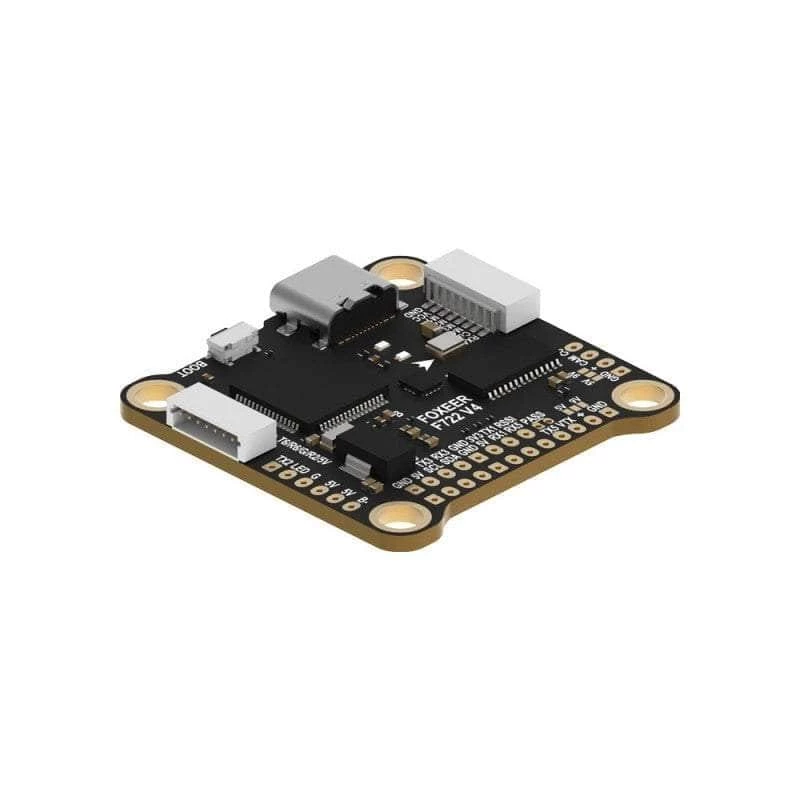

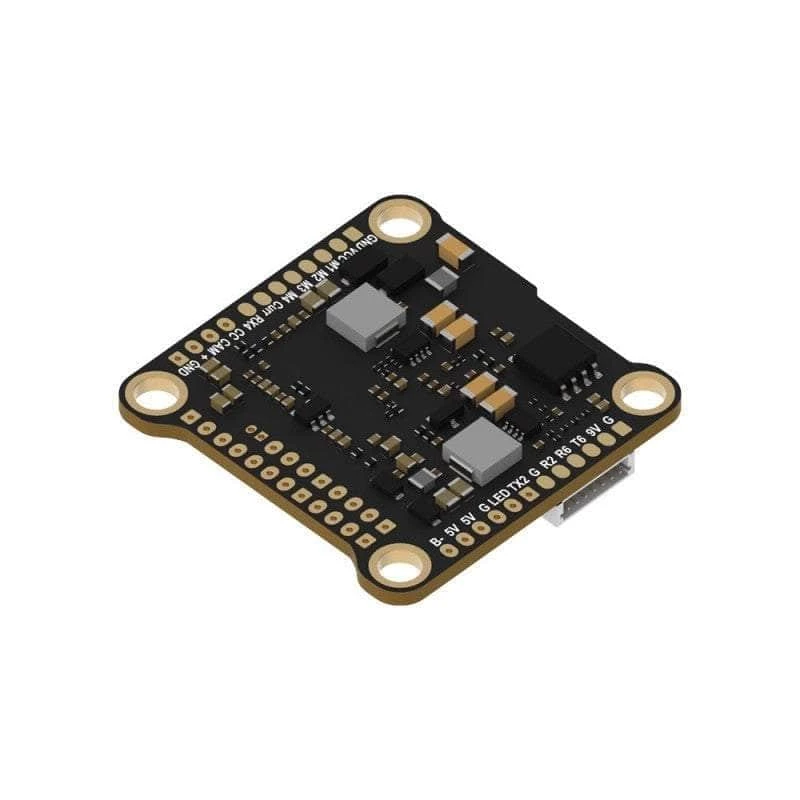

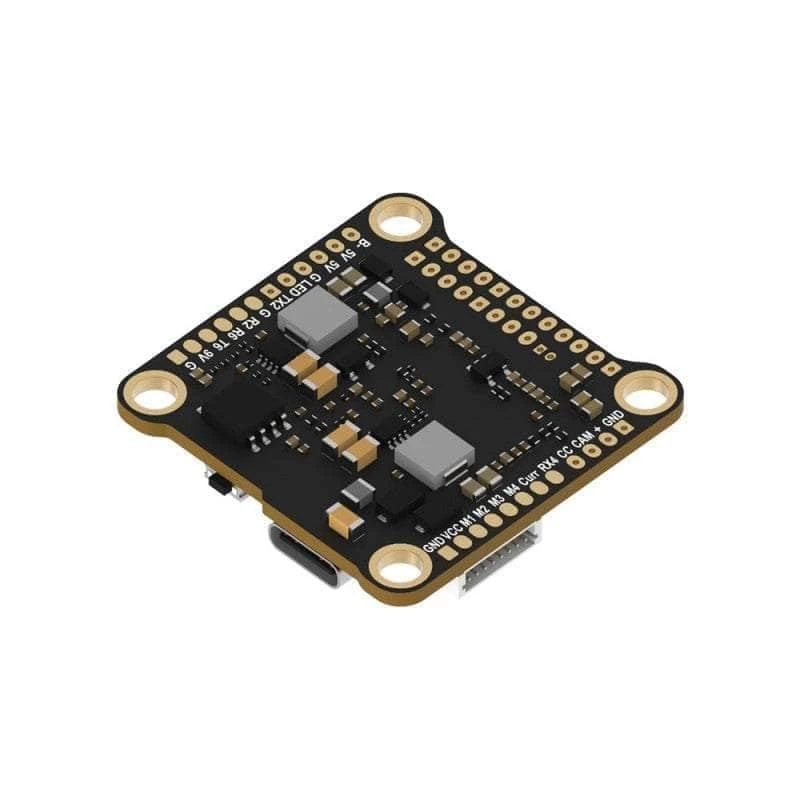

Buy ⌛ Foxeer F722 V4 30×30 Flight Controller New ⌛

Foxeer’s V4 F7 FC has a clean layout with high-quality components. No more worrying about lifting pads during crashes, this FC has through holes for every solder point. As part of the update, the Foxeer F722 now features 8 motor outputs!

Check out our 30×30 Flight Controllers and all our Foxeer products!

Specifications

• Input Voltage: 3-6S
• CPU: STM32F722RET6
• Gyro: ICM-42688-P
• BEC Output: DC5V/3A; DC9V/3A
• OSD: BF OSD
• Black Box: 16M Flash Memory
• UARTs: 6
• ESC Telemetry: RX4
• Buzzer: YES
• Smart Audio: YES
• LED: 1 Set 2812 LED
• USB: Type-C
• Motor outputs: 8 (will need CLI configuration)
• Firmware: FOXEERF722V4
• Dimensions: 37x37mm
• Mounting Pattern: 30.5×30.5mm Φ4mm
• Weight: 8g

Includes

• 1x Foxeer F722 V4 30×30 Flight Controller
• 4x Vibration Gummies

Wiring Diagram
