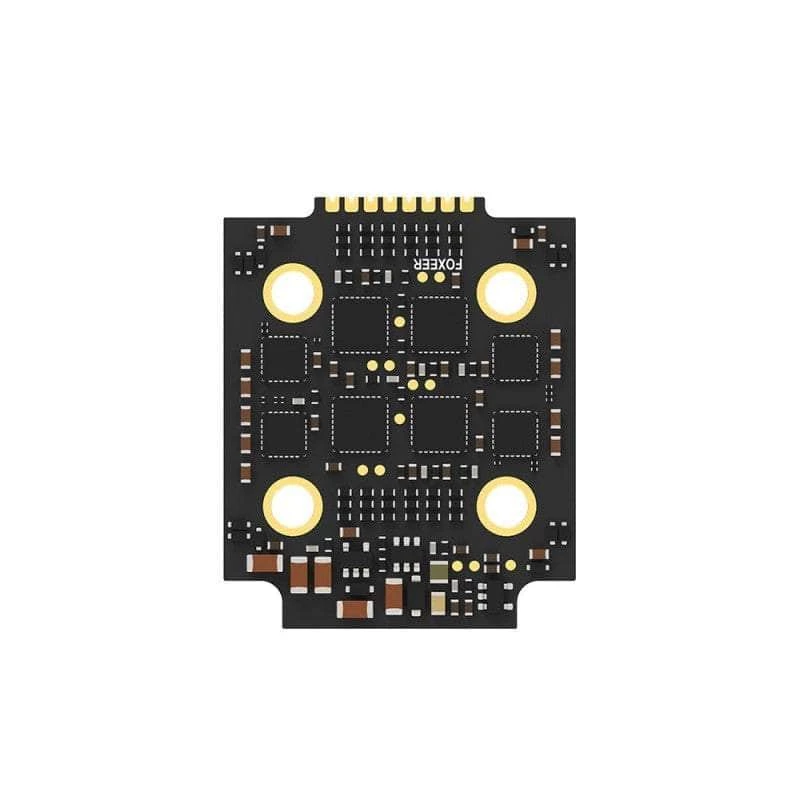

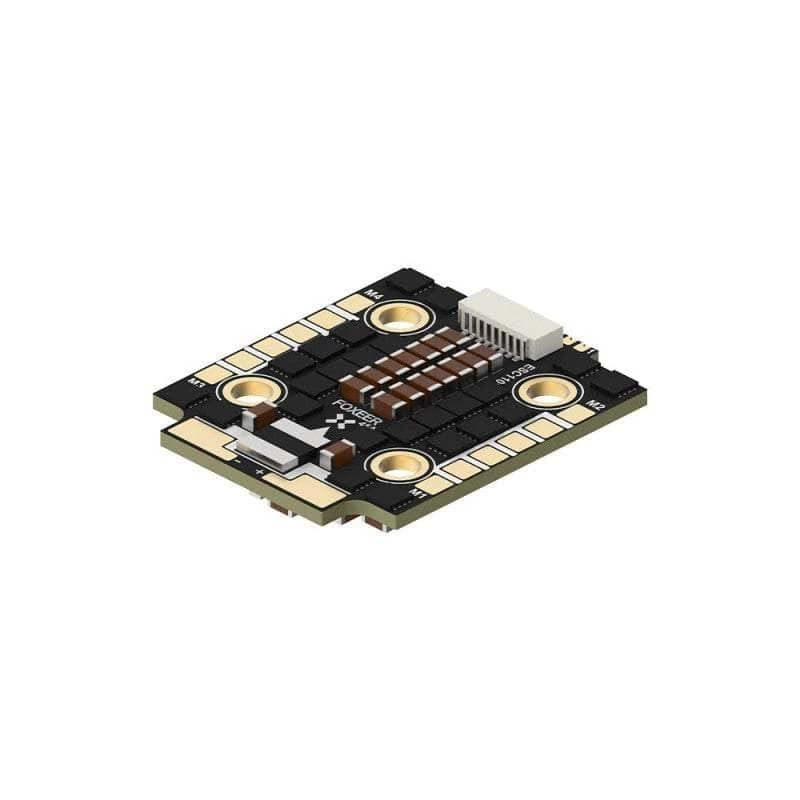

The Foxeer Reaper F4 Mini 128K is the next evolution of the Reaper ESC series. With its low heat generation and high-quality mosfets, this new version has a smoother flight, with fewer desyncs.
Check out the rest of ourย 20×20 ESCs, as well as the rest of ourย Foxeerย offerings!
Specifications
- Input Voltage:ย 3-6S LiPo
- Max. Continuous Current: 45A
- Max Burst Current: 65Aย
- Telemetry:ย Yes
- Firmware:ย BLHeli_32
- Target: FOXEER_ReaperM4IN1_F4_60A_128_Multi_32_9
- Input Signal:ย DShot 150/300/600/1200/MultiShot/OneShotย
- BEC:ย No
- Mounting Pattern: 20x20mmย M3
- Dimensions: 40x33mm
- Weight:ย 10g
Includes
- 1x Foxeer Reaper F4 Mini 128K 32Bit 45A 3-6S 20×20 4in1 ESC
Wiring Diagram
