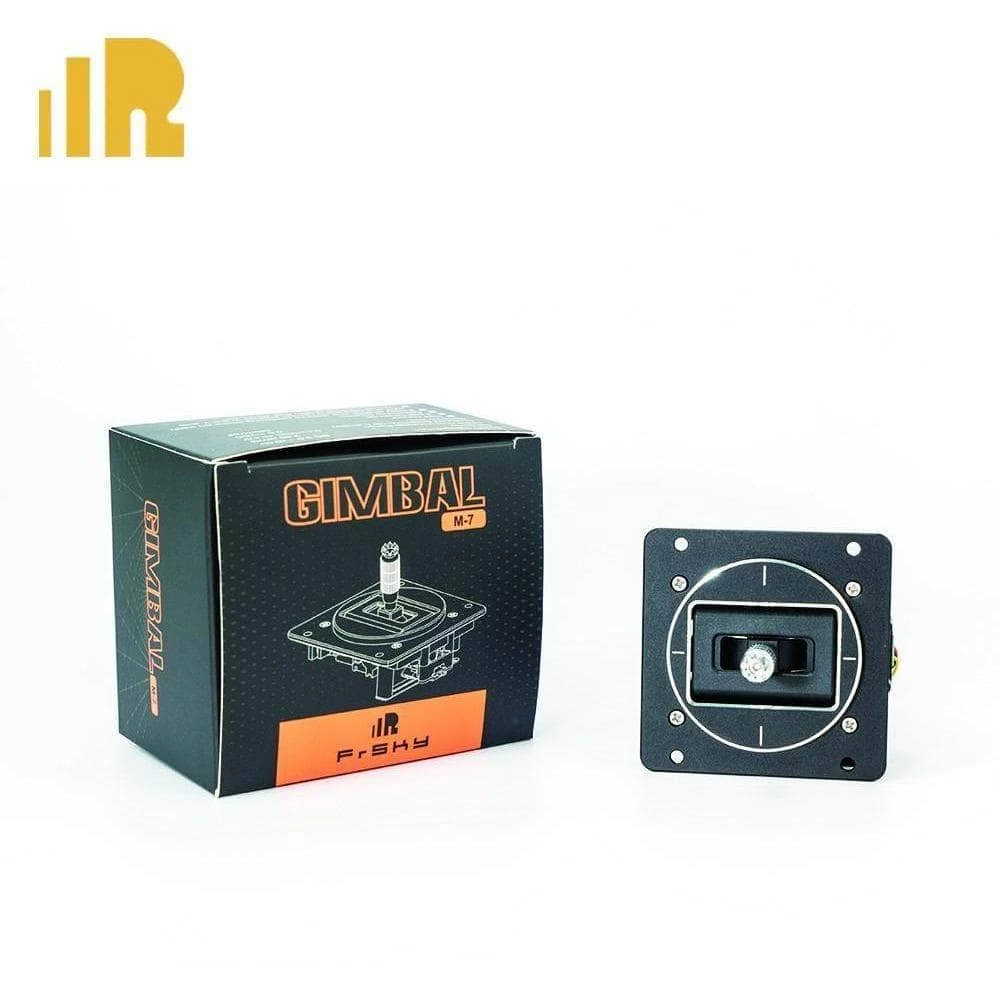

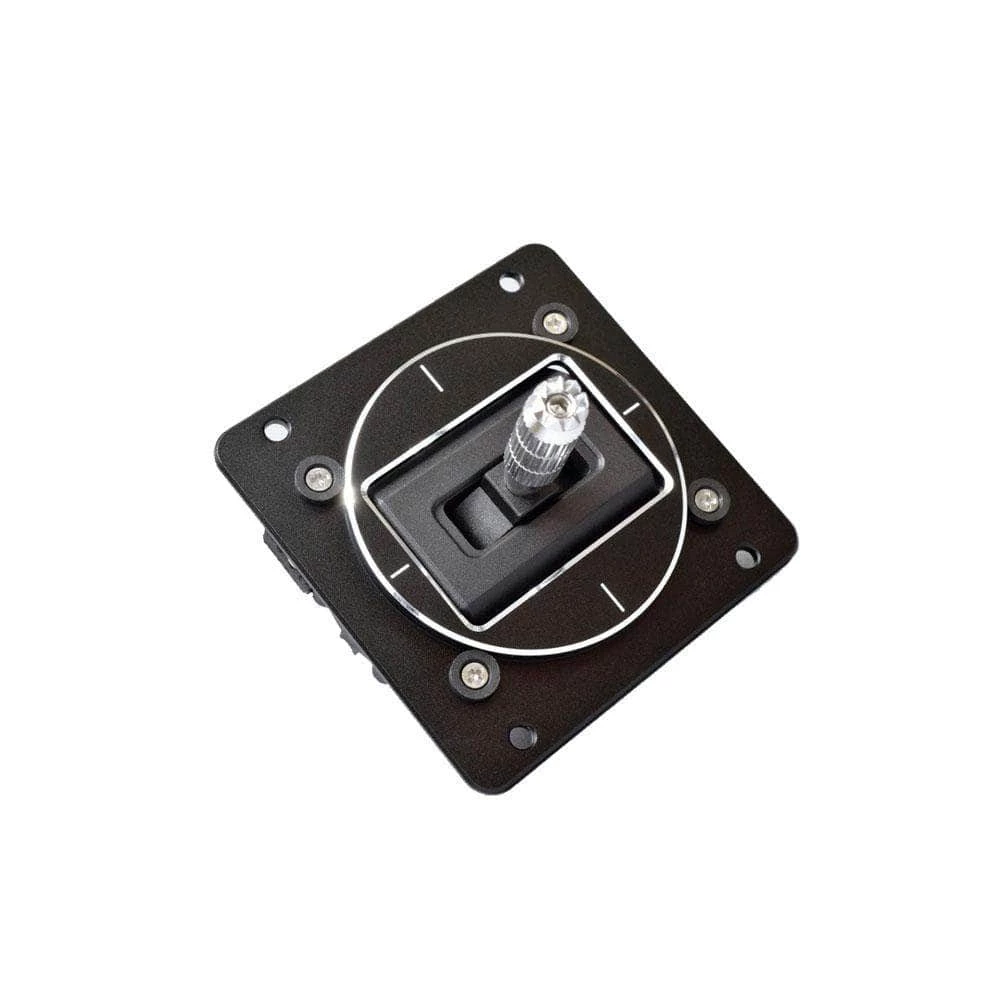

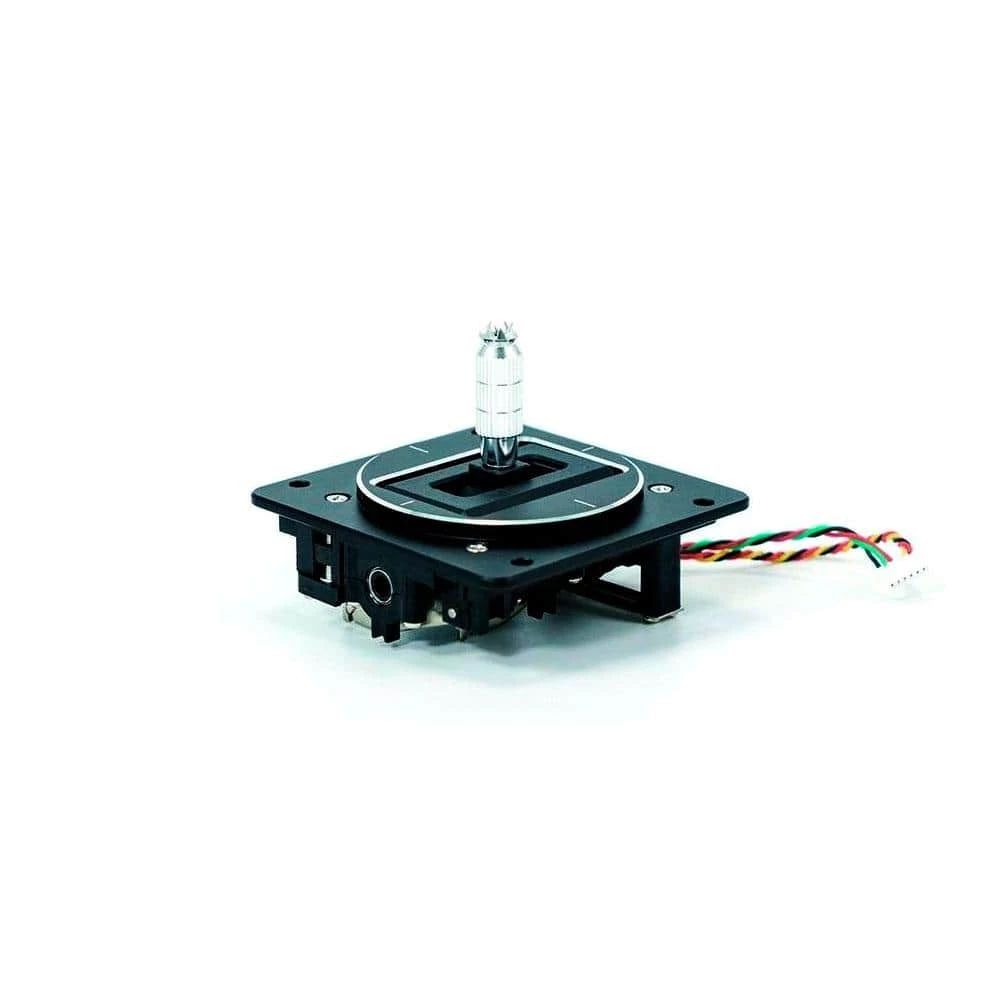

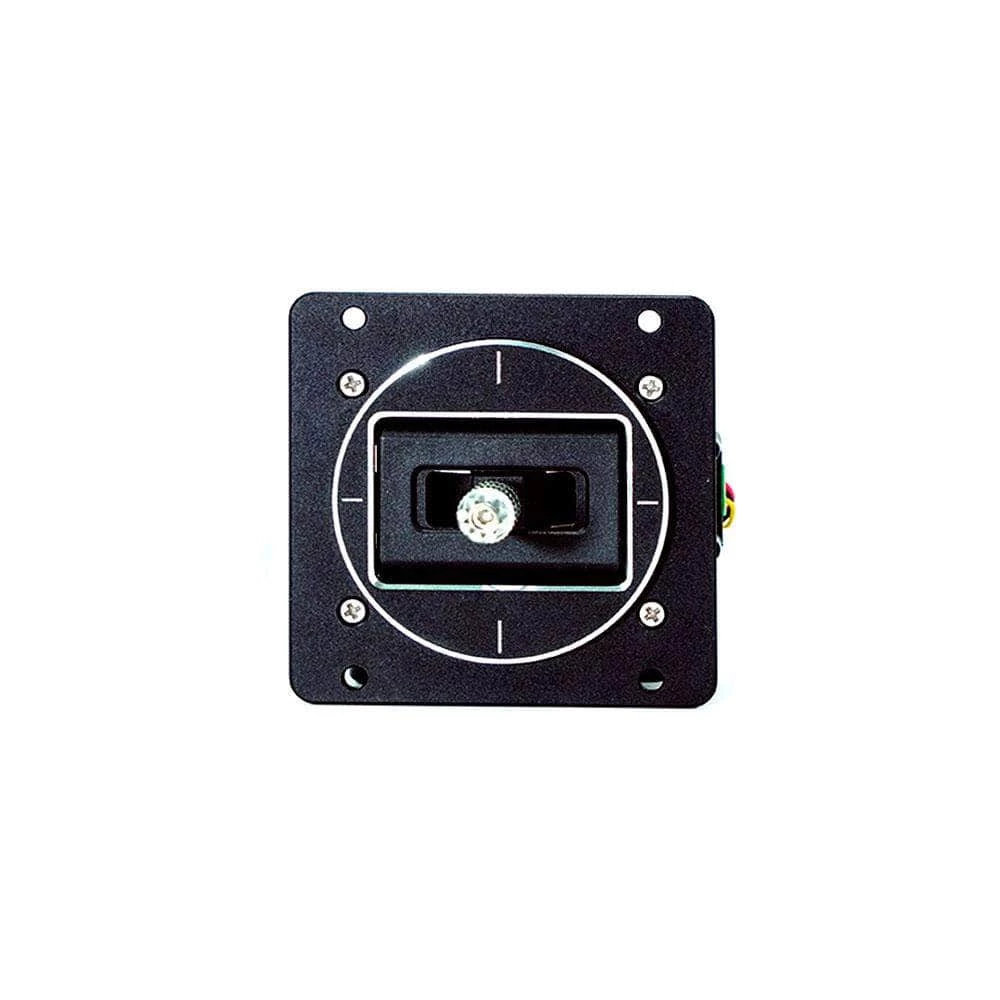

Upgrade your Taranis QX7 with this plug-n-play high resolution M7 Gimbal from FrSky. The highly sensitive hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings, and a quality metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disabled self-centering (one screw). This is a must have accessory for achieving those precision flight maneuvers.ย
We also carry the M7-R Gimbal for those who prefer a shorter stick throw.
Check outย all of our RC Transmitters, Parts and Accessories!ย
Features
- Hall Sensors
- 4 Ball-Bearings
- Adjustable Tension
- Self-Centering can be enabled or disabled on both axis.
- Ratcheting can be enabled or disabled onย the Y axis.
- Built with special material that wears wellย
Specifications
- Supply Voltage (VCC): DC 3.0 ~ ยฑ0.5V
- Sensitivity: 2.50 mV/G
- Linear Output Voltage Range:ย 0.1ย ย ~ ๏ผ VCC +0.1๏ผ V
- Output Load Resistance (output to ground) >15KQ
- Quiescent Output (TA = 25ยฐC, B = 0 G): 0.5 ร VCC
- Noise (no load): โค40mVpp
- Quiescent Output Power Supply Rjection: -69dB
- X-Axis Adjustable Angle Range: 60ยฐยฑ5ยฐ
- Y-Axis Adjustable Angle Range: 60ยฐยฑ5ยฐ
- Adjustable Height Range: 24.5mm-30.5mm
- Installation Dimension: 42.9mmx54mm
Includes

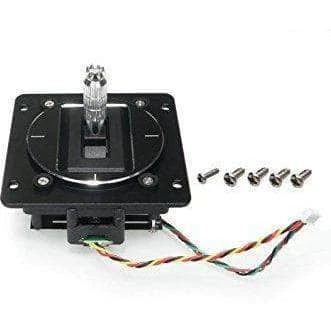

- 1x Hall Sensor M7 Gimbal and Mounting Hardware
