Flash Sale 💯 GEPRC F411 2-6S AIO Toothpick / Whoop Flight Controller W/ 35A 4in1 ESC New 👍

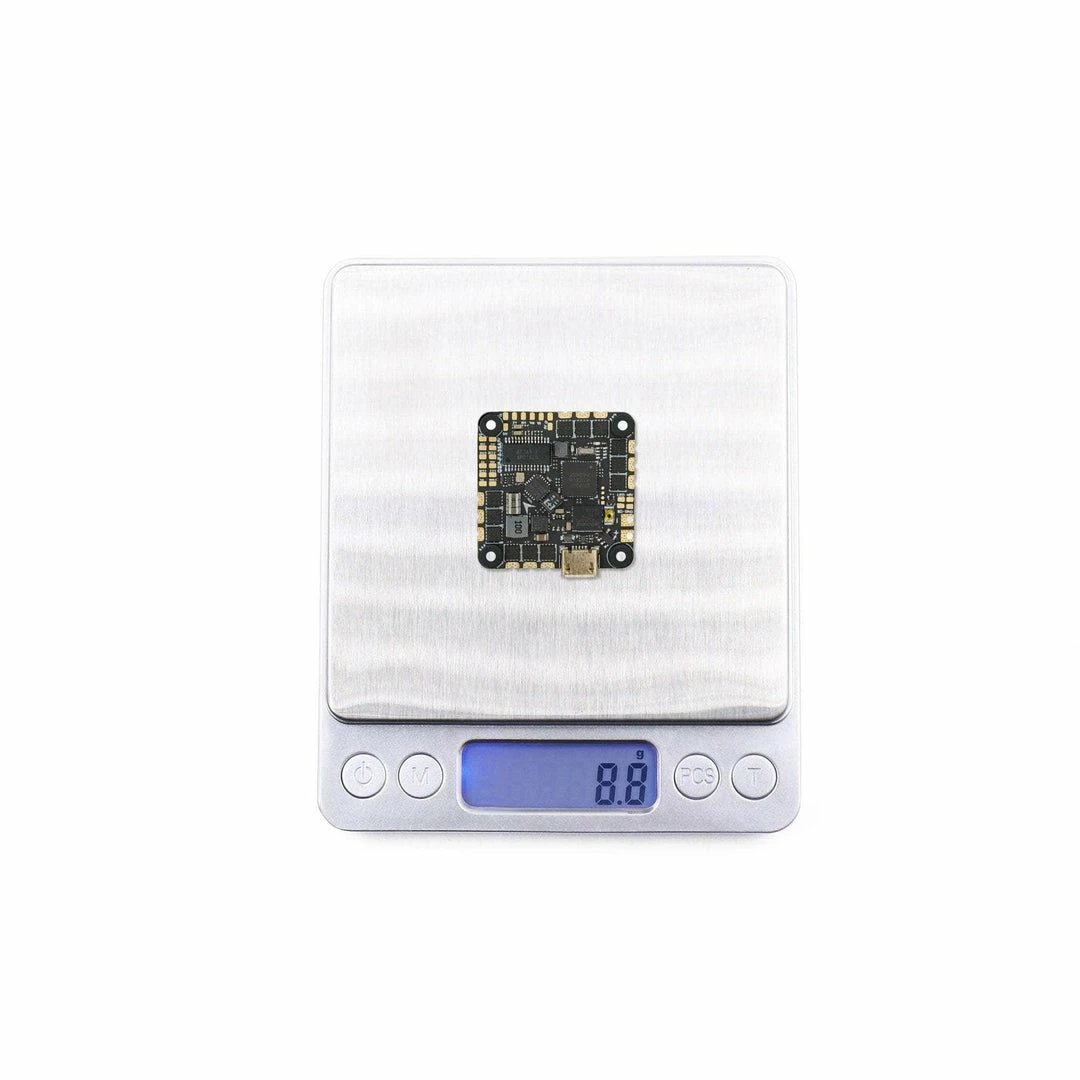

GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst) and totally supports the 2-6S lipo battery. It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. It supports OSD parameter adjustments. And It’s only 8.8g ultra-lightweight. With 25.5mm x 25.5mm mounting holes, this AIO is suitable for most of the frames on the market.

Check out all our whoop flight controllers, and our GEPRC products!

Specifications

• Model Name: GEP-F411-35A AIO
• MCU: STM32F411
• IMU: BMI270 gyro/accelerometer (SPI)
• FC Firmware target: GEPRC_F411_AIO
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro: NO
• Current Monitoring: Yes
• Betaflight OSD: Yes
• External Buzzer: Yes supported
• LED: Yes Supported
• USB Port: MicroUSB
• BEC Output: 5V@1A
• Integrated LC Filter
• ESC MCU: 8BB21F16G
• Continuous current: 35A
• Peak current: 40A(10s)
• Input: 2-6S lipo
• Supports Dshot300/600, Oneshot, Multishot
• Current meter: 210
• Target: G_H_30 BLS
• Size: 32x32mm board,25.5mm mounting holes (M2)
• Installing Hole: 25.5×25.5mm, M2

Manual PDF

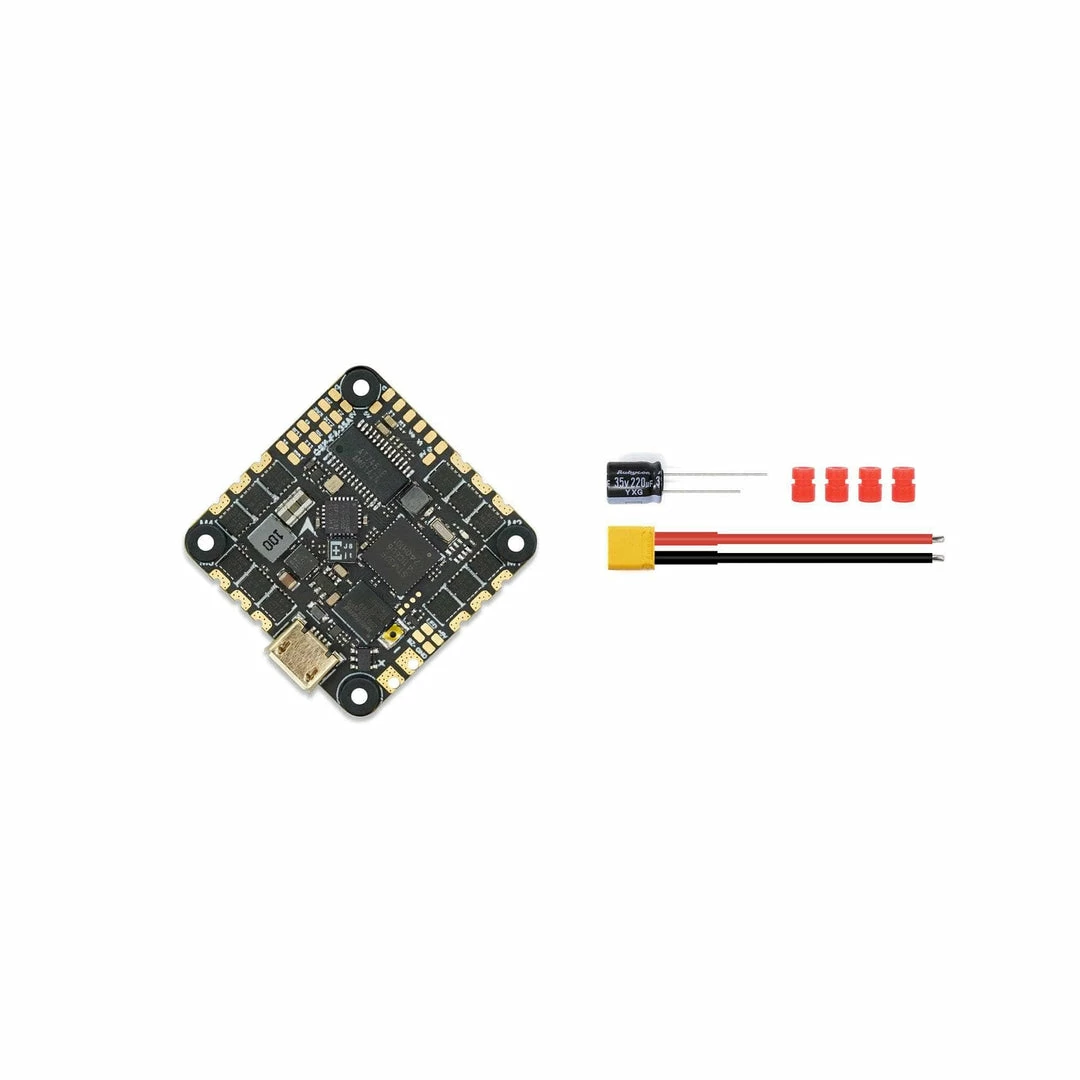

Includes

• 1 x GEP-F4-35A-AIO
• 1 x XT30-7CM-18AWG cables
• 1 x 35V220UF capacitance
• 8 x M2*6.5mm Damping rings
