Budget ⌛ GEPRC Phantom BNF Micro Quad – FrSky XM+ New 👍

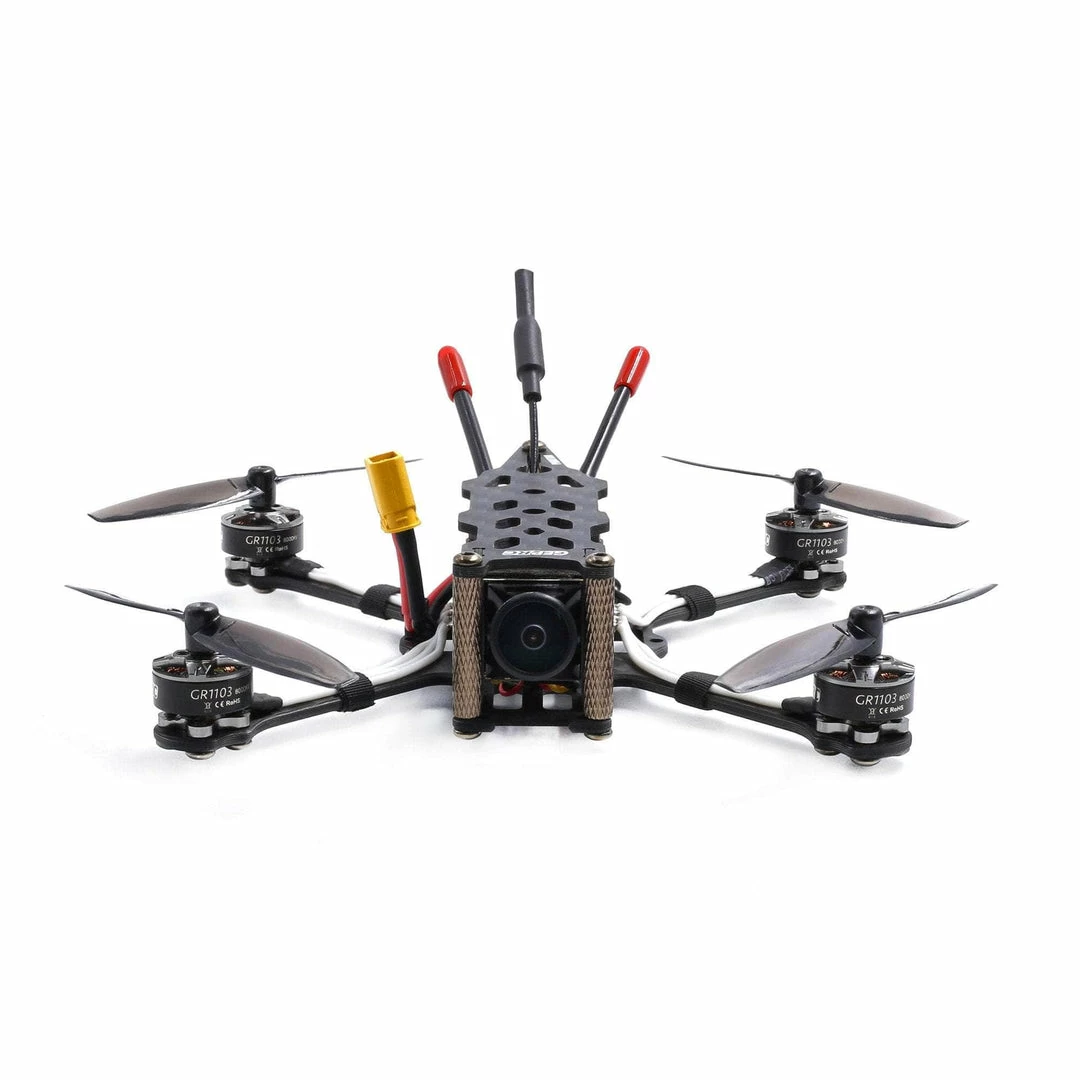

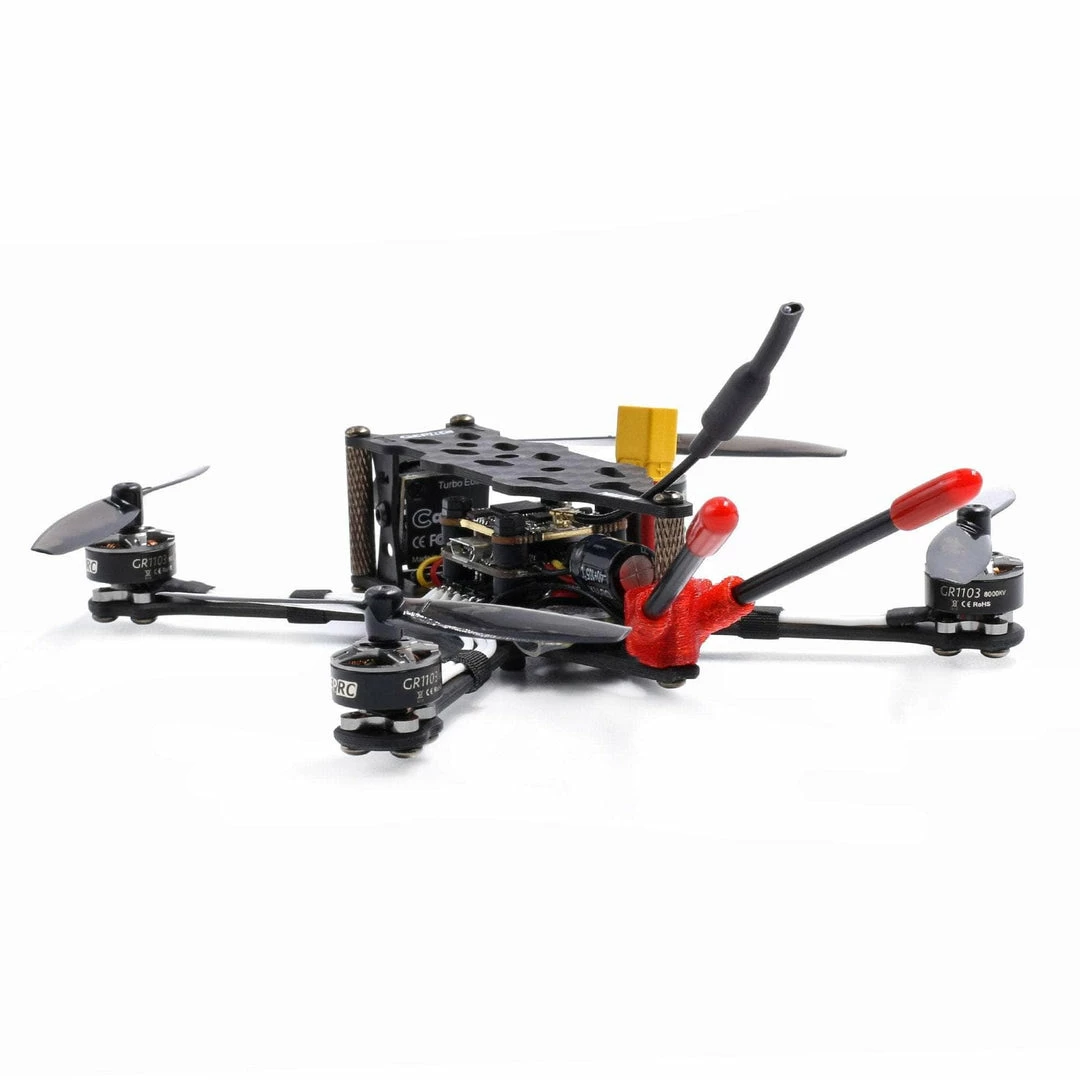

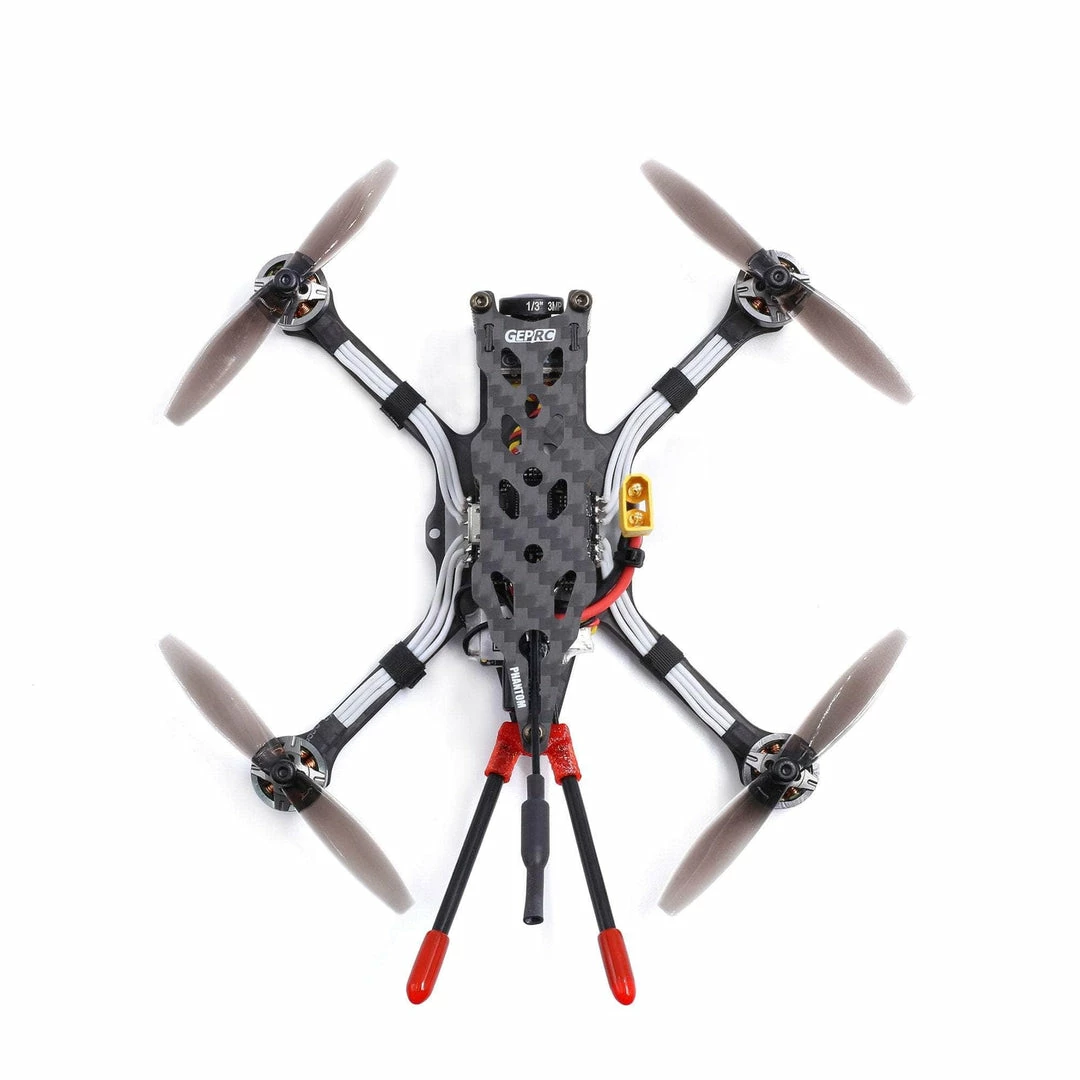

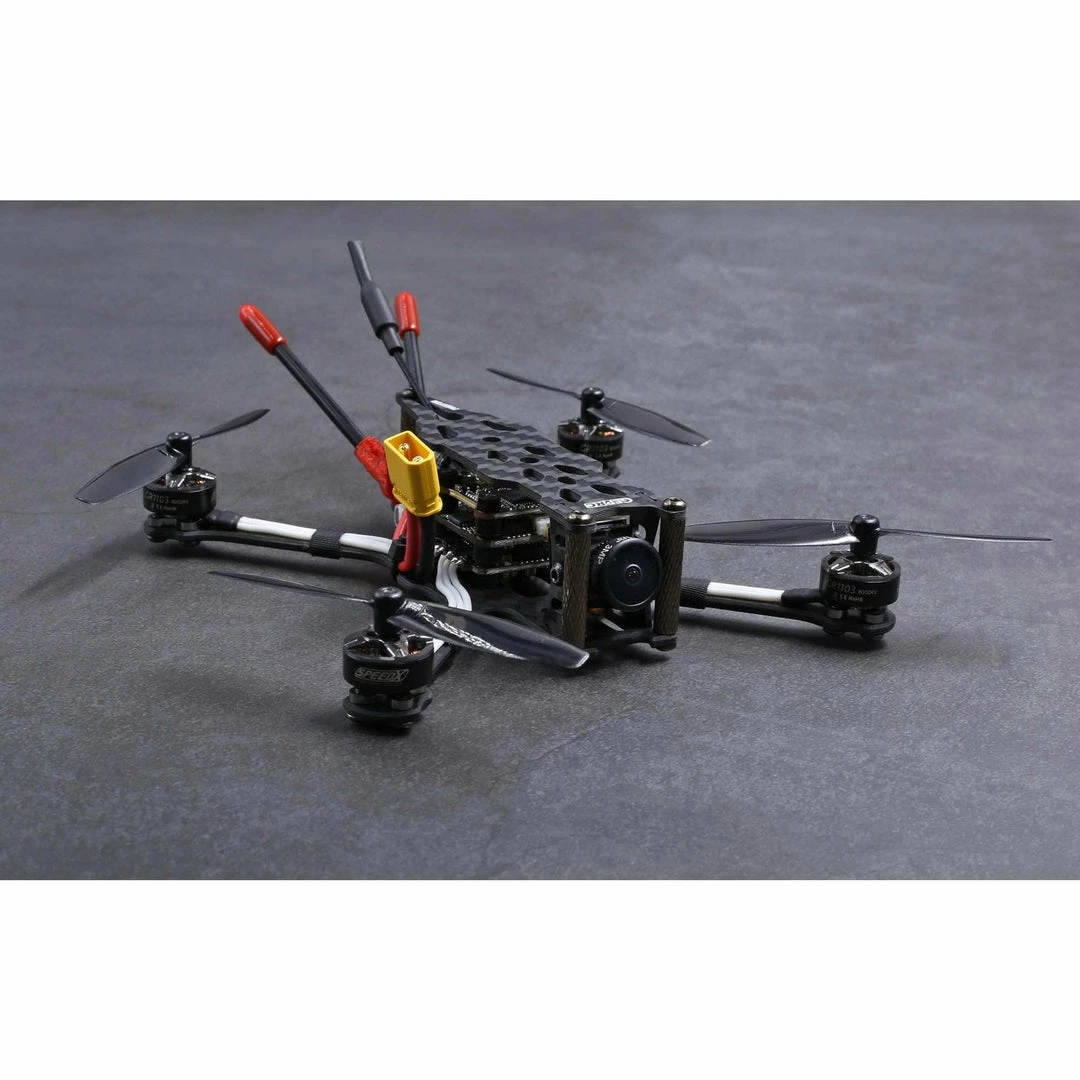

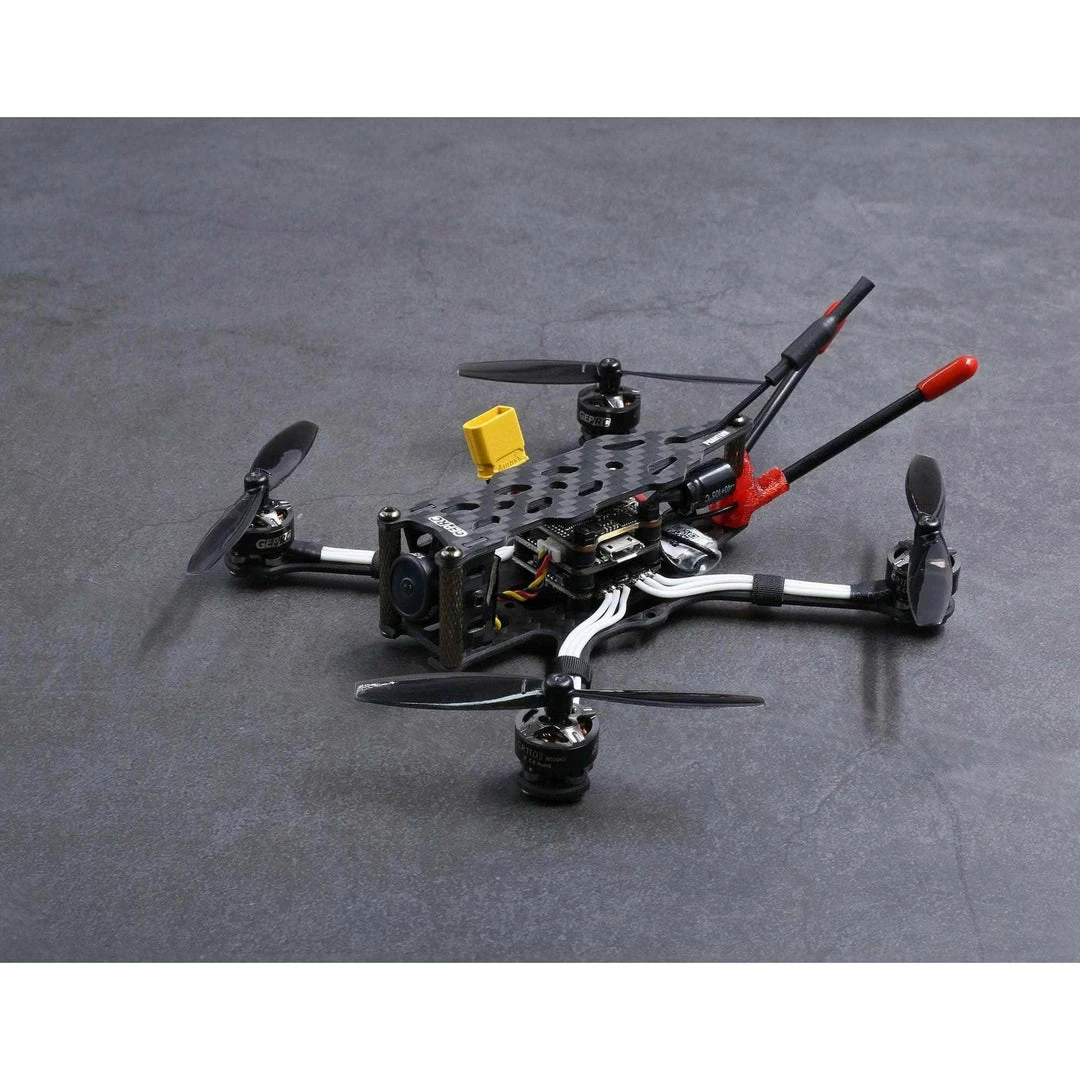

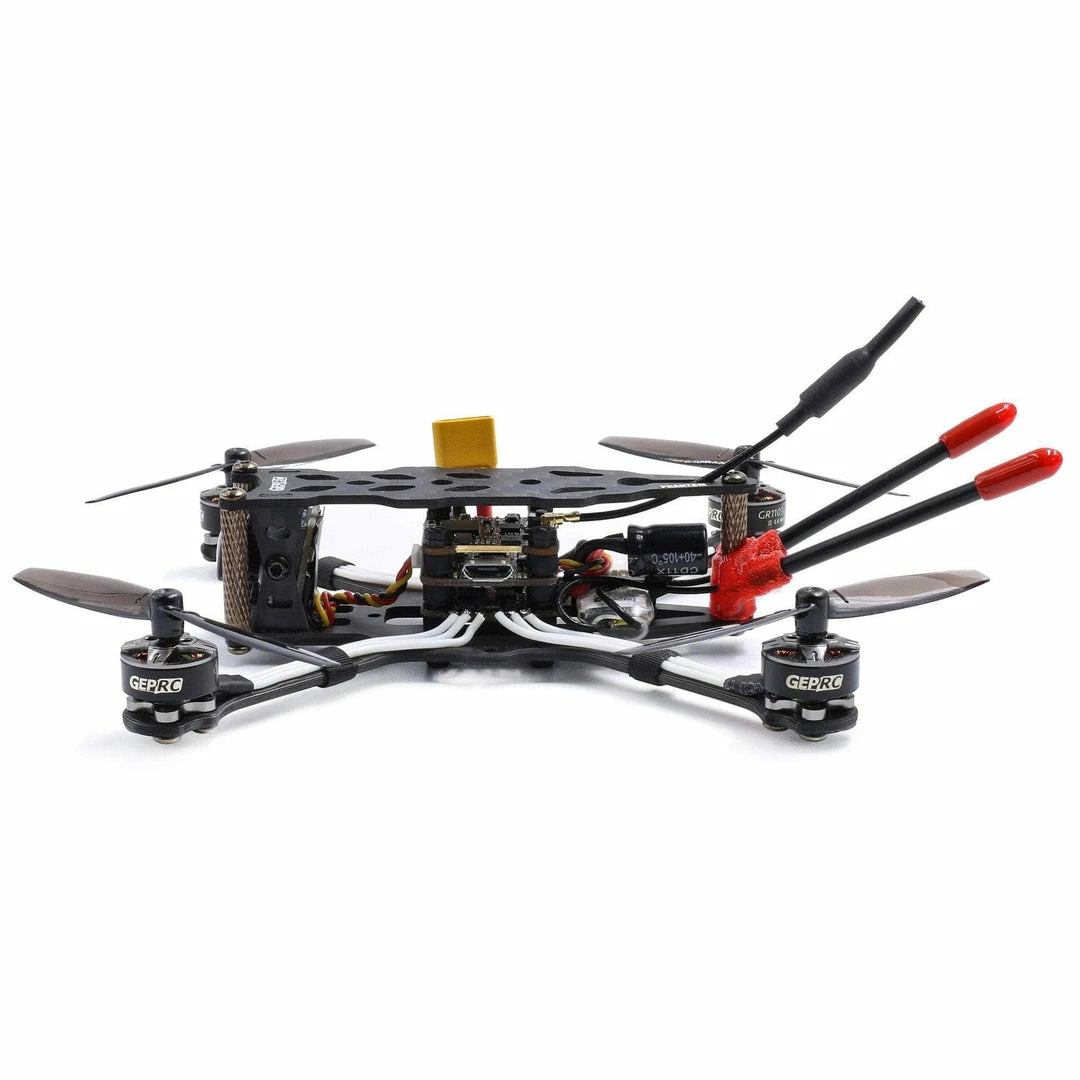

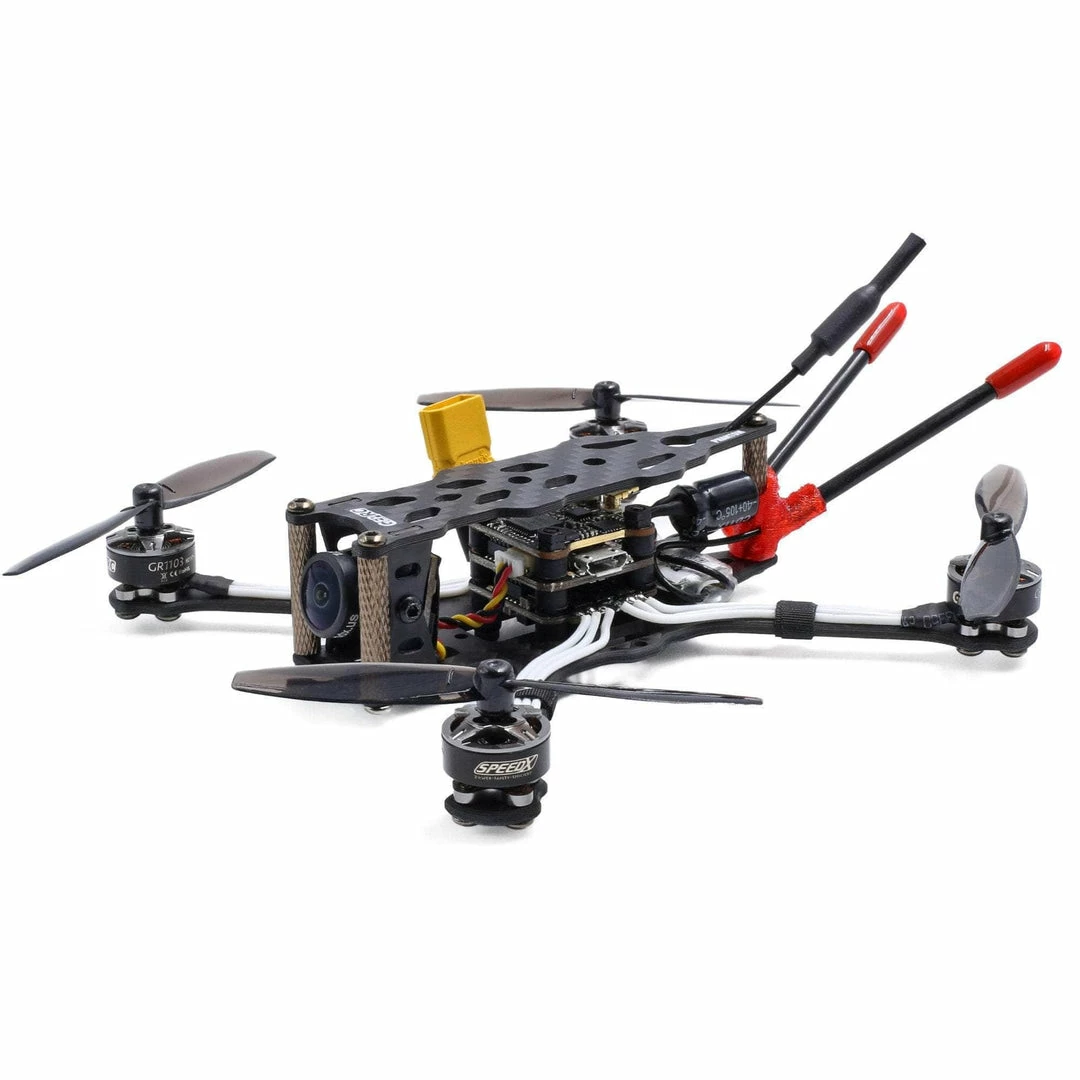

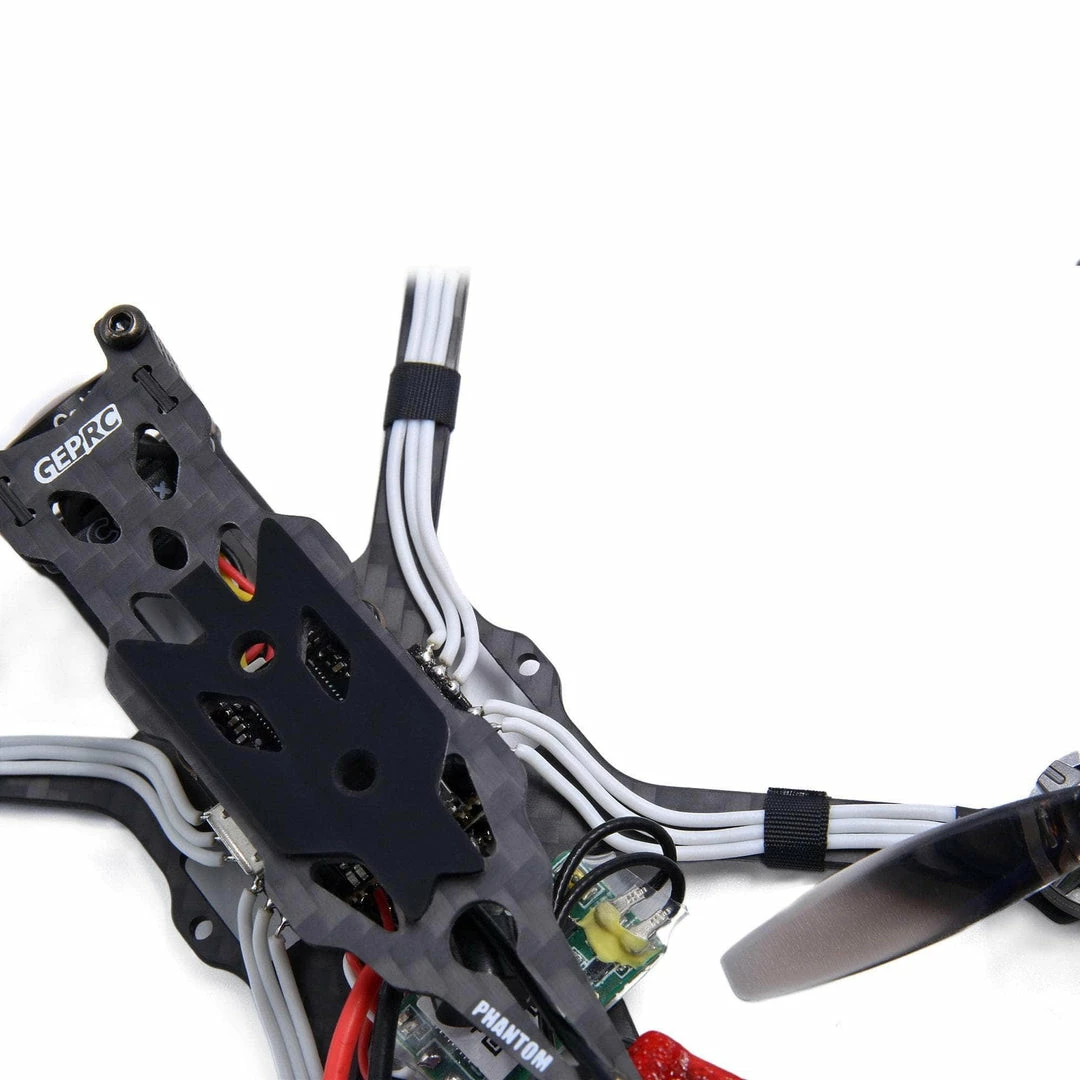

PHANTOM is a fantastic micro freestyle quad designed around 2.5″ props, GR1103 8000Kv motors, and 3S 300mAh batteries. The flight experience is like a 5″ quad, making it an excellent freestyle trainer.

We recommend the following RDQ Series LiPos for the Phantom:

• 2S 300mAh 70C LiHV
• 2S 350mAh 50C LiHV
• 2S 450mAh 70C LiHV
• 3S 300mAh 45C LiHV
• 3S 350mAh 50C LiHV

Check out our wide range of pre-built quads, and all our GEPRC products!

Specifications

• Name: PHANTOM
• FC:STM32F411
• ESC:12A(BLheli_S)

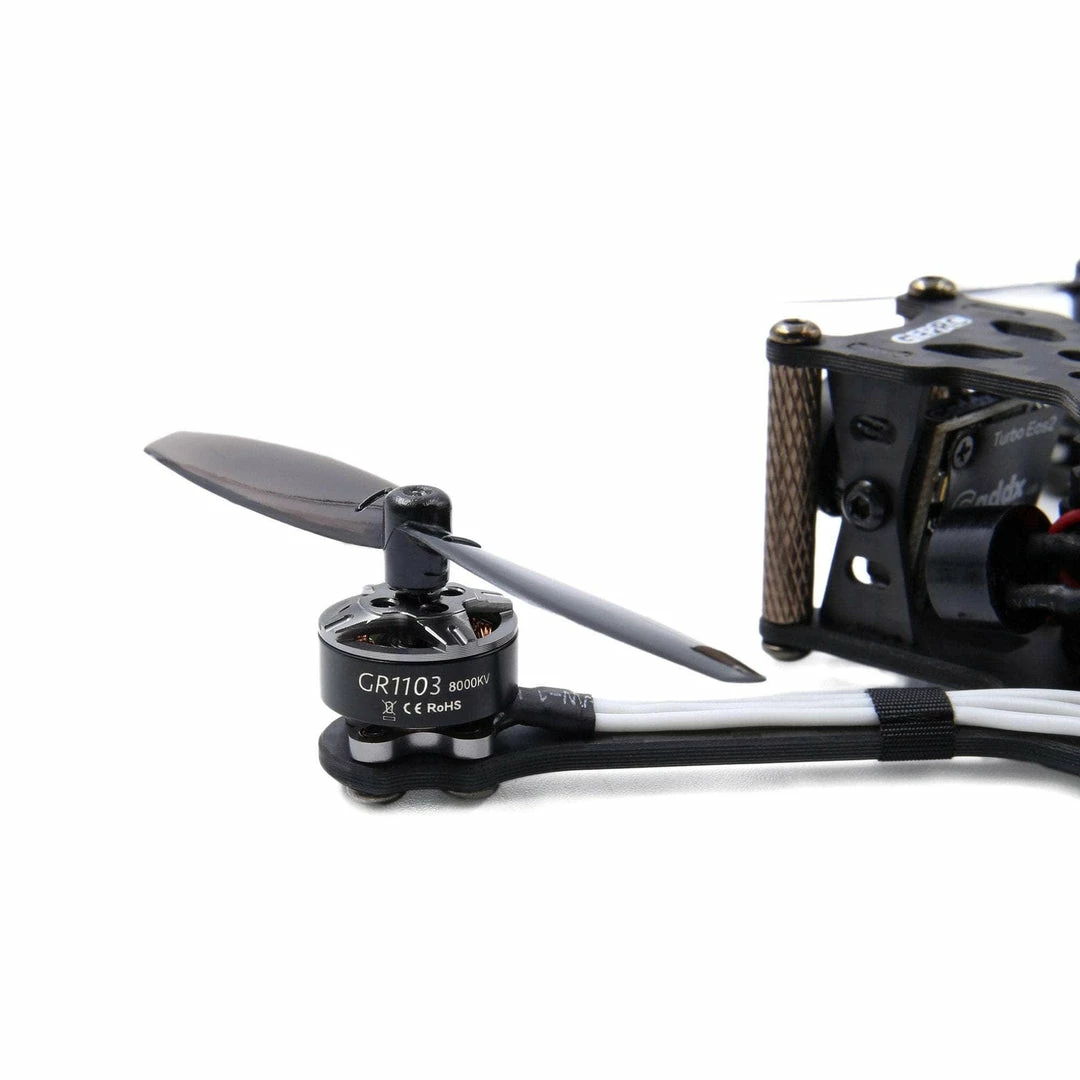

• Motor: GEPRC GEP-GR1103 8000KV(3S 300mAh) or 5500KV(4S 300-450mAh)
• Wheelbase: 125mm
• Propeller: 65mm or 2.5inch
• VTX:5.8g 200mW

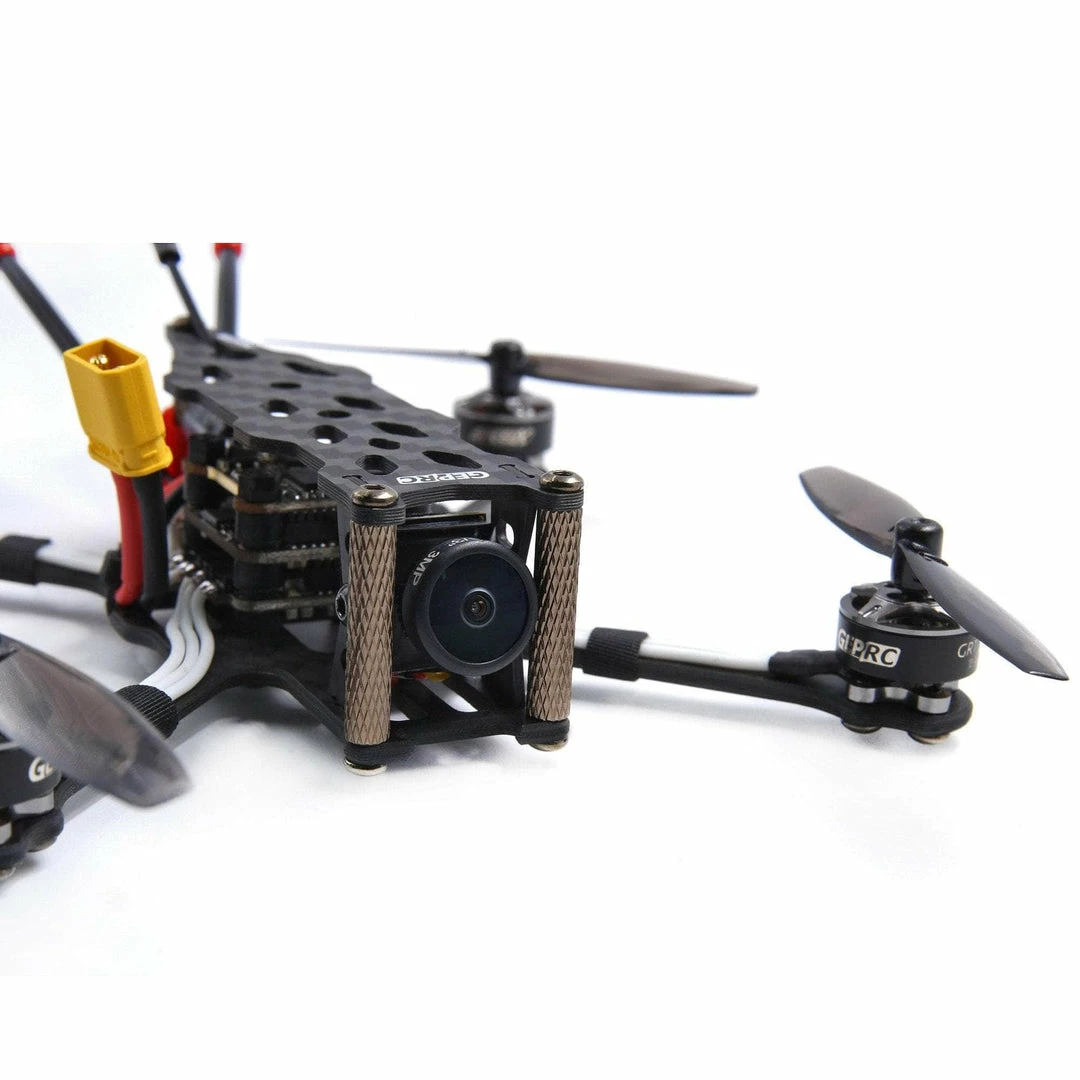

• Camera:Caddx EOS2
• Weight: 51g (without battery)

STABLE F411 Flight Controller

• MCU: STM32F411
• IMU: MPU6000 gyro/accelerometer (SPI)
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC Output: 5V@2A
• Size: 21mm*21mm
• Mounting holes: 16mm*16mm
• Integrated LC Filter
• Input voltage 2-4S LIPO
• Firmware target: MATEKF411
• Weight: 2.5g

STABLE F411 BLheli_S 4IN1 12A ESC

• MCU: BB21F16G
• Continuous current: 12A
• Input voltage : 2-4S LIPO
• ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
• Size: 23mm*21mm
• Mounting hole 16*16mm
• Firmware target: Blheli_S G_H_30
• Current meter: 210
• Weight: 2.7g

STABLE F411 VTX 5.8G 200mW

• Power : PIT/25/100/200mW
• Antenna interface : IPEX (UFL)
• Telemetry: IRC Tramp
• Size: 17mm*27mm
• Mounting holes: 16*16mm
• Integrated LC Filter
• Weight: 1.6g

Includes

• 1x GEPRC Phantom BNF Micro Quad – FrSky XM+
