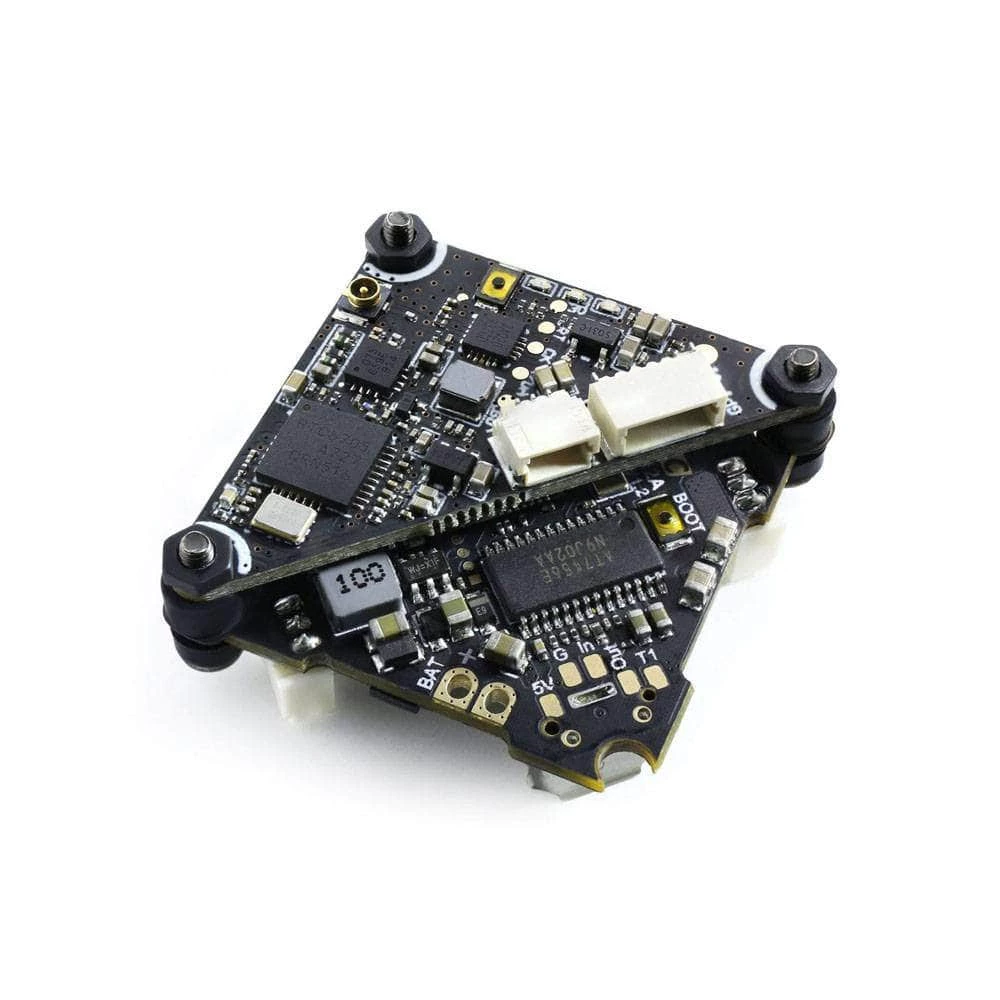

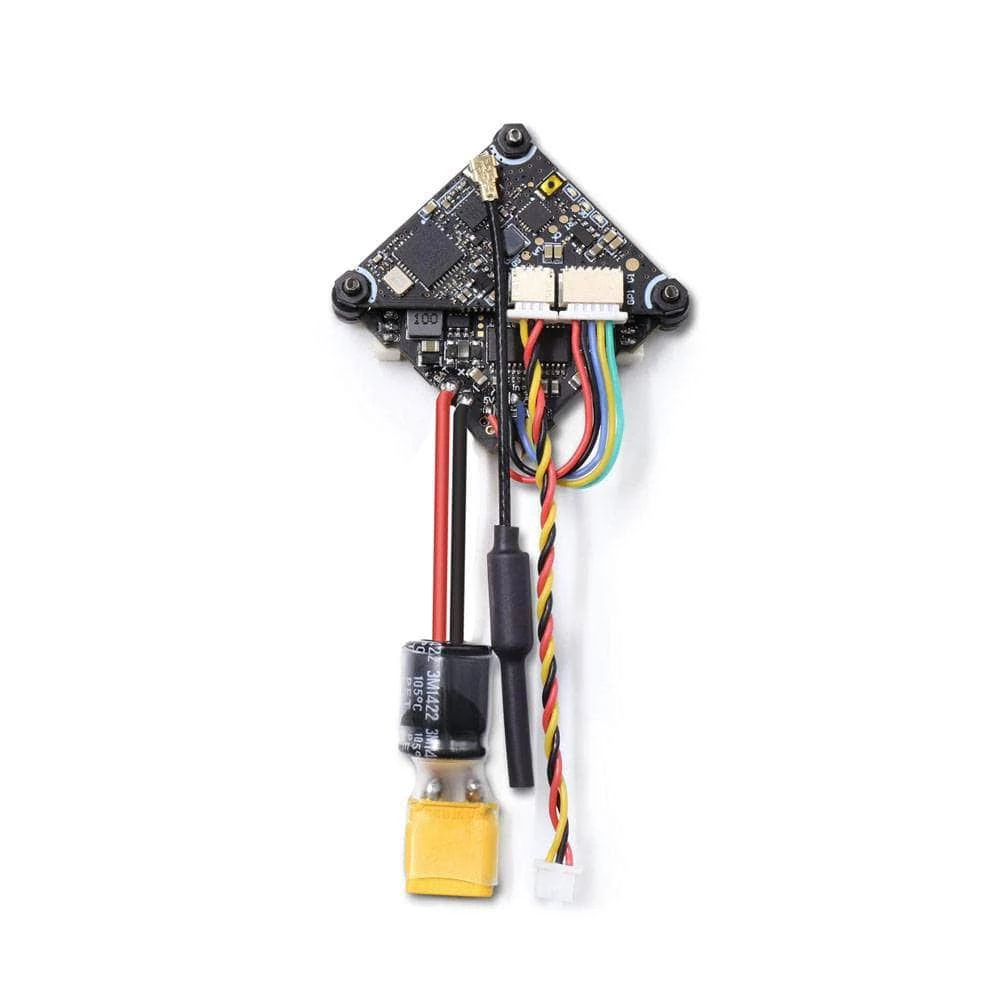

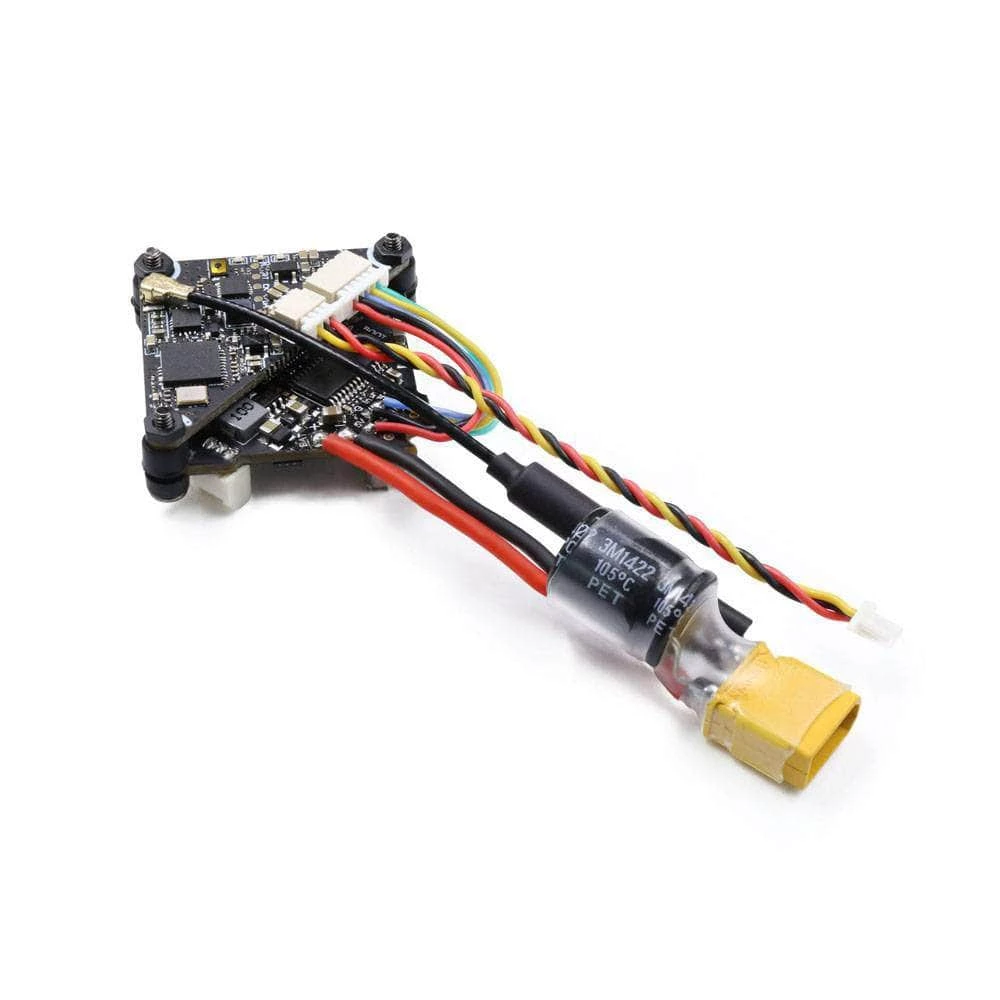

Coupon 💯 GEPRC Stable F411 2-4S F4 AIO Flight Controller W/ 12A 32bit 4in1 ESC 🔔

After 6 months of R&D, the team at GEPRC gives us the new, high-performance toothpick/whoop stack, the GEPRC F411 12A All-in-one Flight Controller. This toothpick/ whoop stack supports 4S batteries and works great with 1103-1105 motors! It features the BMI270/42688 gyroscope, OSD adjustable parameters, and a 200mW VTX transmission, which is specifically designed for whoop and toothpick racks. A very convenient stack that is lightweight, produces stable signals, and clean graphics, and is perfect for indoor!

Check out all our whoop flight controllers, and our GEPRC products!

Specifications

GEP-12A-F4 Flight Controller

• Model Name: GEP-12A-F4
• MCU: STM32F411
• IMU: BMI270/42688
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro: NO
• BEC Output: 5V@1A
• Integrated LC Filter
• Firmware target: GEPRCF411
• Size: 28.5×28.5mm board, 25.5mm mounting holes (M2)
• Installing Hole: 25.5×25.5mm, M2
• ESC MCU: BB21F16G
• Continuous current: 12A
• Input: 2-4s lipo
• Supports Dshot600, Oneshot, Multishot
• Current meter: 210
• Target: G_H_30

VTX Specifications

• Model Name: GEP-VTX200-Whoop
• Item name: 25~200mw 48CH VTX FPV Transmitter
• Output power: Pit/25/100/200mw switchable
• Channels: 48CH
• Input voltage: 4.5V – 5.3V
• Current consumption: 300mA(type)
• Antenna: RG178 antenna U.FL interface
• Frequency: 5.8GHz 5 bands 48 channels With Raceband
• Video Format: PAL/NTSC
• Control protocol：IRC Tramp
• Weight: 2g without antenna

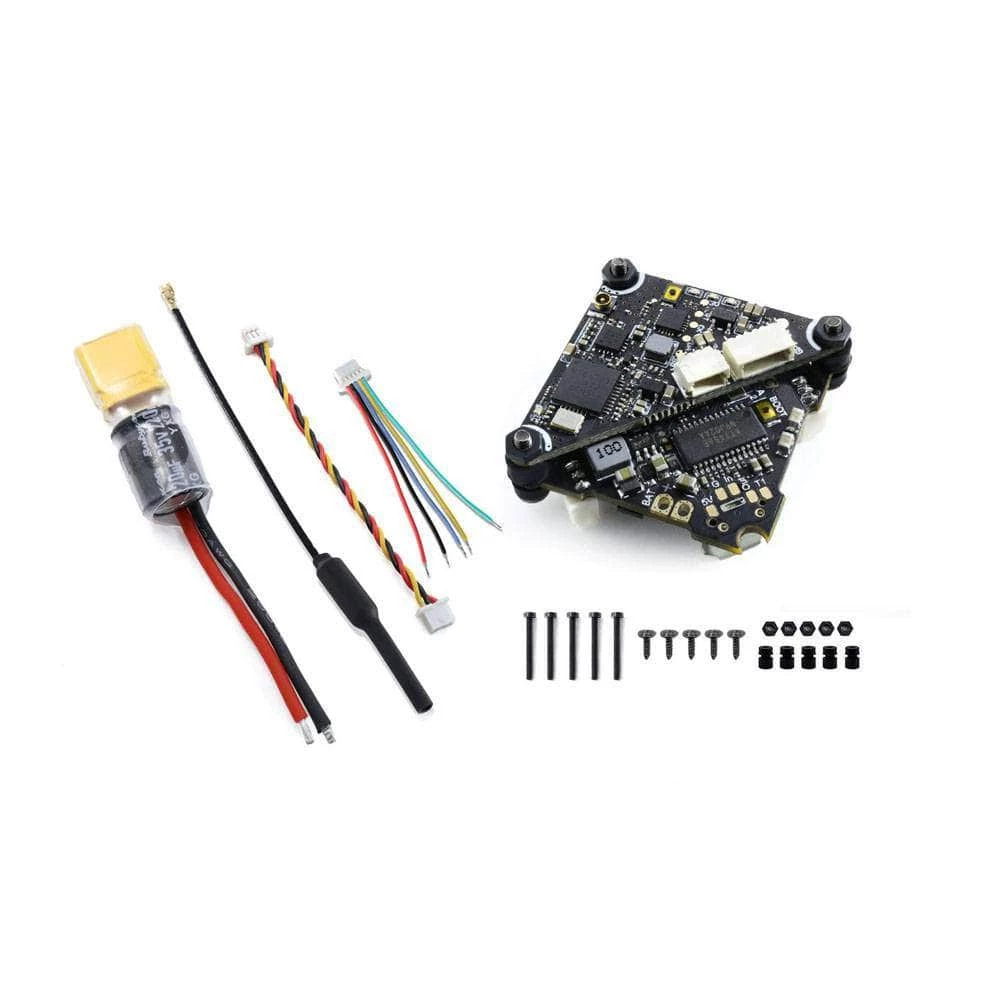

Includes

• 1 x GEP-12A-F4
• 1 x GEP-VTX200-Whoop
• 1 x Power cable
• 8 x screw
• 4 x Soft silicone
