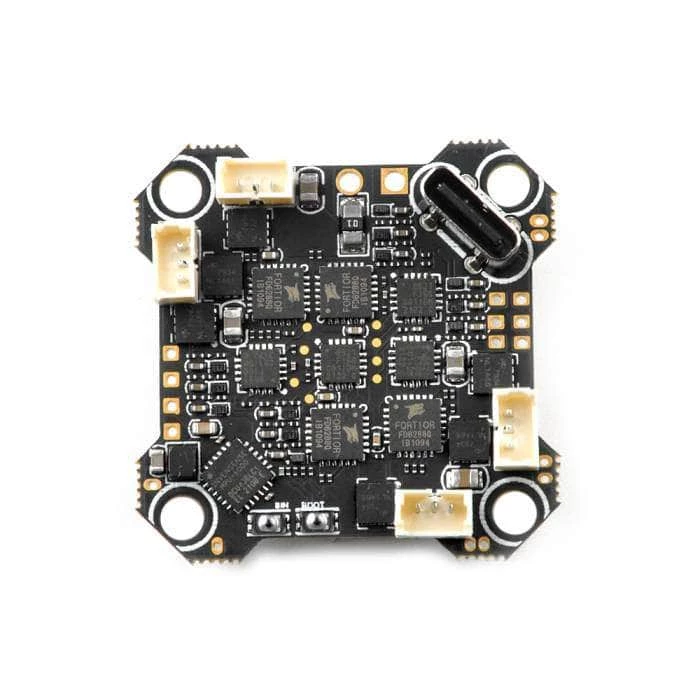

The Happymodel ELRS X2 AIO Flight Controller comes with an integrated SPI 2.4GHz ExpressLRS receiver and 12A Blheli_S ESC which supports 2-4S. Bigger Mosfet supports high to 12A currents and would be better for a 2-4S toothpick drone or long-range FPV drone. The 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate, and low latency. Featuring an MPU 6000 SPI sensor and OSD, this board is the perfect addition to your FPV build.
Browse the rest of our Whoop AIO Boards and all of our Happy Model products!
Specifications
F405 FC
- Input Voltage: 2-4S
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Gyro: MPU6000 SPI
- OSD: Yes
- Uarts: R1/T1
- ESC Connections: M1-M4 plugs
- Firmware: CRAZYBEEF4SX1280
- BEC: 5V 1A
- Buzzer: Buz- and Buz+ pads
- Barometer: No
- Mounting Pattern: 25x25mm
- Weight: 5.1g
4-in-1 ESC
- Input Voltage: 2-4S
- Max. Continuous Current: 12A
- Max. Burst Current: 15A (5 seconds)
- MCU: EFM8BB21
- Firmware: F_H_40_REV16_8.HEX (BLHeliSuite)
- BEC: 5V 1A
- Default protocol: DSHOT150/DSHOT300/DSHOT600
ELRS SPI
- Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
- RF Frequency: 2.4GHz
- Antenna: On board SMD ceramic antenna
- Telemetry output Power: <12dBm
- Receiver protocol: SPI ExpressLRS

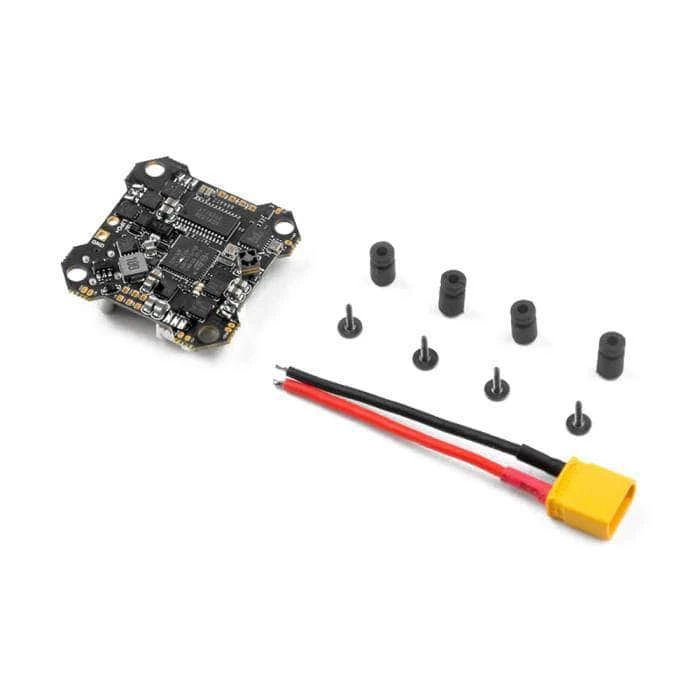

Includes
- 1x Happymodel X2 F405 2-4S 12A Whoop Flight Controller w/ ELRS RX SPI
- 1x Amass XT30U-M Connector
- 1x Hardware Set
- 2x 20AWG Wire
- 4x Grommets
