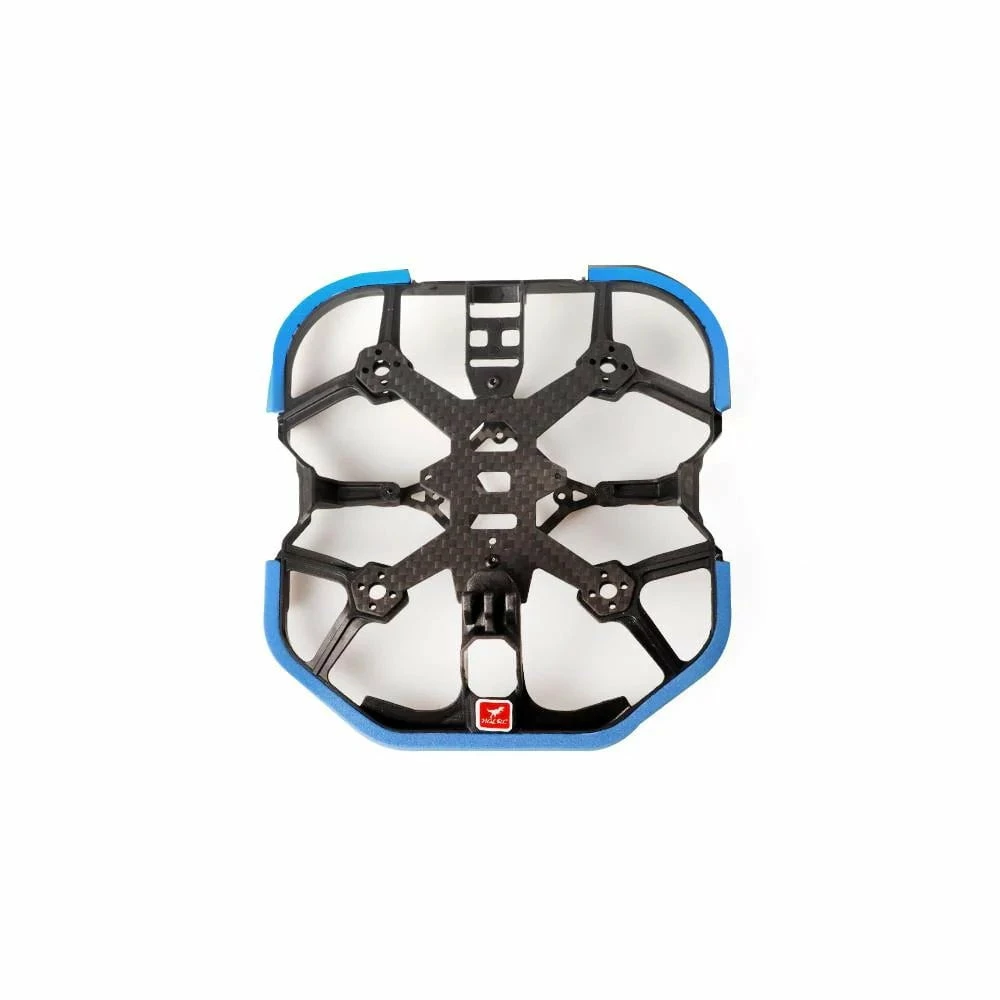

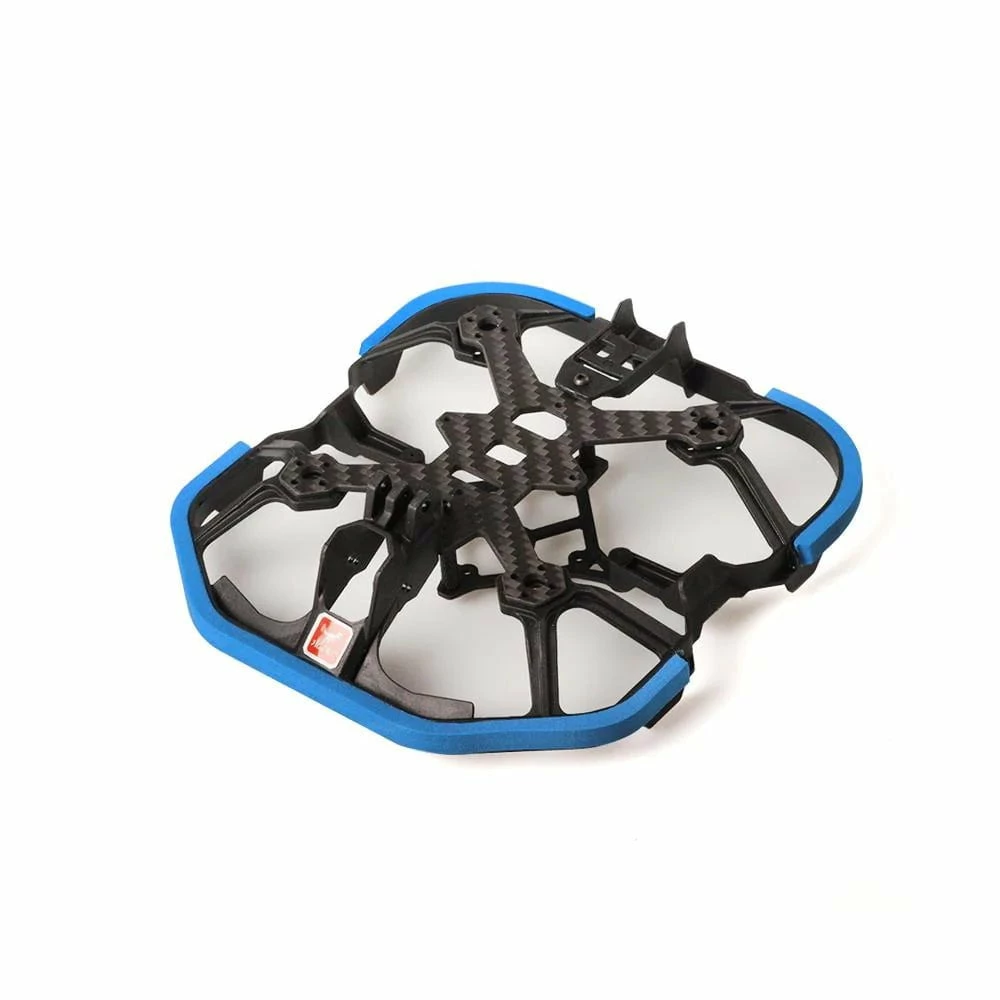

Promo 🌟 HGLRC KT20 2″ Cinewhoop Frame Kit 🌟

The HGLRC KT20 is a frame to try, 2″ pusher configuration makes for a fun snappy whoop while still retaining the structure and safety of a standard whoop.

Check out all our 2-3″ frames, as well as our whole HGLRC product line!

Specifications

• Dimensions: 130x138mm
• Frame Style: Cinewhoop
• Top plate: 2.mm
• Bottom plate: 1.5mm
• Arm Plate: 3.3mm
• Stack Size: 25.5×25.5mm
• Motor Mount: 9mm
• Camera Mount: 14mm

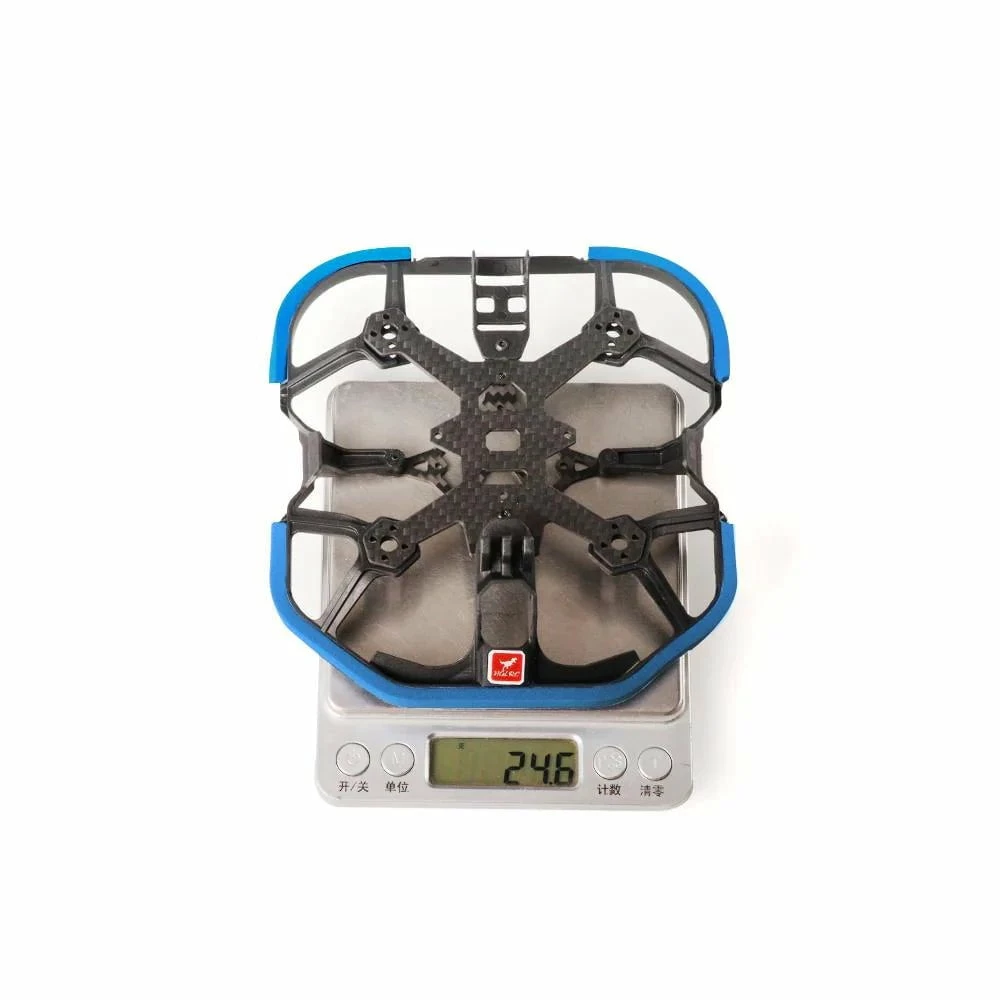

• Weight: 24.6g (without the ducts)

Includes

• 1x 2mm top plate

• 1x 1.5mm bottom plate

• 1x KT20 2-inch frame

• 2x Countersunk Hexagon Socket M2x6 Self-Tapping Screws

• 2x Countersunk hexagon socket M2x7 304 stainless steel screw

• 2x Hexagon socket head tapping screws M2x8

• 2x Hexagon socket head M2x6 black nickel plated screws

• 2x M2x22x4mm outer diameter reticulated aluminum column

• 1x W554B LED strip (1pc)

• 1x KT20 front bumper EVA cotton (one set of blue, yellow, and black)

• 2x KT20 rear bumper EVA cotton (one set each for blue, yellow, and black)

• 3x 3M double-sided tape (3 sets of double-sided tape for front and rear bars)

• 1x Silicone cable length 110mm, single head PH1.0-3P Color: yellow, red and
• black (LED cable)

• 10x cable tie 2x120mm nylon cable tie (root)

• 5x Round head hexagon socket M2x10 black nickel plated screws

• 5x Round head hexagon socket M2x18 black nickel plated screws

• 8x M2x6.6 shock-absorbing ball

• 6x Anti-loose self-locking M2 nut

• 5x Black O-shaped silicone outer diameter 7×2 inner diameter 3

• 3x Round head hexagon socket M2x3 black nickel plated screws

• 5x Cup head hexagon socket M1.6×8 black nickel plated screw

• 1x KT20 number sticker

• 2x battery tie, size: 10x150mm

• 1x KT20 battery non-slip mat

• 1x Round head hexagon socket M3x20 screw

• 1x M3 nut

• 1x B4 certificate label

• 1x HGLRC Sticker

• 1x KT20 Frame Installation Instructions
