New 💯 HOBBYPORTER RadioMaster TX16S MKII MAX Pro MCK Edition EdgeTX RC Transmitter W/ AG01 Gimbals – ELRS New 🔥

The best just got better! Check out the huge list of improvements over the TX16S Max below!

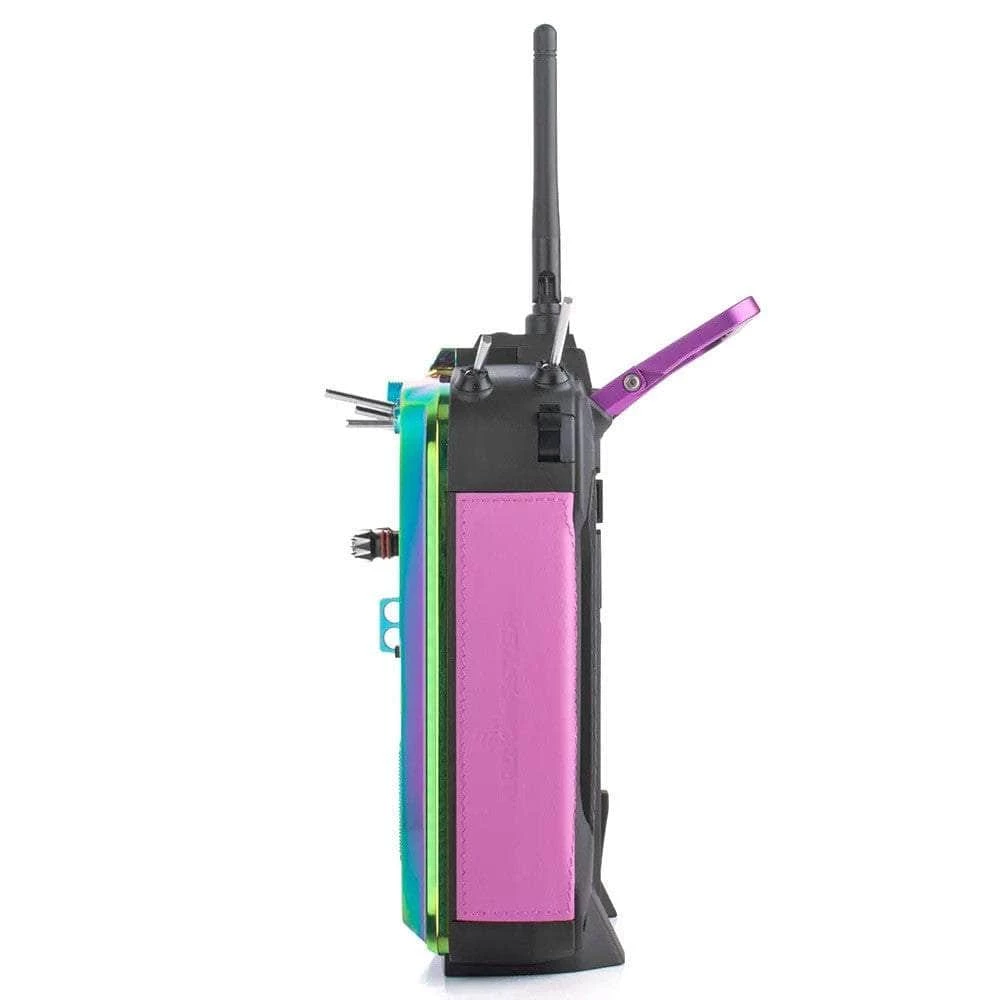

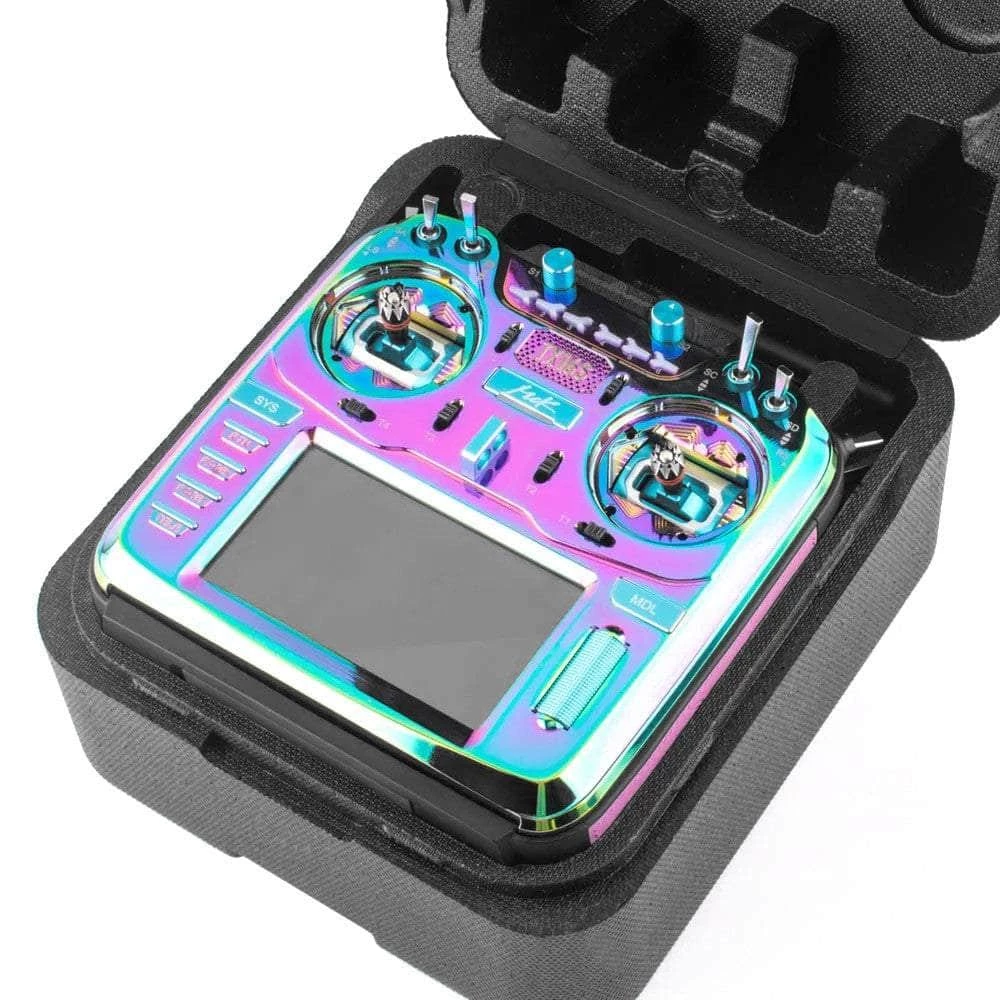

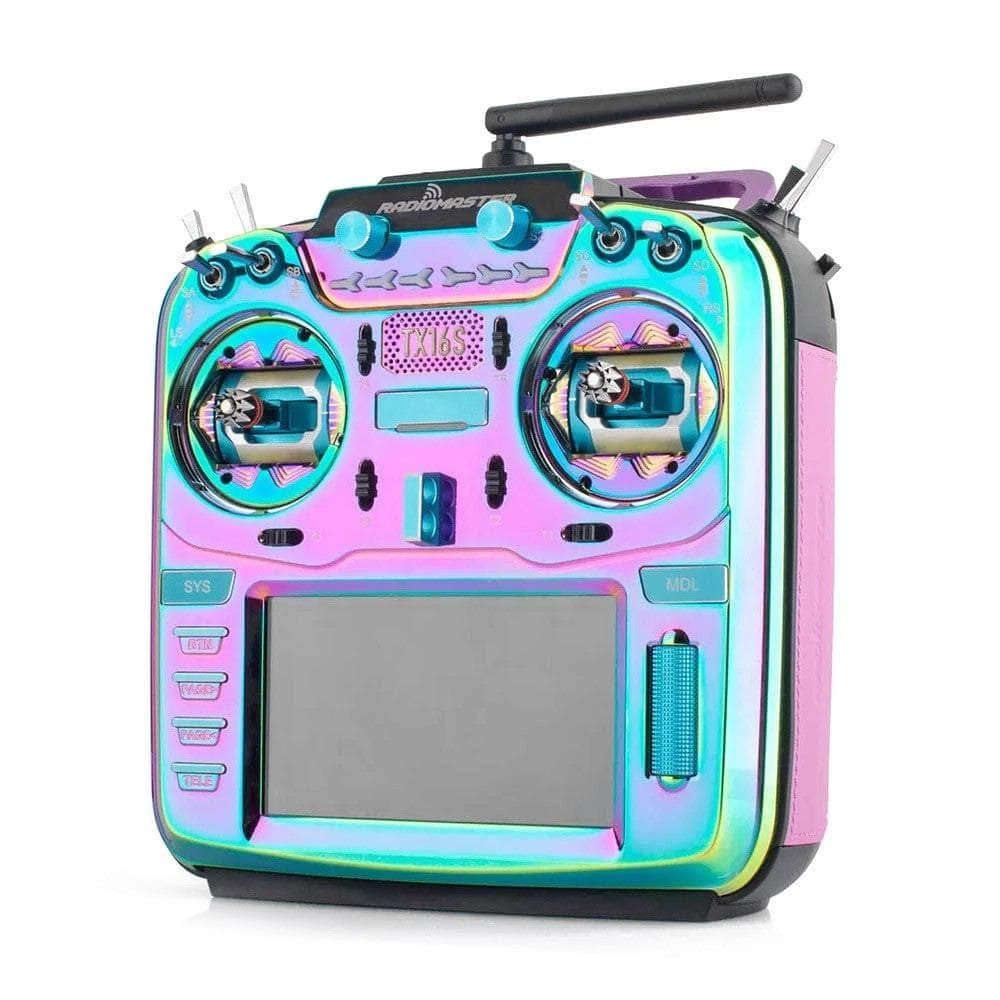

This special edition TX comes equipped with AG01 Hall Gimbals, a full CNC faceplate, an internal ELRS RF module, all wrapped in an insane MCK color scheme!

We also carry the TX16S MKII MAX Pro Joshua Bardwell Edition with V4.0 Hall Gimbals!

Check out our RadioMaster collection and all our RC transmitters!

Features

• Improved internal circuity and optimized power supply.
• New charge circuitry with integrated reverse-polarity protection.
• Optimized charge IC now allows up to 2.2A internal USB-C charge current.
• Rear mounted audio jack provided headphone output.
• V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
• Optional high/low rear grips included for improved ergonomics.
• Improved S1/S2 knobs with clear centre-detents.
• Improved LS/RS Sliders with smoother feel and better centre-detents.
• Redesigned battery cover for improved battery access.
• Retooled body shell with improved fit and finish.
• Trainer socket changed to standard TRS 3.5mm socket.
• Rear DIY Socket added for personalised mods.
• Improved internal plastics for better longevity.
• Available ELRS and 4in1 versions.

Specifications

• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module: Internal ELRS (SX1280)
• Transmitting power: Internal ELRS : Max 250mw (transmitting power is adjustable)
• Antenna gain: 2db (transmit power adjustable)
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Remote control distance:> 2km @ 22dbm
• Radio firmware: EdgeTX
• Module Firmware: ExpressLRS (ELRS)
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
• Gimbal: AG01 CNC Hall sensor
• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade

Includes

• 1x TX16S Mark II Max Radio Controller
• 1x 18650 Tray
• 1x USB-C Cable
• 1x Screen Protector
• 2x Flat Grips
• 2x Raised Grips
• 1x TX16S Key Chain

AG01 Gimbal is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning.
