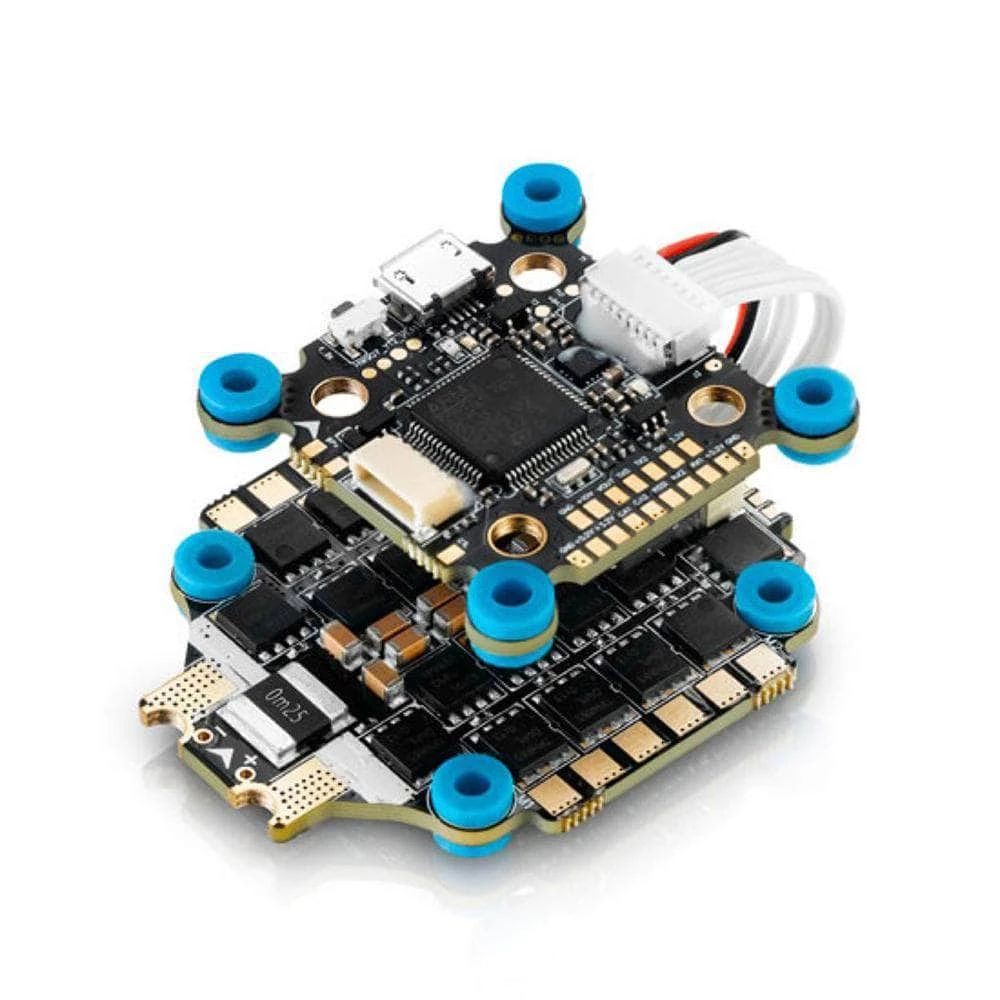

Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 60A ESC this stack is truly something to behold.
Check out all ourย 30×30 stacks & combos, and ourย Hobbywing selection!
Specifications

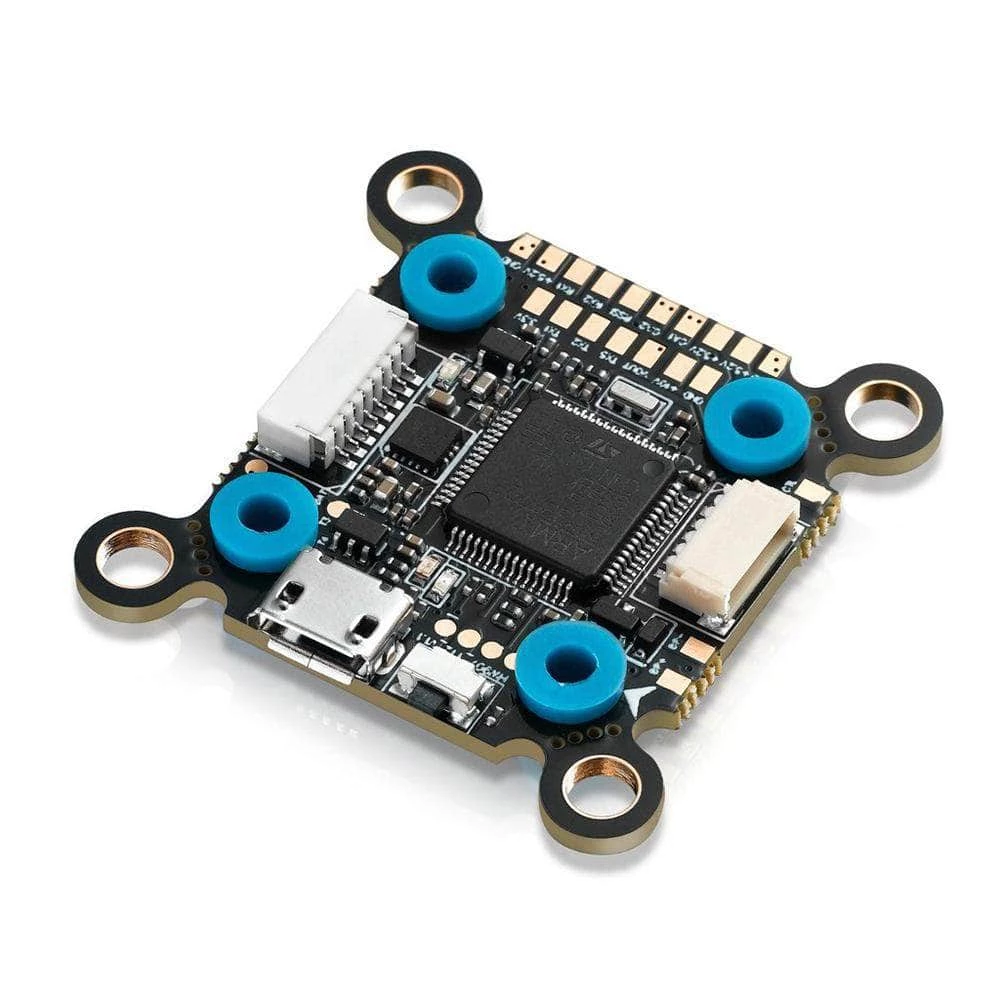

Hobbywing XRotor F7 FC
- MCU:ย STM32F722
- Gyro: ICM20602
- Barometer: No
- OSD: Yes
- Blackbox: Onboard
- UARTS: 4 Sets
- ESC Software: DShot300/600/12000
- ESC Telemetry: Yes
- Led Controller: Yes
- Input Voltage:ย 3-6s Lipo (12.6-25.2V)
- BEC: 5V 2A / 10V 2A
- Mounting: 20x20mm M3 / 30x30mm M3
- Target:ย

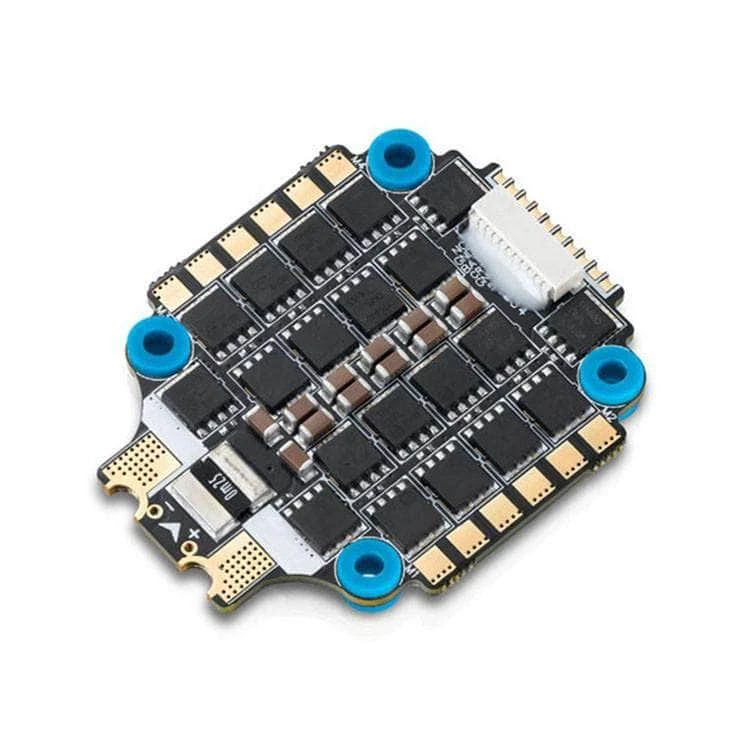

Hobbywing XRotor 60A 32Bit ESC
- LiPo Power input: 3S-6S
- Cont.Current:ย 60Ax4
- Burst Current: 80Ax4
- BEC Output:ย 5V@ 1.5Aย
- Input wires: 12AWG-130mm* (Red/Black)
- Output Wire: No wires but solder tabs
- Connectors:ย (In/Out) XT60 (w/ Wires Soldered on) /no
- Weight / Size: 15.0g / 32.7×18.4×6.2mm
- Mounting holes: 30.5×30.5mm
- Throttle Calibration: Supported
- ESC Programming: BLHeliSuite32
Includes
- 1xย Hobbywing XRotor F7 FC
- 1xย Hobbywing XRotor 60A 32Bit ESC
- 1x Hardware Set
- 1x AMASS XT60 Connector
- 1x Cable Set
