Holybro has come out with one of the most powerful 20×20 stacks currently available. Between the H7 FC and F4 ESC, this stack can do it all!
Check out our other 20×20 stacks, as well as our entire Holybro selection.
Specifications

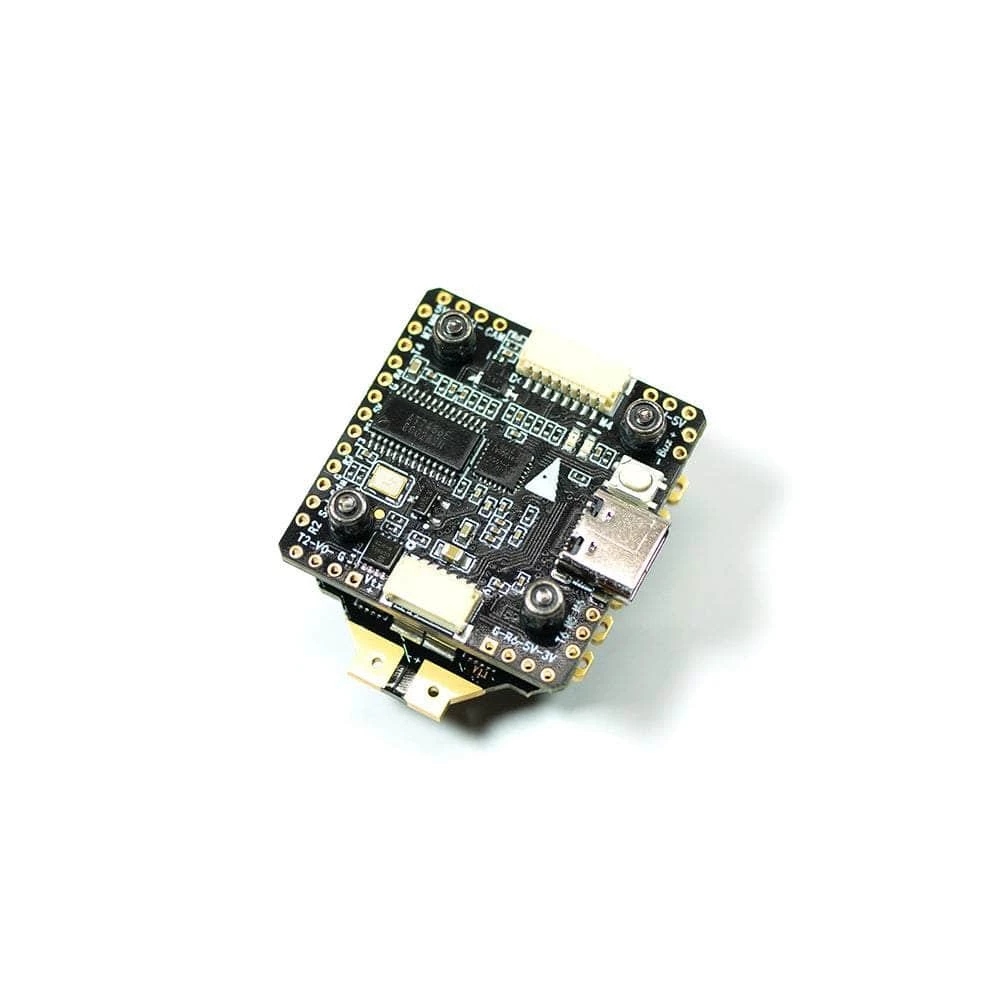

Kakute H7 Mini
- Input Voltage: 2-6S
- MCU: STM32H7
- IMU: BMI270
- OSD: AT7456E
- Uarts: 6
- ESC Connections: 8
- Firmware Target: KAKUTEH7MINI
- BEC: 5v/2A
- Buzzer: Yes
- Barometer: Yes
- Stack Size: 20×20
- Weight: 5.5g

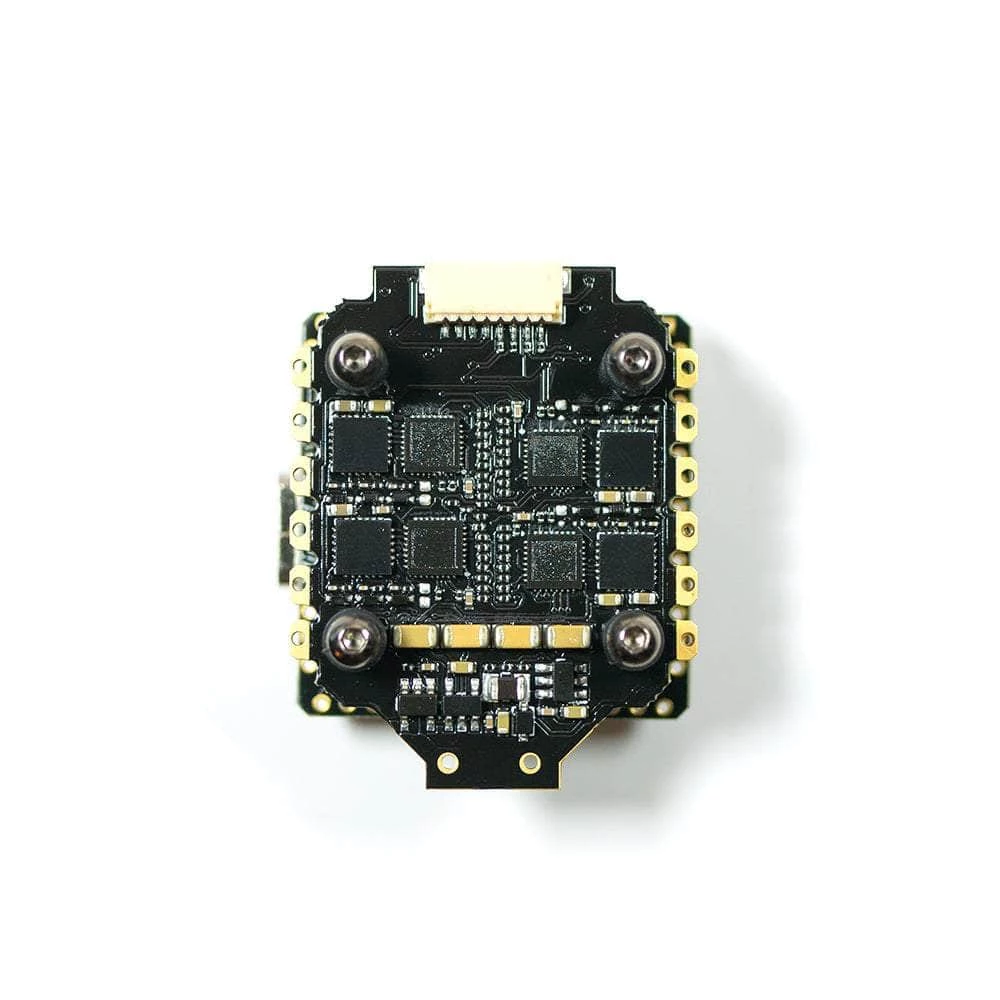

Tekko32 F4 45A ESC
- Input Voltage: 3-6S LiPo
- Max. Continuous Current: 45A
- Max Burst Current: 50A (10sec)
- Firmware: BLheli_32
- BEC: No
- Current Sensor: Yes
- Mounting Dimensions: 20x20mm M3
- Dimensions: 39x30mm
- Weight: 7.2g
Includes
- 1x Holybro Kakute H7 Mini Tekko32 F4 45A 3-6S 20×20 Stack/Combo
