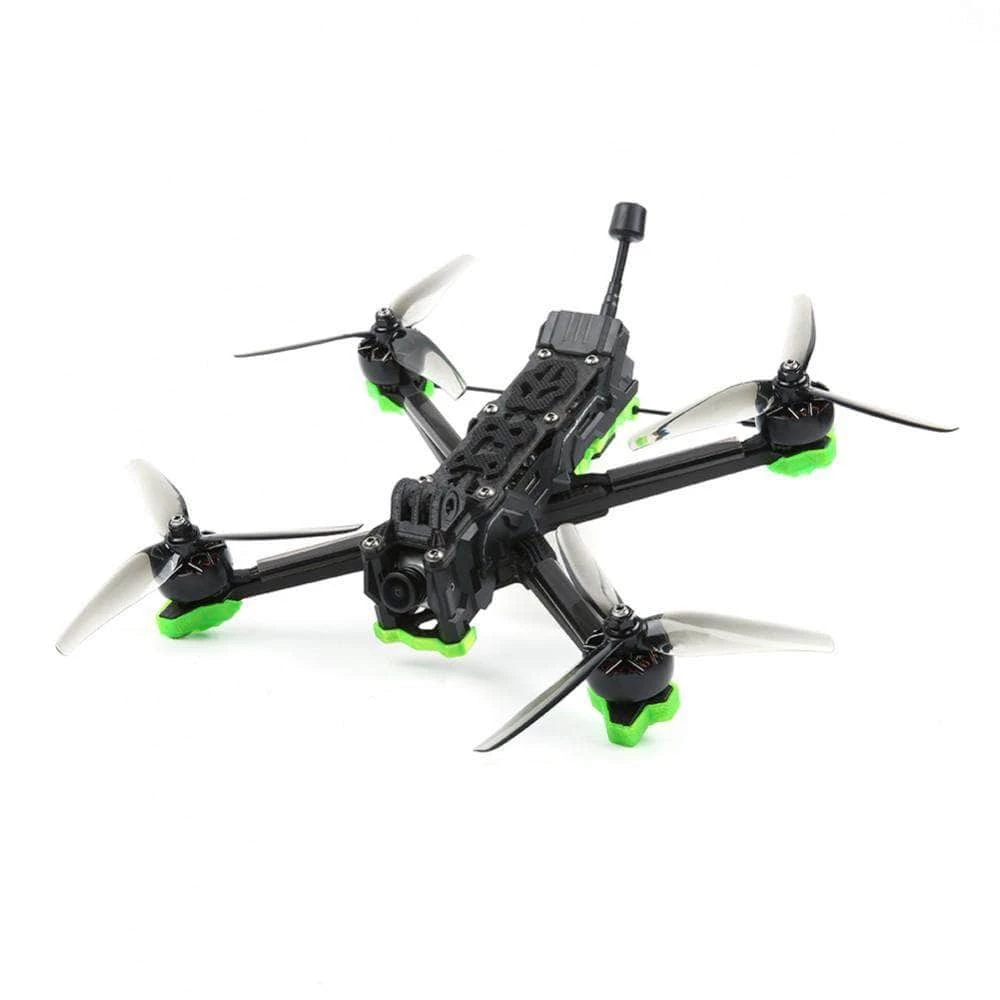

This iFlight BNF Nazgul Evoque F5X HD features the DJI Camera.ย
We also carry theย iFlight BNF Nazgul Evoque F5X HD with Polar Camera.

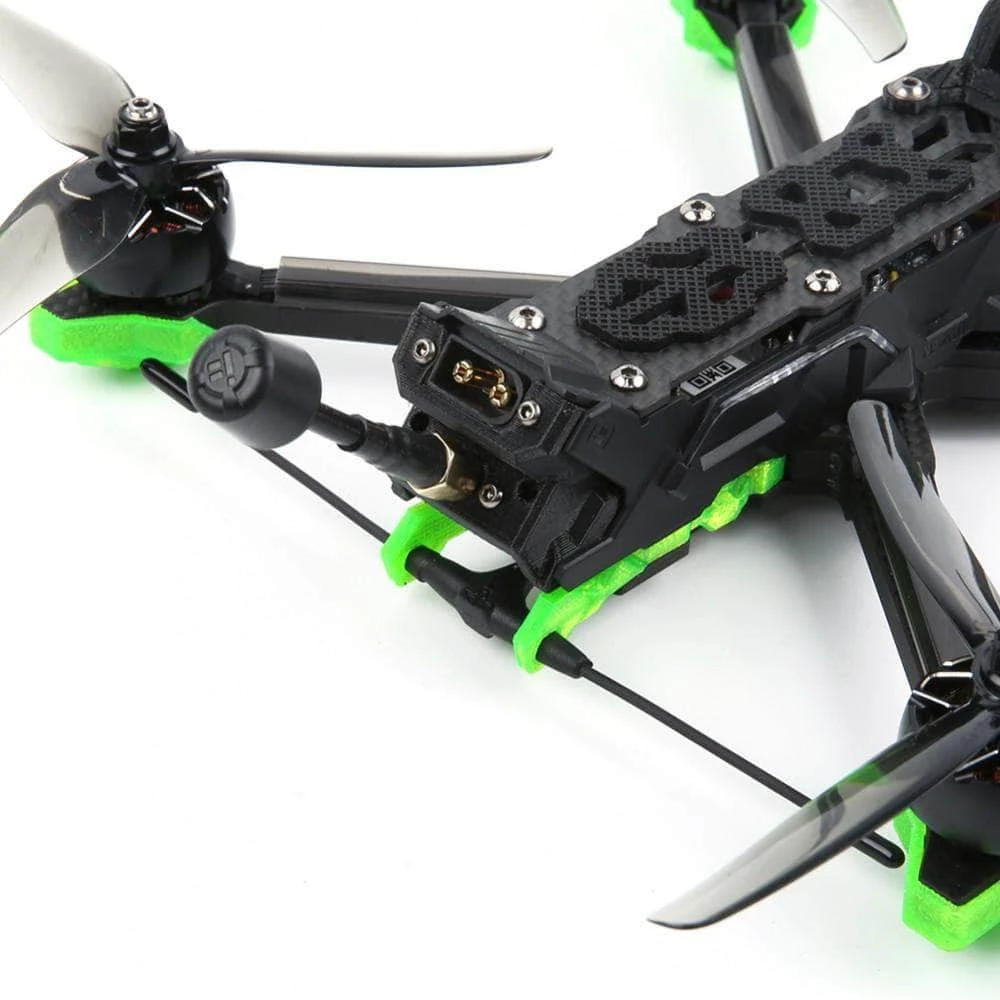

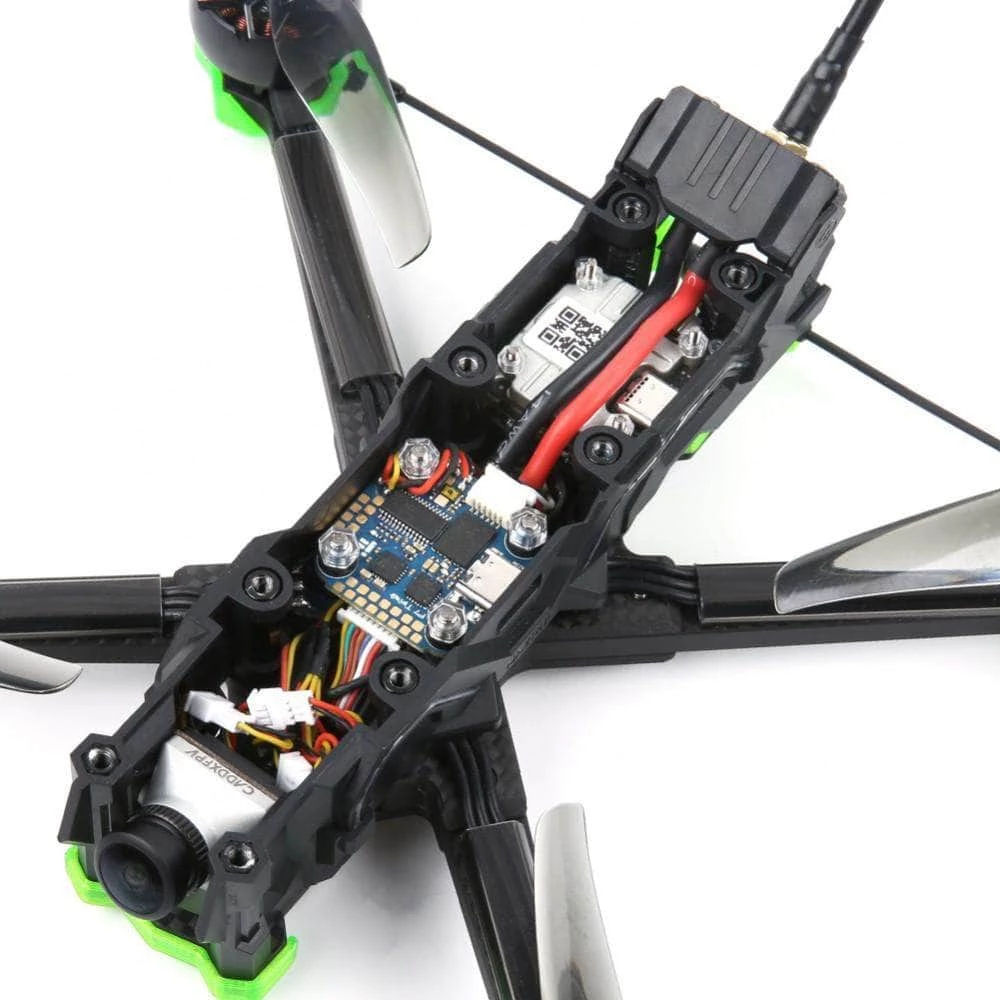

The new iFlight Nazgul Evoque is a true work of art. They have added stack protectors to make sure you never have unwanted debris on your stack. The XT60 connector is mounted to the body, meaning that it cannot shift in flight leading to a cut lead. It also sports built-in LEDs to make sure your drone is always the center of attention.
Check out our otherย pre-built quads, as well as the rest of ourย iFlight selection!
Features
- Lightweight Side Panels – Keep Your Rig Clean
- Secured Integrated XT60 Battery Plug – As Safe, It Can Be
- High-Performance Electronics ย –ย New Blitz Mini Stack

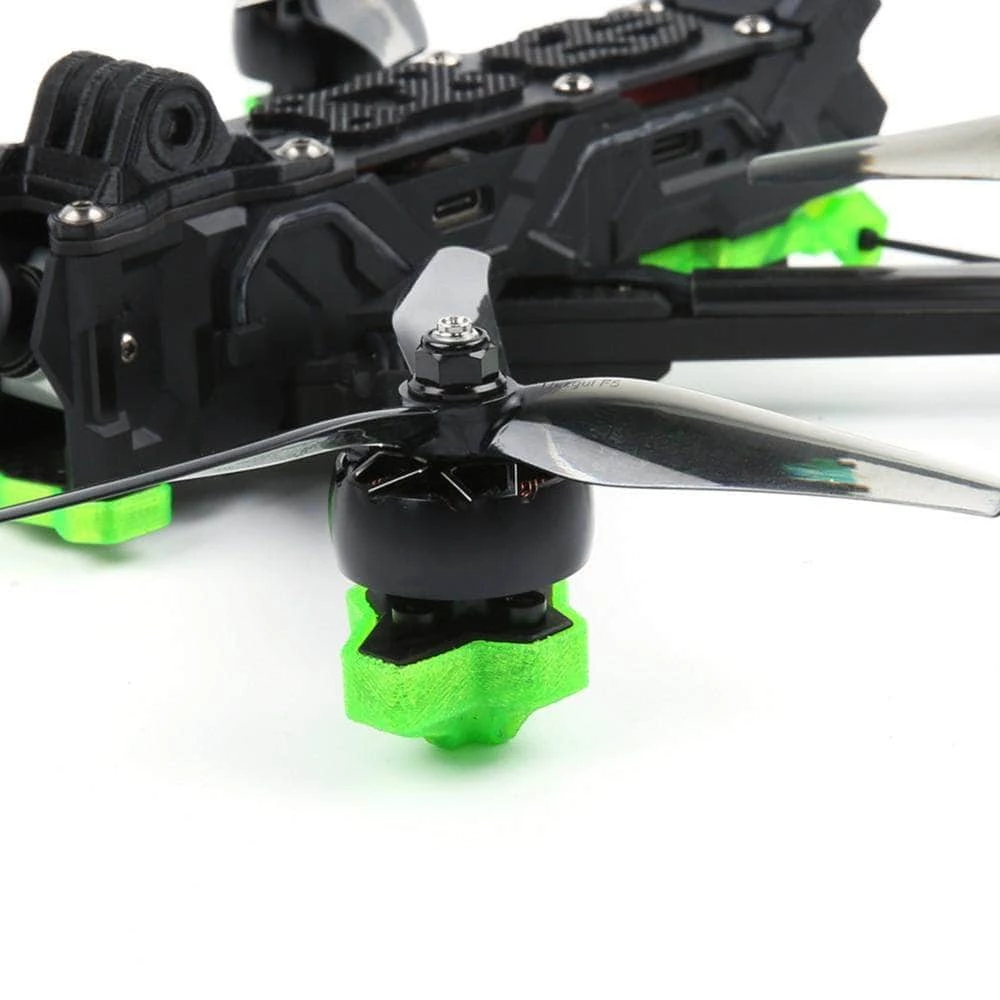

- XING2 Performance Motors – The Best Motors Just Got Better
- Illumination – Let It Be Green!
- Digital HD Experience –ย DJI FPV Camera
Specifications
- Weight: 412g
- Propeller Size: 5″
iFlightย Blitz Mini F7 FC
- MCU:ย STM32 F722
- Gyro: MPU6000
- Baro:ย NO
- OSD: IFLIGHT OSDย ๏ผAT7456E๏ผ
- BEC: 5V 2.5A
- BlackBox: 16MB
-
UARTS: 5ย
UART1 for VTX HD/Analog
UART2 forย Receiver
UART3ใUART4 for GPS or other sensors that require a serial port
UART6 for ESC Telemetry - 1x I2Cย ย ย
- 1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM ๏ผ5V/BAT/G/VO/T1/R1 /5V/G/VI๏ผ
- 1x SH1.0 8pin connector for ESC๏ผR6/CUR/M4/M3/M2/M1/BAT/G)
- 1x SH1.0 6pin connector for Any Receiver or DJI๏ผ3V3/R2/5V /G/R2/T2๏ผ
- 1x SH1.0 4Pinย connector GPS (T4/R4/G/5V)
- 1x SH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
- 4x 0402 LEDs for FC STATUS (3.3V Red) / (Start Blue) / (5V Green)/๏ผBAT Orange๏ผ
- VTX protocol: Smartaudio & IRCTrampย supported
- WS2812 LED Strip๏ผYes
- Beeper๏ผYes
- Firmware:ย IFRC-IFLIGHT_BLITZ_F722
- Dimensions: 30.5*27mm / 20*20mm ฯ4 mounting
- Weight: 5.0gย
iFlight Blitz Mini E55A 4in1 ESC
- Input: 2-6s LiPo
- Constant: 55 Amps (per channel)
- Burst: 60 Amps (per channel)
- MCU:ย BB21
- Target:ย QH-50 16.7
- BEC: No
- BlHeli32 telemetry: Yes
- Dimensions: 42x35mmย
- Mounting Dimensions:ย 20x20mm, 3mm (2mm w/ grommets)
- Weight: 11.3gย ย
DJI Camera
- Sensor: 1/3.2” CMOS; Effective Pixels: 4 M
- Lens: 2.1 mm, f/2.1
- Shutter: Rolling shutter
- ISO: 100-25600
- FOV: 150ยฐ(D); 122ยฐ(H); 93ยฐ(V)
- Dimension: 20ร21ร25.5mm
- Weight: 8.2 g
Vista Module
- Input Voltage: 7.4-26.4V
- Output Power: 25mW / 200mW / 500mW / 700mW
- Dimensions:
- Vista: 30x29x13mm
- Coaxial Cable: 120mm
- Antenna: 105×11.2mm
- Weight: 28g (+1.5g for Antenna)
Includes
- 1x iFlight BNF Nazgul Evoque F5X HD Squashed X 5″ Quad w/ Caddx Vista and DJI Camera – 6S
