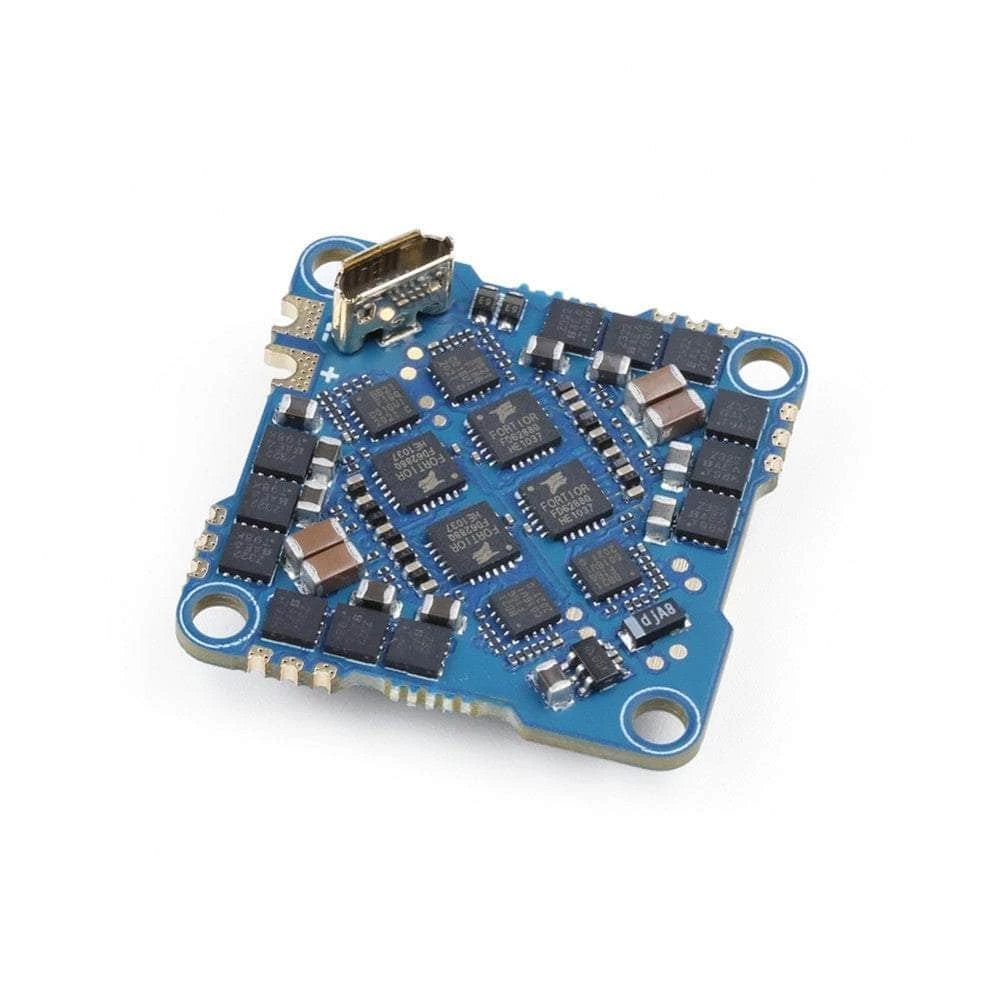

Outlet 🎉 IFlight F411 V1.1 2-4S AIO FC W/ 20A 8Bit ESC New 🎁

An awesome little AIO from iFlight, Coming with 20A ESCs, DJI ready header for an air unit or Caddx Vista, and a nice open pad layout to get all your peripherals on board!

Browse our Stacks & Combos, and our iFlight gear!

Features

• Support 2-4S battery, new upgraded UARTS ports
• F411 chip is used with high-performance computing speed, making it smoother during flight.

Specifications

Whoop AIO F4 V1.1 AIO

• MCU: STM32F411
• IMU: BMI270
• Firmware target: IFLIGHT_F411_PRO
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports: R1 T1 / R2 T2
• USB: Micro USB
• BEC output: 5V@1A
• Integrated LC Filter
• Continuous current: 20A
• MAX current: 25A (10s)
• Input: 2-4S
• Supports: Dshot600, Oneshot, Multishot
• BlackBox: 8Mb
• Target: Q-H-50 (BlheliS) / Bluejay Q-H-50 (Bluejay)

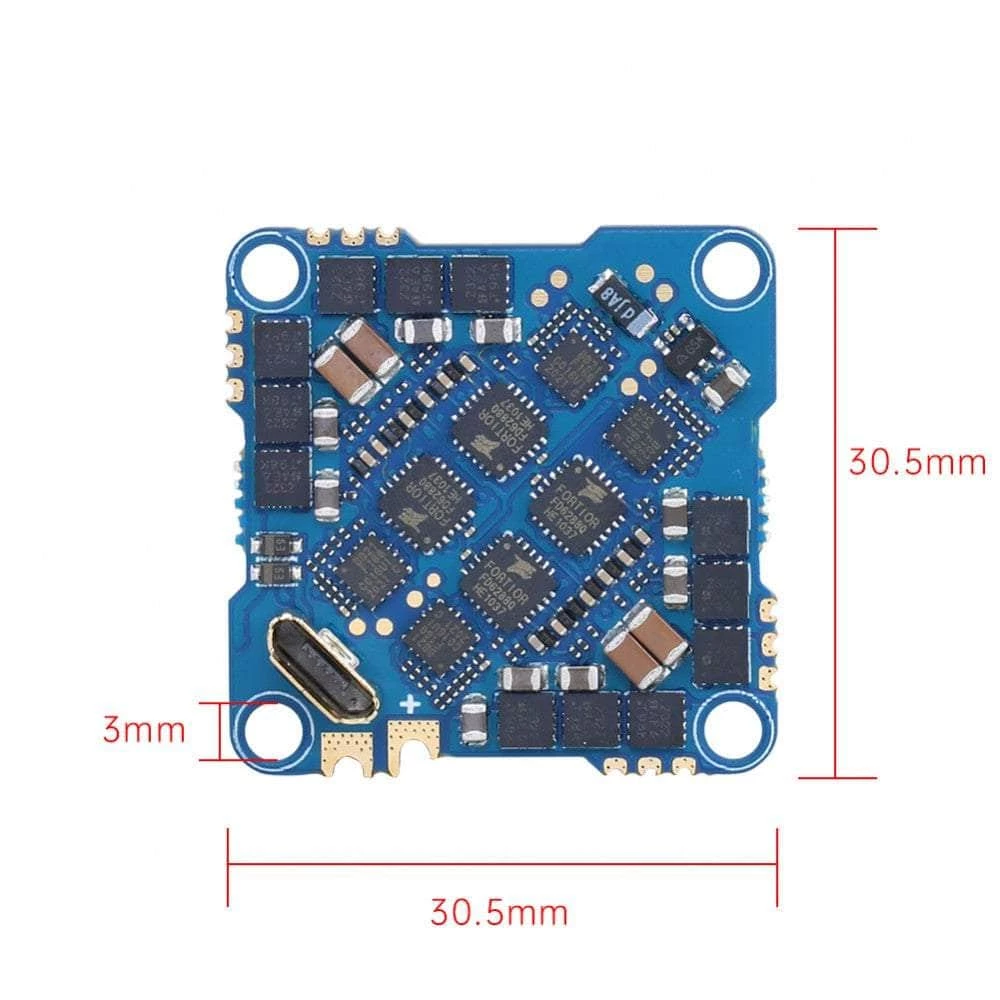

• Size: 30.5×30.5mm Board
• Installing Hole: 25.5×25.5mm, M3
• Weight: 7.4g

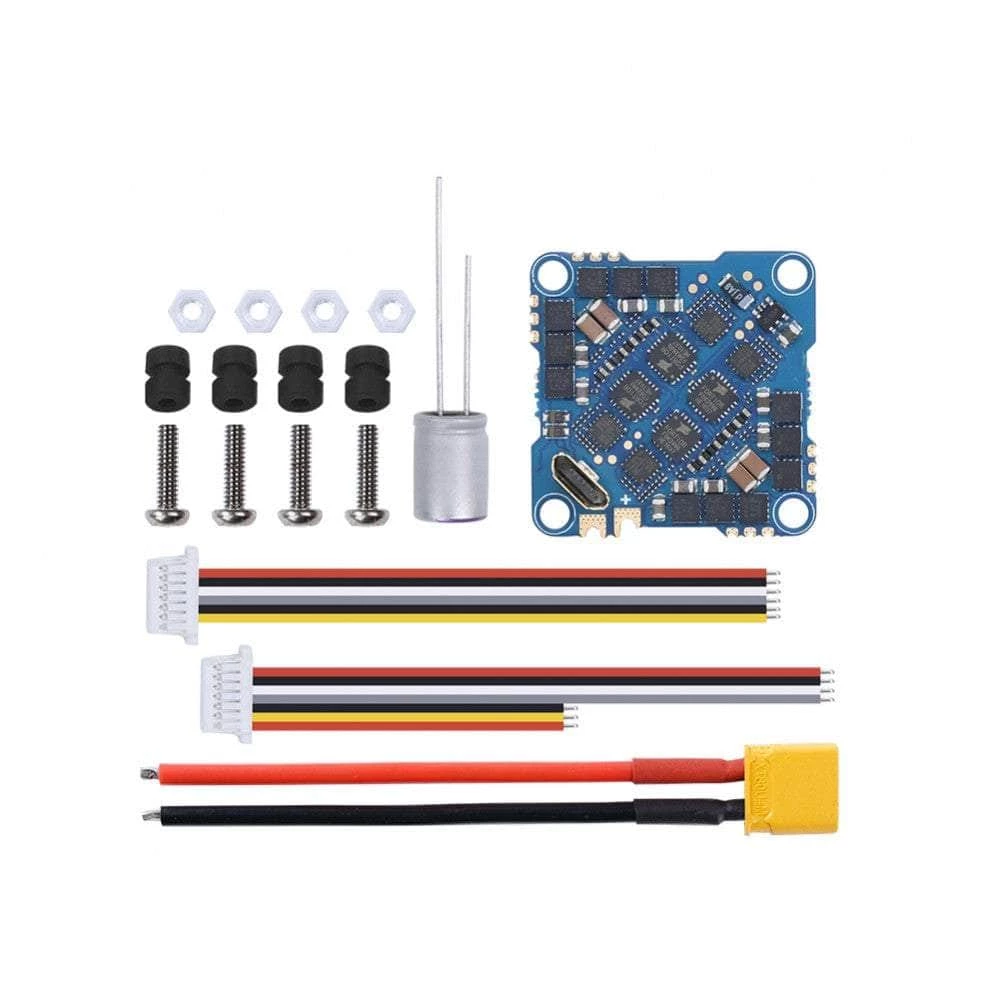

Includes

• 1x Whoop AIO F4 V1.1 AIO Board× 1
• 1x Capacitor UPL 35V 470UF × 1
• 1x XT30 18awg cable

• 1x Wire harness (plug&play) for DJI Air Unit × 1
• 4x M2 silicon grommets × 4
• 4x M2 damping balls x 4
• 4x M2x8mm Screws x 4
