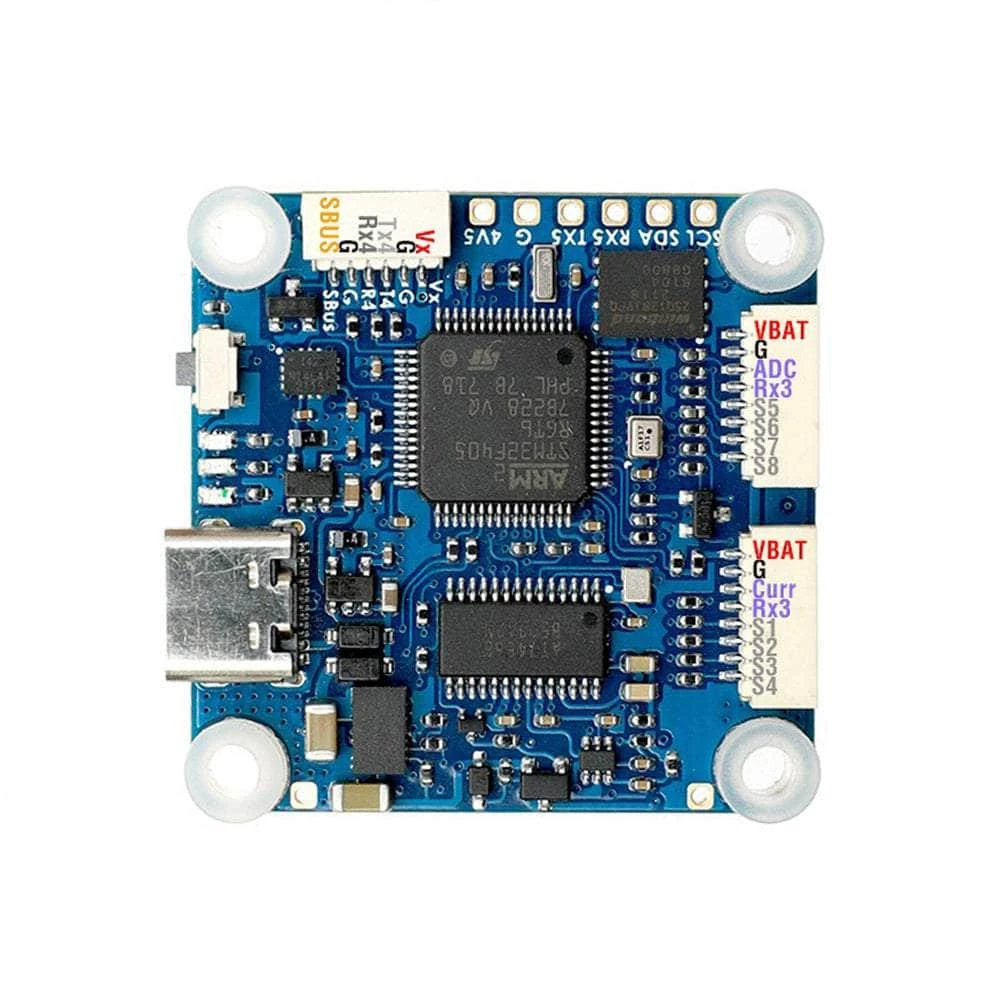

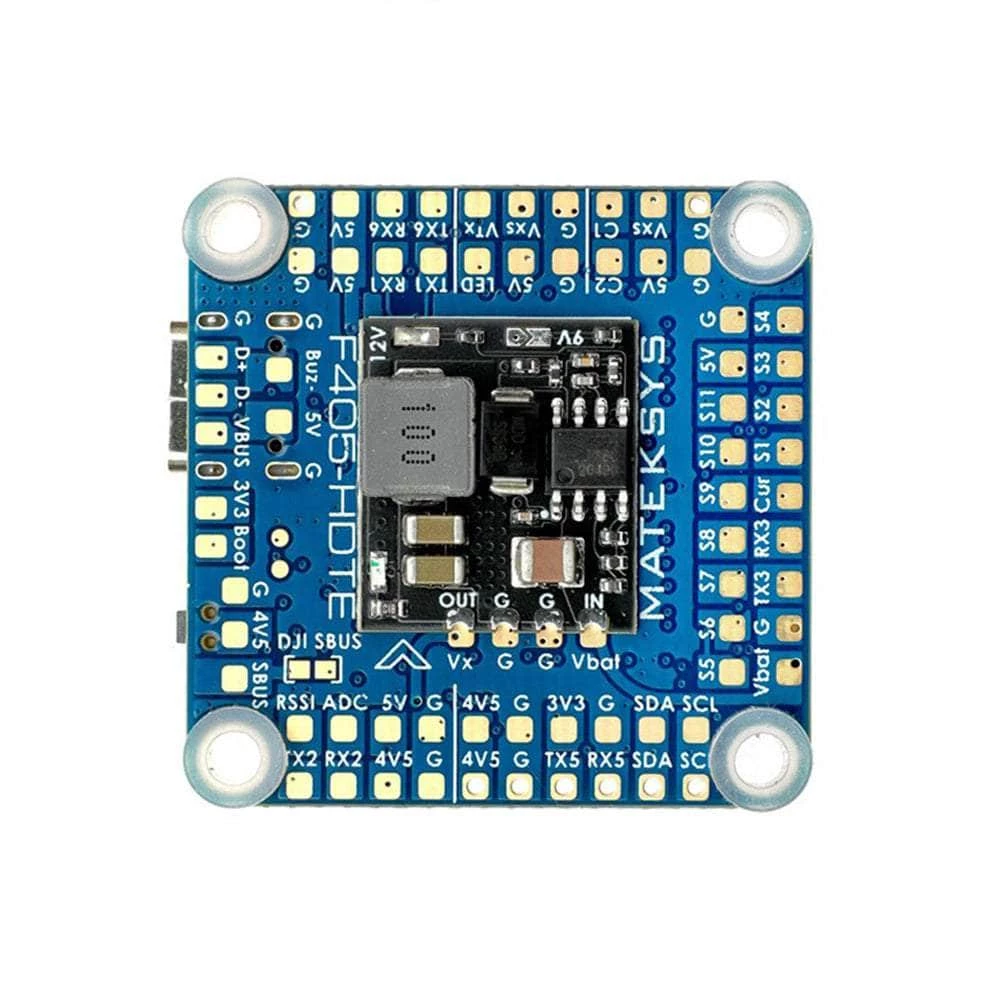

Best reviews of 🤩 Matek F405-HDTE 30×30 Flight Controller New 👍

Another feature rich offering from Matek in the 30×30 class. Loaded with features for digital and analog builds. Matek leads the pack when it comes to quality and performance.

Check out our 30×30 Flight Controllers as well as the entire Matek selection!

Features

• STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight
• InvenSense the 3rd generation IMU ICM42688-P
• 9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX
• 8motors+3servos in INAV/BF multirotor mixer.
• SH1.0_8pin connector for PnP with 2x 4in1 ESC
• SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)
• USB pin breakout for connecting to external USB adapter

Specifications

• Input Voltage: 3-12S
• MCU: STM32F405RGT6
• IMU: ICM42688-P
• OSD: AT7456E, DJI OSD
• Barometer: SPL06-001 (I2C)
• Blackbox: 16M-byte Flash memory
• UARTs: 6 + 1x Softserial_Tx option
• PWM outputs: 12 (8x Dshot)
• I2C: Yes
• BEC:  5V 1.5A, Vx,  9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
• ADC: 4 (VBAT, Current, RSSI, Airspeed)
• PINIO: Yes
• Dual Analog Camera Cignal Switchable: Yes
• Mounting Pattern: 30x30mm
• Dimensions 36x36x5mm
• Weight: 7g

Includes

• 1x Matek F405-HDTE Flight Controller
• 6x Silicon grommets M4 to M3
• 1x SH1.0_8pin cable 5cm,  2x SH1.0_8pin connectors
• 1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit)

Wiring Diagram
