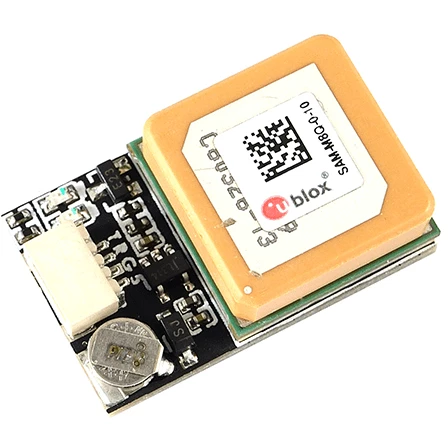

Best deal 🎁 Matek SAM-M8Q GPS Module New 👍

Features

• 72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
• On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
• Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
• Build-in embedded GNSS patch antenna, low power consumption
• The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated in any design.

• Max navigation update rate
  Single GNSS up to 18 Hz
  2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz
• Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP
• Velocity accuracy 0.05m/s
• Cold start 26 s
  Aided cold starts: 2 s
  Hot start 1 s
• Sensitivity
  Tracking & Navigation: –165 dBm
  Reacquisition: –158 dBm
  Cold start: –146 dBm
  Hot start: –155 dBm

• Input voltage range: 4~6V
• Uart (Tx,Rx) interface
• Battery for HOT module start
• Power LED(Red) & Time pulse LED(Blue)
• Baudrate 9600 default
• Dimensions: L26 x W16 x H7.5 mm
• Weight: 7 gram
• Can be easy mounted in your case by double sided tape
• Supported by INAV/Betaflight/Ardupilot, ect.

Includes

• SAM-M8Q module, 1 pc
• SH1.0-4P 15cm silicon wire, 1 pc
• Transparent PVC Heat-shrink tube

Tips

• GPS, GLONASS, SBAS, QZSS are enabled by default
• Blue PPS LED blinking(1Hz) means 3D fixed
• update rate 1Hz & baudrate 9600 default
• Baud 9600~115200 supported by INAV
• update rate 5Hz with INAV UBLOX Protocol
• update rate 10Hz with INAV UBLOX7 Protocol
• BF doesn’t support GPS position hold and RTH,  GPS Rescue mode is supported by BF3.5 or last.
• The scratches on ceramic antenna are the result of tuning the antenna by ublox. Placing small nicks in the centre of the long edges, or corners, brings them into spec.
