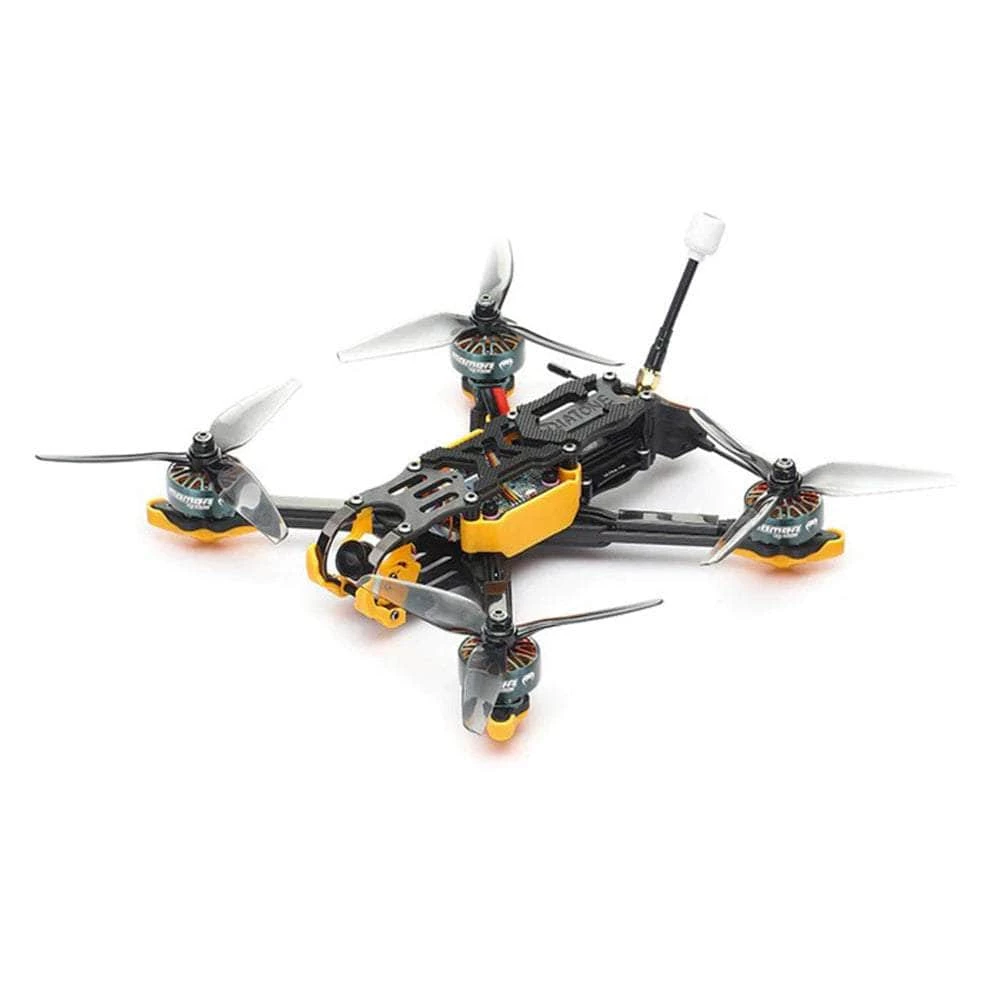

Outlet 🥰 New Diatone PNP Roma F5 V2 5″ Quad – 6S ⭐

Diatone has introduced a number of changes to the newly optimized Roma F5 V2, including the stiffness and strength of the frame arms. They’ve also strengthened the metal parts at the front of the frame and upgrade the alloy material from 7075 to titanium steel. For that extra high-end, tactile quality, they’ve treated the surface of the metal parts as well and changed the screws fixing the metal parts from M2 size to M3-sized specifications.

Check out our other pre-built quads, as well as the rest of our Diatone selection.

Specifications

Diatone Mamba APP F722 MK1

• Input Voltage: 3-6S LiPo
• MCU: STM32F722RET6
• Gyro: MPU6000
• OSD: yes
• UARTs: 6 Sets
• BEC: 3.3V 0.5A / 2x 5V 3A / 9V 3A
• Current Sensor: yes
• Buzzer: yes
• Barometer: no
• Stack Size: 30x30mm

Diatone Mamba F55 BL32 4in1 ESC

• Input Voltage: 3~6S Lipo (12.6V~25.2V)
• Max Continuous Current: 55A
• Max Burst Current: 65A
• BEC: No
• Target：BLHeli_32 MAMBA F55_128K
• Protocol: Dshot300/600/1200
• PWM Range: 24~128K
• TVS Protection: Yes
• Mounting Pattern: 30×30 M3

RunCam Phoenix 2

• Image Sensor: 1/2″ COMS Sensor
• Horizontal Resolution: 1000TVL
• Lens: 2.1mm ​(M12)​ FOV155° (4:3)
• Screen Format: 4:3 / 16:9 switchable
• Mirror/Flip: Available
• Signal System: PAL / NTSC Switchable
• Min. Illumination: [email protected]
• WDR: Global WDR

Diatone Mamba Ultra 1000 VTX

• RF Output Power: 1000mW
• Antenna Connector: MMCX
• Stack Size: 30x30mm

Diatone Toka 2306.5 1770

• Kv: 1770
• Input Voltage: 6S
• Configuration: 12N14P
• Max Continuous Current: 45A
• Internal Resistance: 52mΩ
• Motor Dimensions: 29.7mm Φ x 18.7mm
• Stator Dimensions: 23mm Φ x 6mm
• Shaft Diameter: 5mm Φ
• Mounting Pattern: 16mm Φ

Includes

• 1x Diatone PNP Roma F5 V2 5″ Quad
