Cheap ⭐ New Flywoo GOKU GN405 2-6S 16×16 Stack/Combo (GN405 NANO FC / 35A 4in1 ESC) 🔔

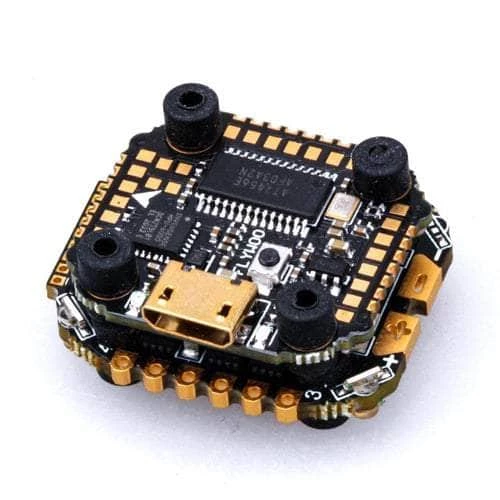

This is another small but powerful stack by Flywoo Featuring the GOKU F405 Nano flight controller packed with features including a barometer, 16MB black box, 6 complete hardware serial ports, I2C functionality, and WS2812 LEDs on each corner.

 It is specifically designed to be pin mounted to the Goku  BS13A / 35A  4in1 16×16 ESCs but can also be soldered via pads. The programmable WS2812 LED on each corner provides low-profile lighting for this tiny FC

Check out all our 16×16 stacks, and our Flywoo gear selection!

Specifications

GOKU F405 NANO FC

• Dimensions: 22x22mm
• Weight: 2.3g
• Mounting Pattern: 16×16, M3 Holes
• MCU: STM32F405 BGA
• UARTS: 1/2/3/4/5/6
• I2C: SCL/SDA
• GYRO: MPU6000
• BARO: BMP280
• BEC: 5V 2A
• LED: 4xWS2812
• FLASH: 8M
• Input Voltage: 2-6S
• Firmware: FLYWOOF405NANO

BS35A 4-IN-1 ESC

• Support: Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input Voltage: 2-6S Lipo
• Continuous Current: 35A
• Firmware: BLHELI_S
• Mounting Pattern: 16x16mm
• Weight: 2.5g

Wiring Diagram

Includes

• 1 x GOKU F405 Nano 16X16 FC
• 1 x BS35A BLheli_S 2-6S 4in1 ESC
• 4 x M2 19mm Bolts
• 4 x M2 Nuts
• 8 x Spacers
• 1 x Capacitor
• 1 x Flywoo Sticker
• 1 x Connecting Wire
