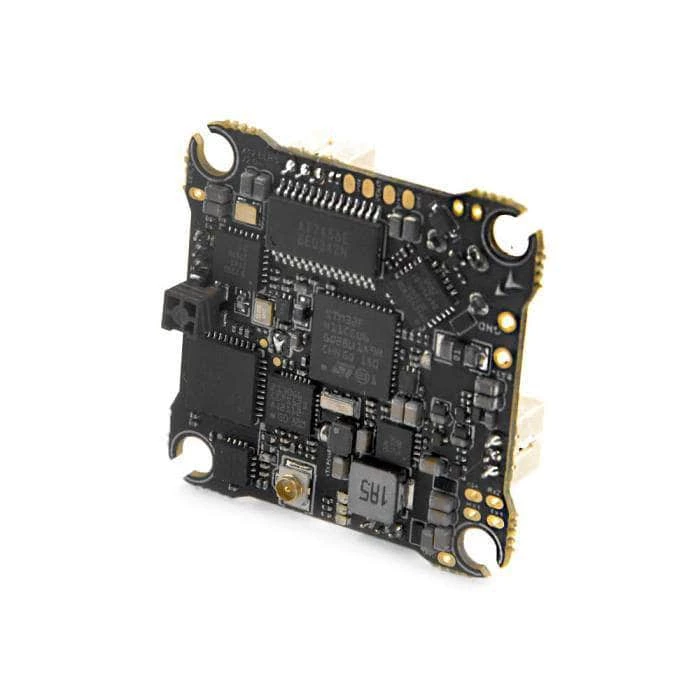

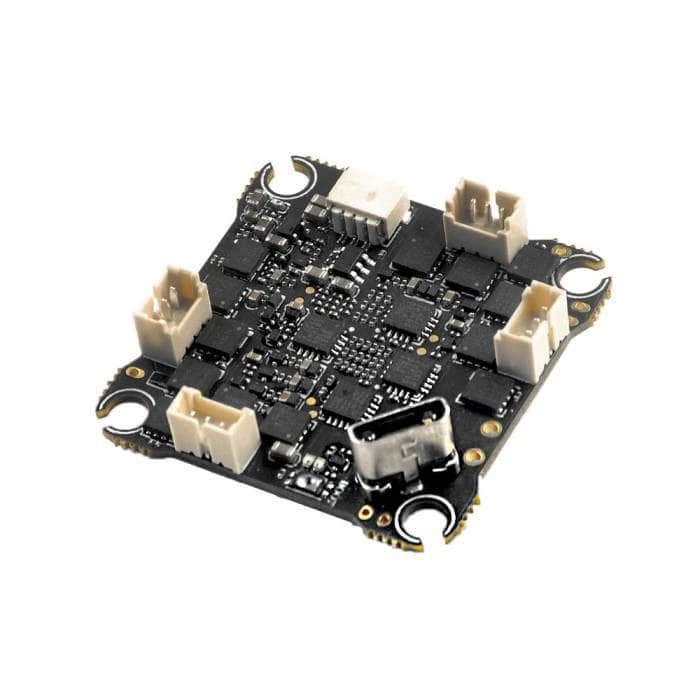

The X12 lite does away with the onboard VTX, shedding weight and giving you the option to add your own VTX.Β It also comes with an onboard ELRS receiver, ICM20689 gyro, and is rated for 1-2S lipos. This is a great replacement board for your whoop fleet!Β
We also have the Happymodel X12 V1 with an onboard VTX for sale as well, for a true 5-in-1 AIO Flight Controller.Β
Browse the rest of ourΒ Whoop AIO BoardsΒ and all of ourΒ Happy ModelΒ products!
Specifications
- Input Voltage: 1-2S
- MCU:Β STM32F411CEU6 MCUΒ (100MHZ, 512K FLASH)
- Gyro:Β ICM20689 Sensor
- Max Continuous Current: 12A
- OSD: Yes
- Mounting Pattern: 25x25mm
- Weight: 5.1g

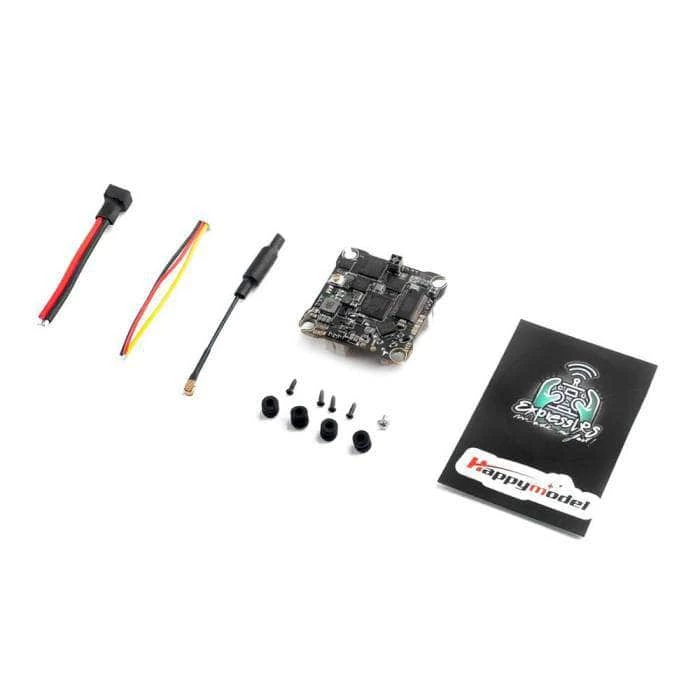

Includes
- 1x Happymodel X12 Lite V1.0 F411 1-2S 25×25 AIO Flight Controller
- 2x Connecting Wire
- 1x Hardware Set
- 4x Grommets
