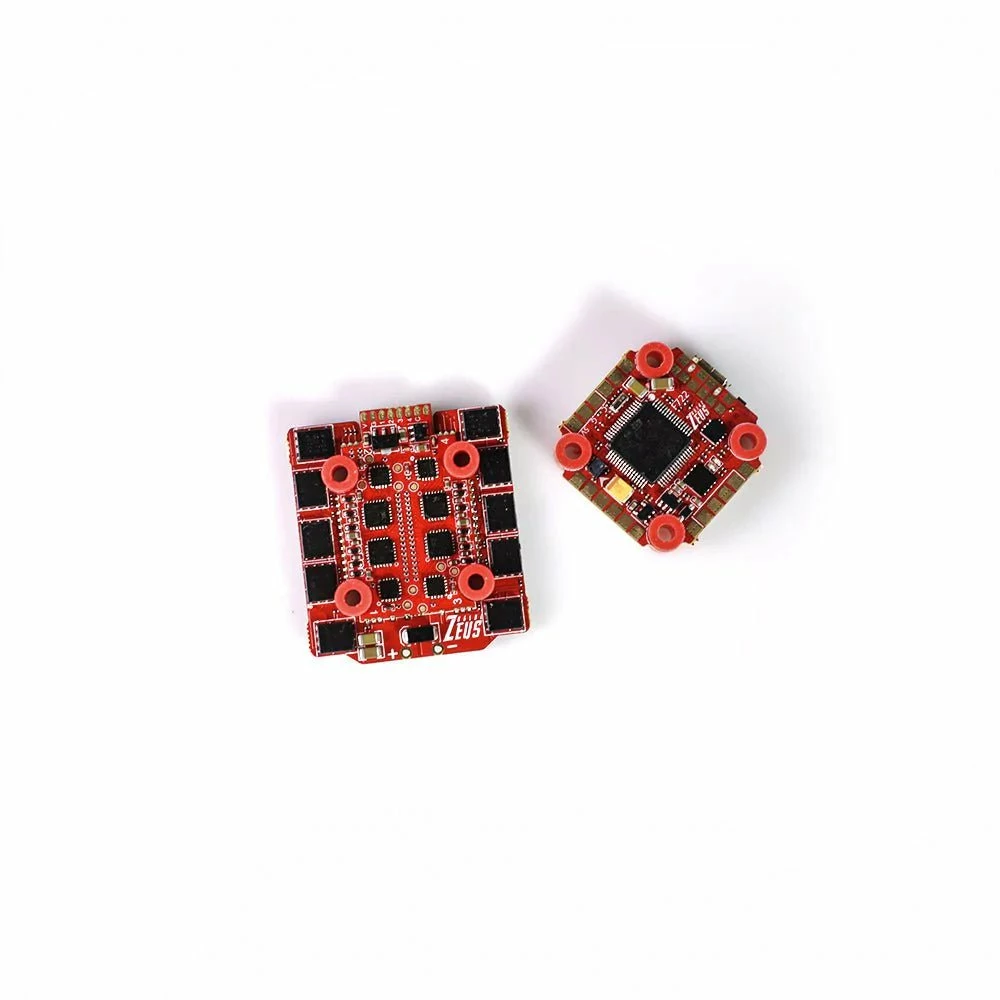

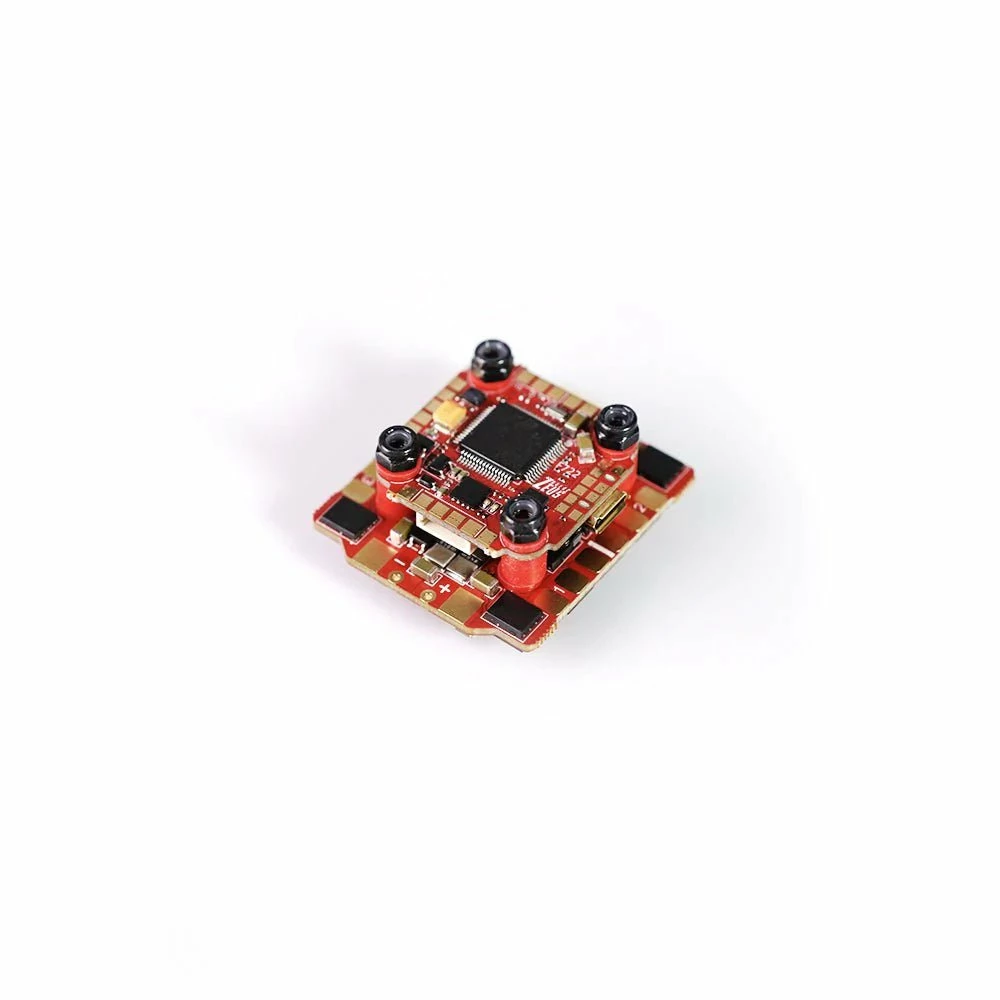

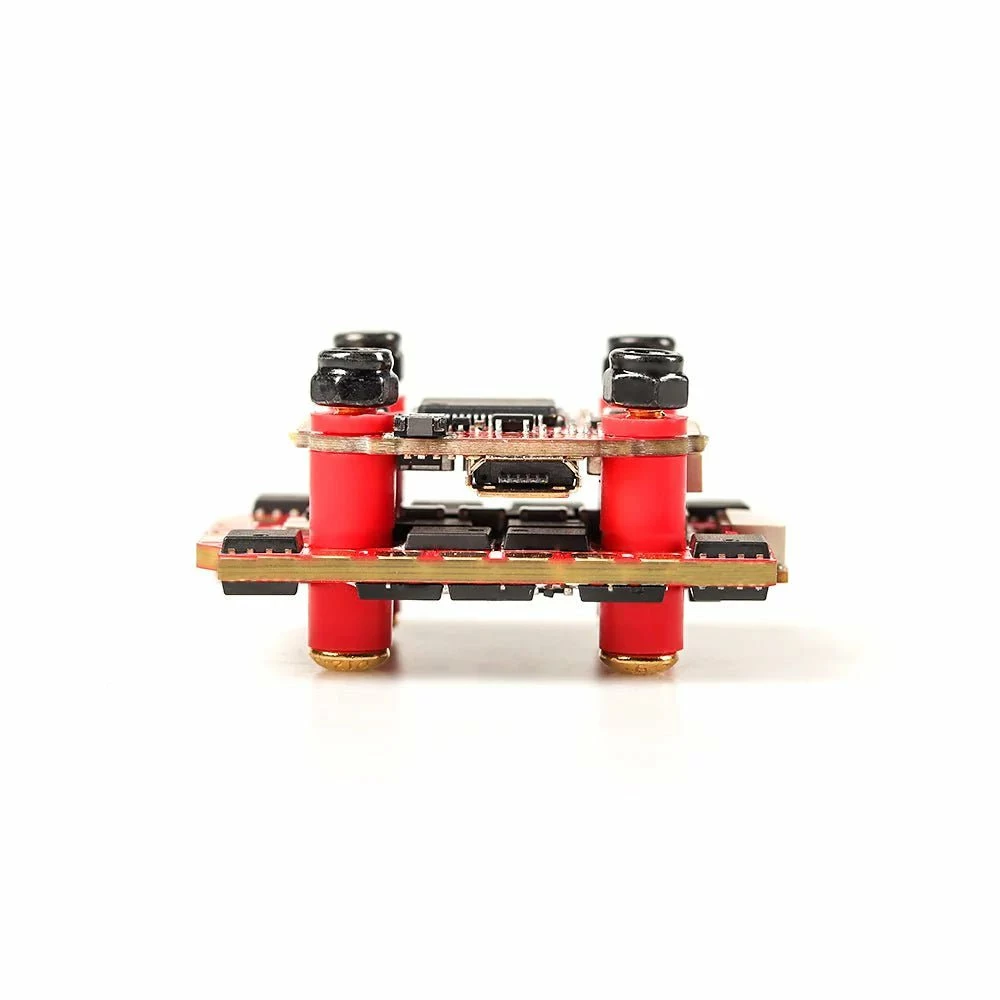

The newΒ ZeusF7 V2 stack is out and ready to be flown! This 20×20 stack has an F7 at its core with a BMI270 gyro to help it compute those flippy floppies. Ready for DJI with its own header making building easy, huge mosfets and pads for easy soldering and better performance.Β
Browse ourΒ Stacks & Combos, and our HGLRCΒ product line!
FC Specifications
Zeus F722 mini Flight Controller
- Model Name: Zeus F722 mini
- MCU: STM32F722 RET6
- IMU: BMI270
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro: NO
- Firmware target: BF HGLRCF722(HGLR)
- Installing Hole: 20mm mounting holes (M3)
ESC Specifications
Zeus 45A V2 BL_S 3-6S 4in1 ESC
- Input Voltage: 3-6S
- Max. Continuous Current: 45A
- Max Burst Current: 55A
- Firmware:Β Β F-H-40
- Mounting Dimensions: 20×20 M3

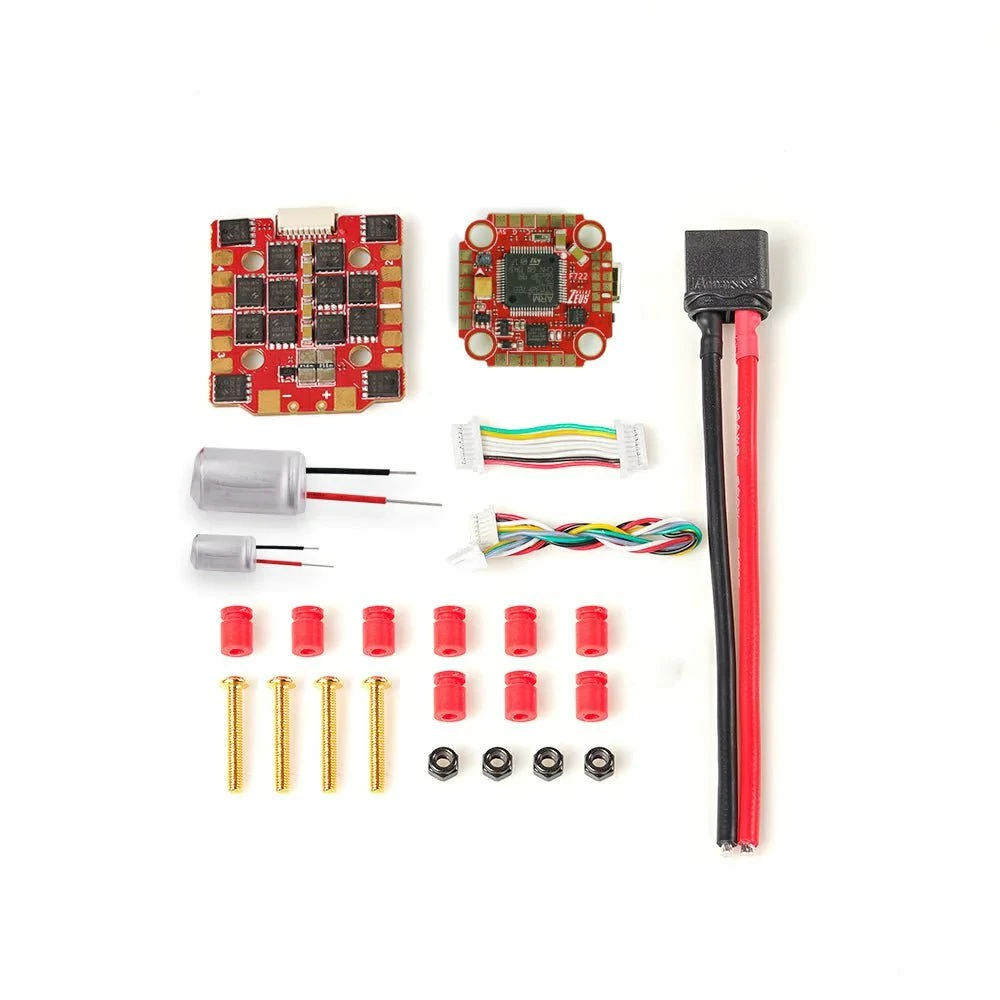

Includes
- 1x Zeus F722 mini Flight Controller
- 1x Zeus 45A V2 BL_S 3-6S 4in1 ESC
- 1x Accessory Package
