The new iFlight Blitz 30×30 25-1000mW+ 5.8GHz VTX – MMCX is capable of blasting over 1000mW from a super durable machined aluminum case!

Check out all our VTXs as well as our entire iFlight selection!

Features

• Stable output power
• 4 Power levels up to 1600mW*
• 40 Channels (including Raceband)
• Fast frequency lock, no startup interference with other pilots
• Built-in output power self-check functionality
• VTX telemetry with IRC Tramp protocol

Specifications

• Input voltage: 7V～36V

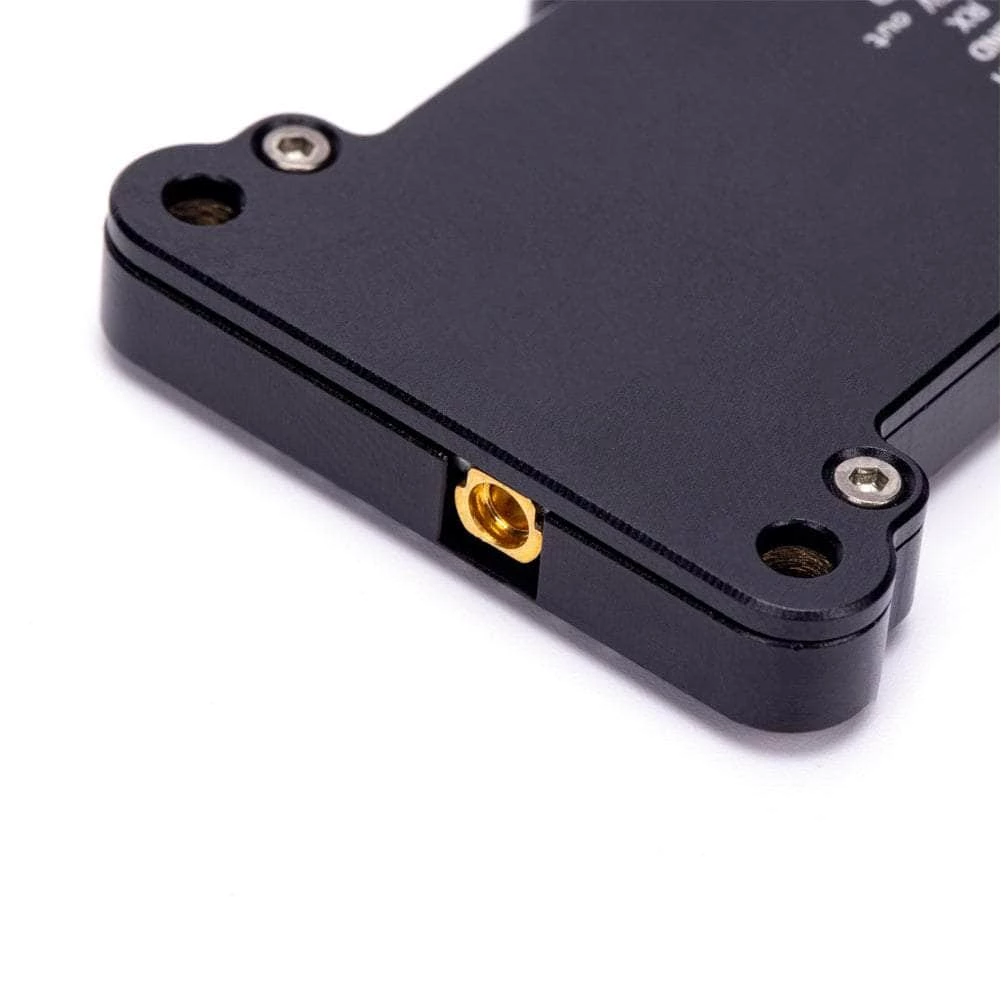

• Interface: MMCX
• Power levels: PIT/25mW/400mW/800mW/1600mW
• Channels: 40 (including Raceband)
• Mounting pattern: 30.5×30.5mm/Φ3
• VTX telemetry: IRC Tramp
• IRC Tramp VTX table values: 25mW/400mW/800mW/1600mW

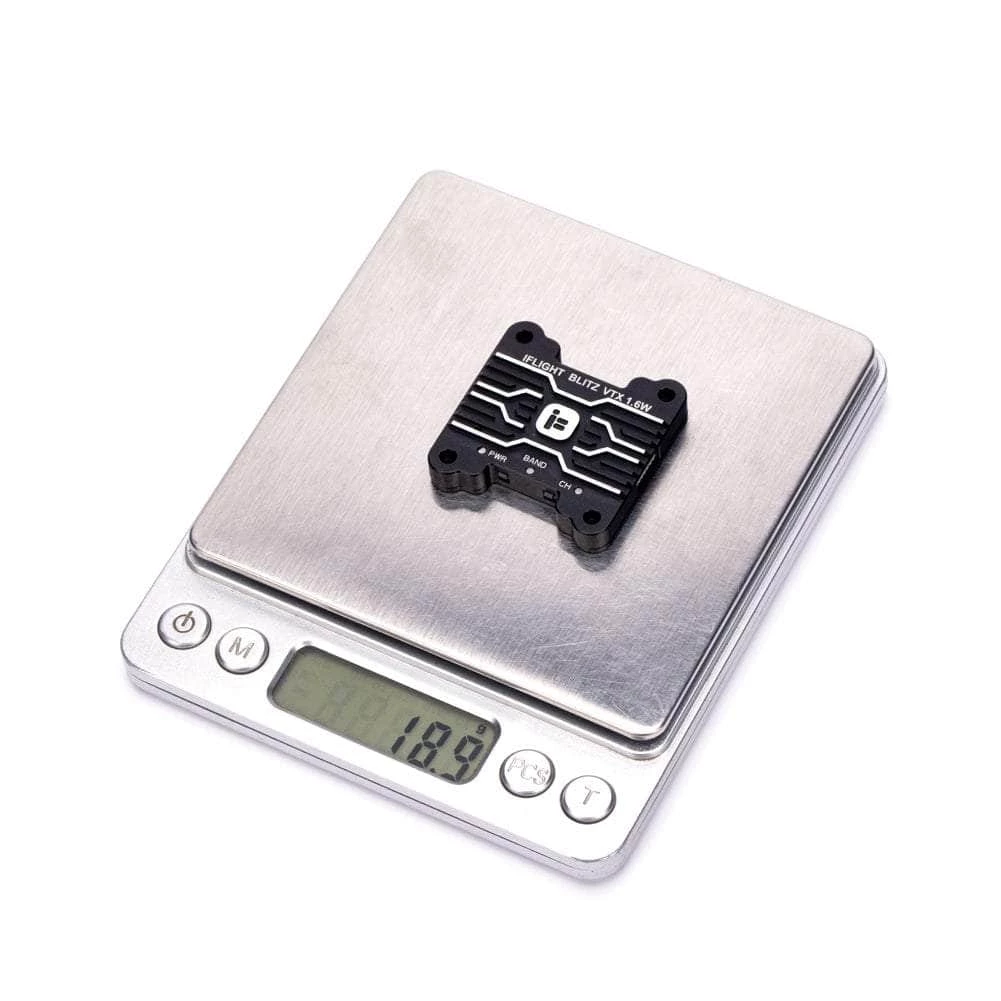

• Weight: 18.9g

*VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use iFlight’s prepared Betaflight VTX tables according to your region.

Betaflight IRC Tramp Configuration: Please download VTX tables here

Includes

• 1x iFlight Blitz 30×30 25-1000mW+ 5.8GHz VTX – MMCX

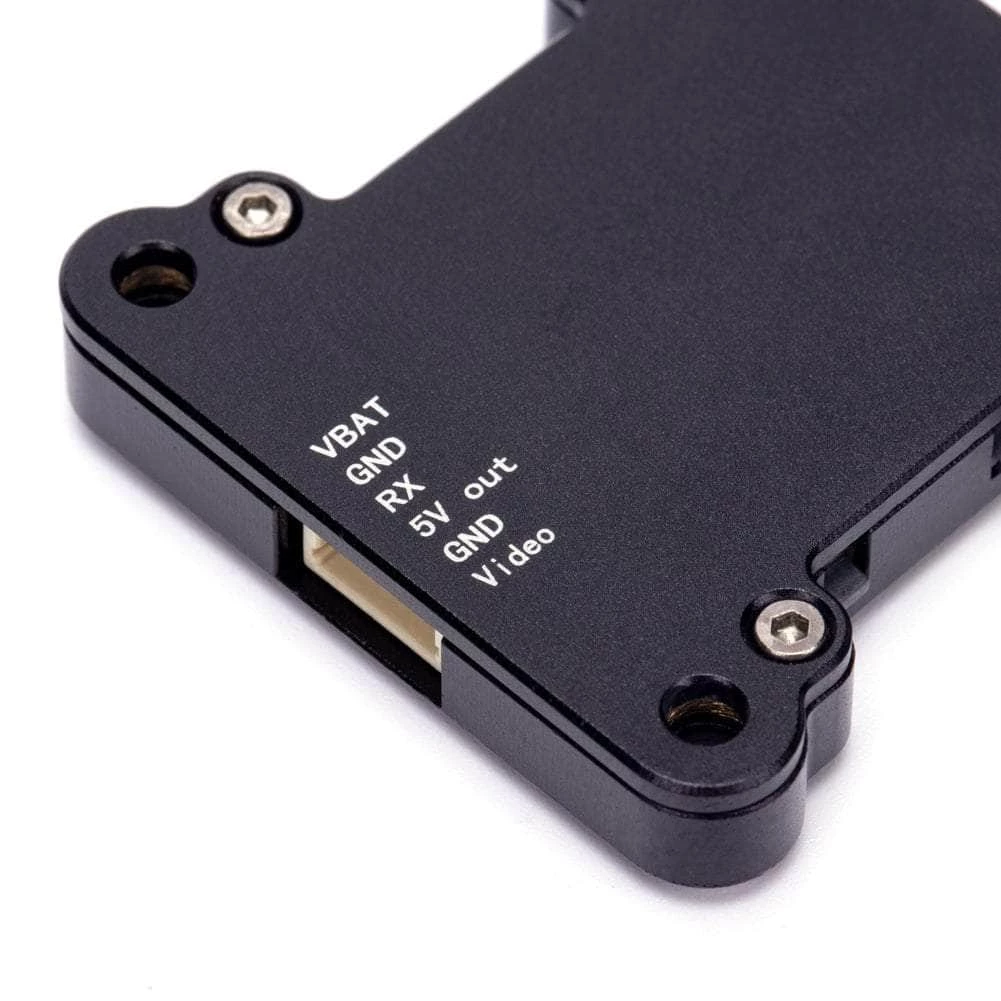

Wiring Diagram
