New ⌛ New IFlight Blitz F722 E55 2-6S 30×30 Stack/Combo (F722 FC/ 55A 32bit 4in1 ESC) 👍

The next generation of the iFlight Blitz F722 E55 2-6S 30×30 Stack/Combo (F722 FC/ 55A 32bit 4in1 ESC) have arrived. These new flight controllers are equipped with a plug and play connectors making connecting your video transmitter, radio receiver, and other periphery sensors a breeze.

They also make diagnosing issues in the field much easier with status indicator LED’s that let you know in seconds if you are having a problem with the 3.3V, 5V, or VBat. Coupled with iFlight’s new 55 Amp BLHeli_32 Blitz 4-in-1 ESC, this stack can handle even the most amp hungry motors.

Check out our other 30×30 Stacks & Combos as well as our entire iFlight selection!

Specifications

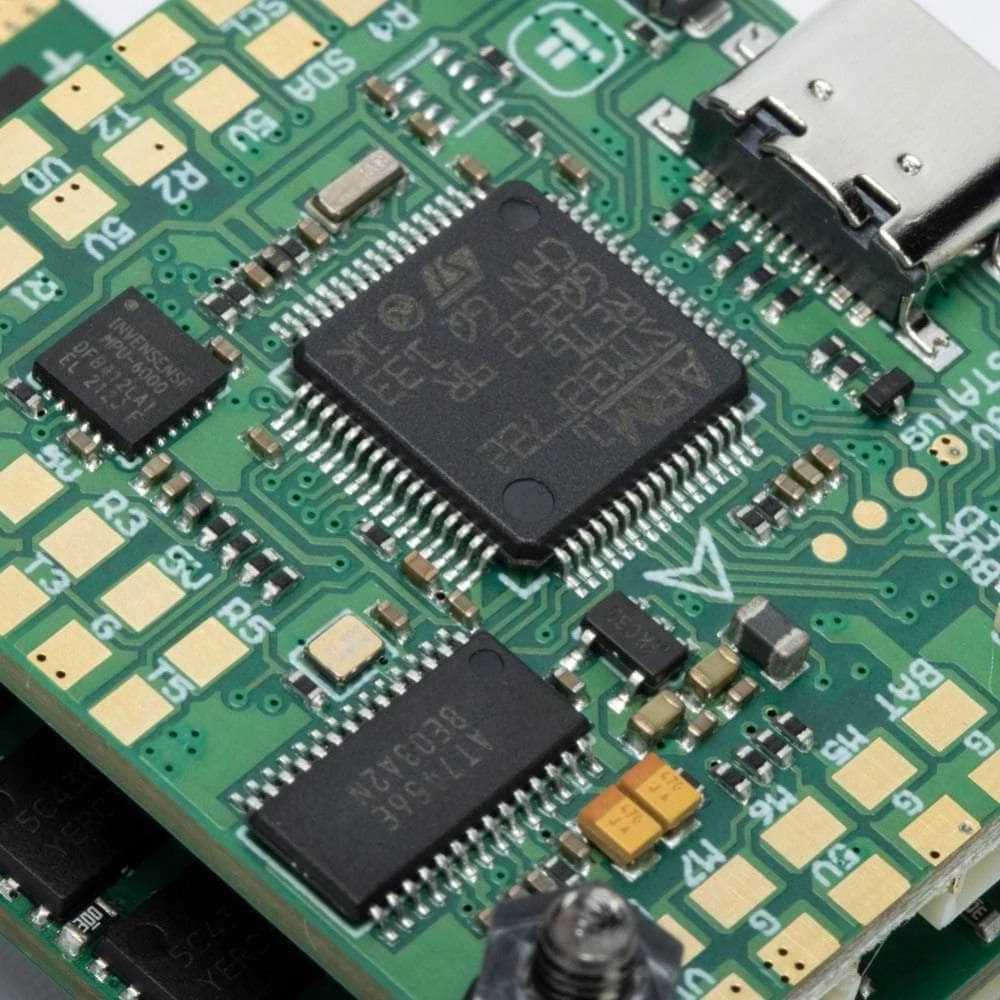

Blitz F722

• MCU: STM32F722
• Gyro: BMI270
• Barometer: DPS310
• OSD Chip: AT7456E
• Blackbox: 32MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C: SDA / SLA pads
• LED: Yes
• Beeper: Yes
• Firmware Target: IFRC-IFLIGHT_BLITZ_F722
• FC Mounting Pattern: 30.5×30.5mm
• Dimensions: 36.5x35mm
• Input Voltage: 2-6S
• BEC: 5V 2.5A

E45 4in1 ESC

• Input Voltage: 2-6S
• Max. Continuous Current: 55A
• Max. Burst Current: 65A
• Firmware: BLHeli 32
• MCU: G071
• BEC: No
• Current Sensor: Yes
• Target: IFLIGHT_BLITZ_G2
• Mounting Dimensions: 30.5×30.5mm/Φ4mm
• Dimensions 35x42mm

Includes

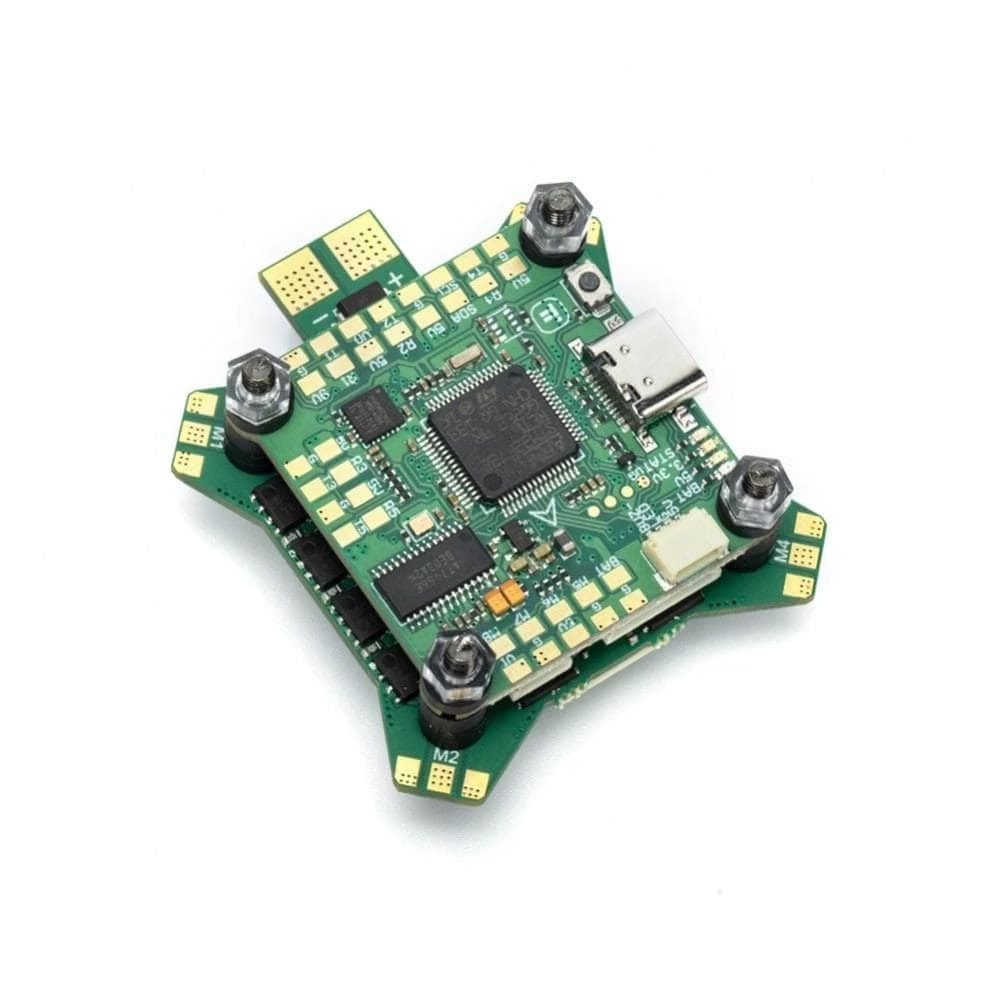

• 1x iFlight BLITZ F7 V1.1 30×30 Flight Controller
• 1x iFlight BLITZ E55 55A 2-6S 30×30 4in1 ESC
• 1x Wiring Set

Wiring Diagram
