Budget 😉 New IFlight BNF Nazgul5 HD 4S 5″ Quad W/ Caddx Vista & Polar Camera – TBS 🧨

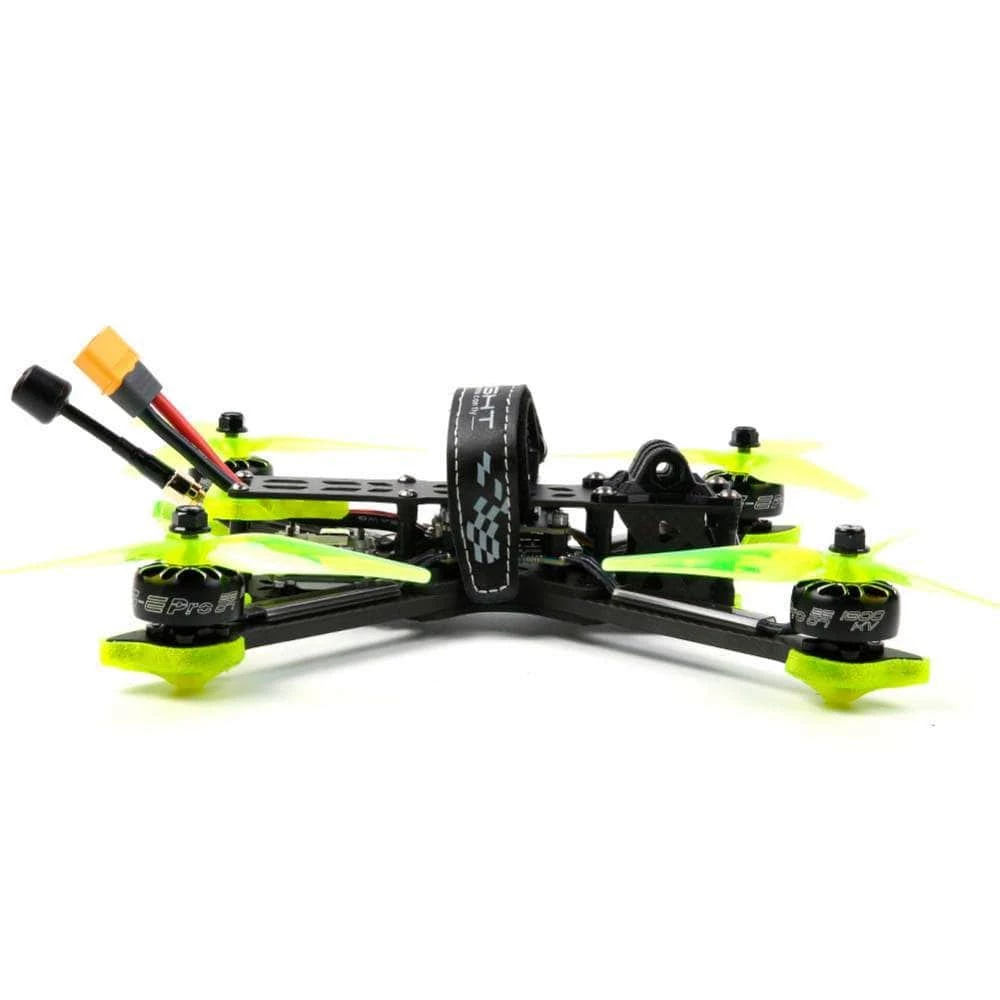

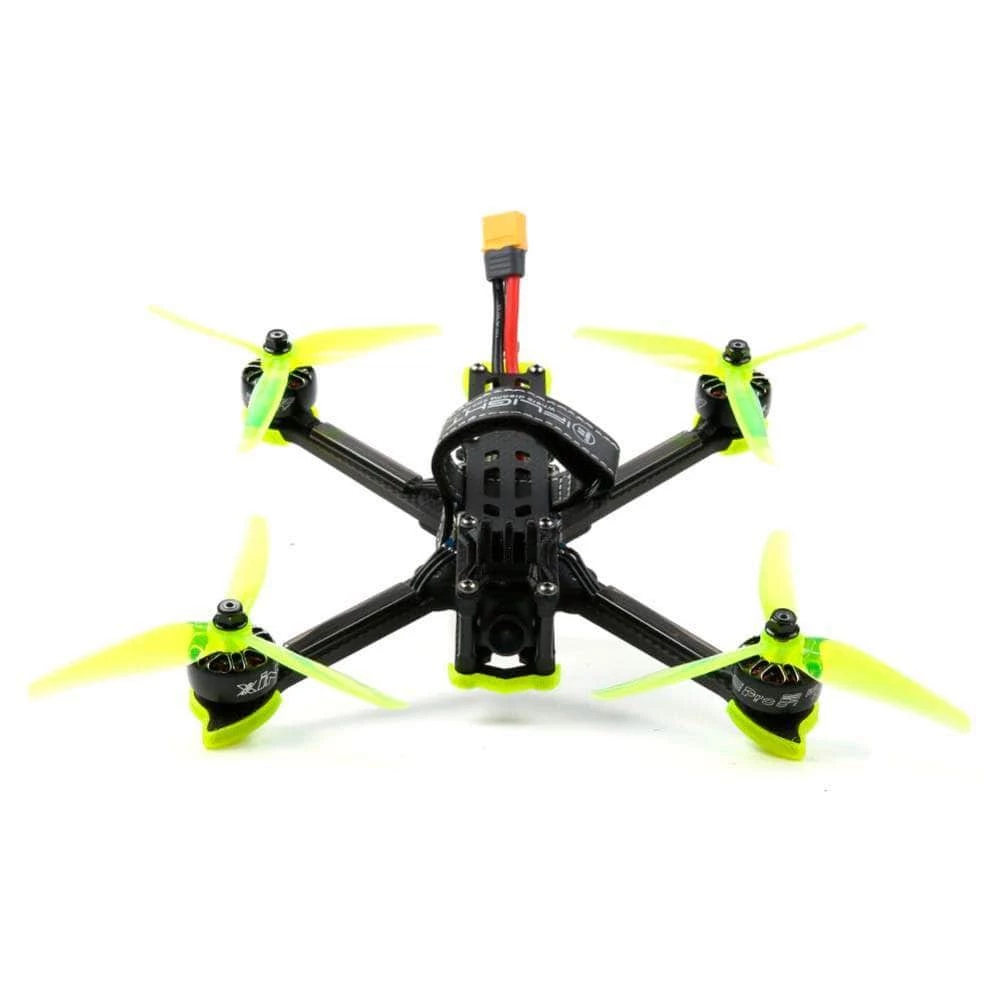

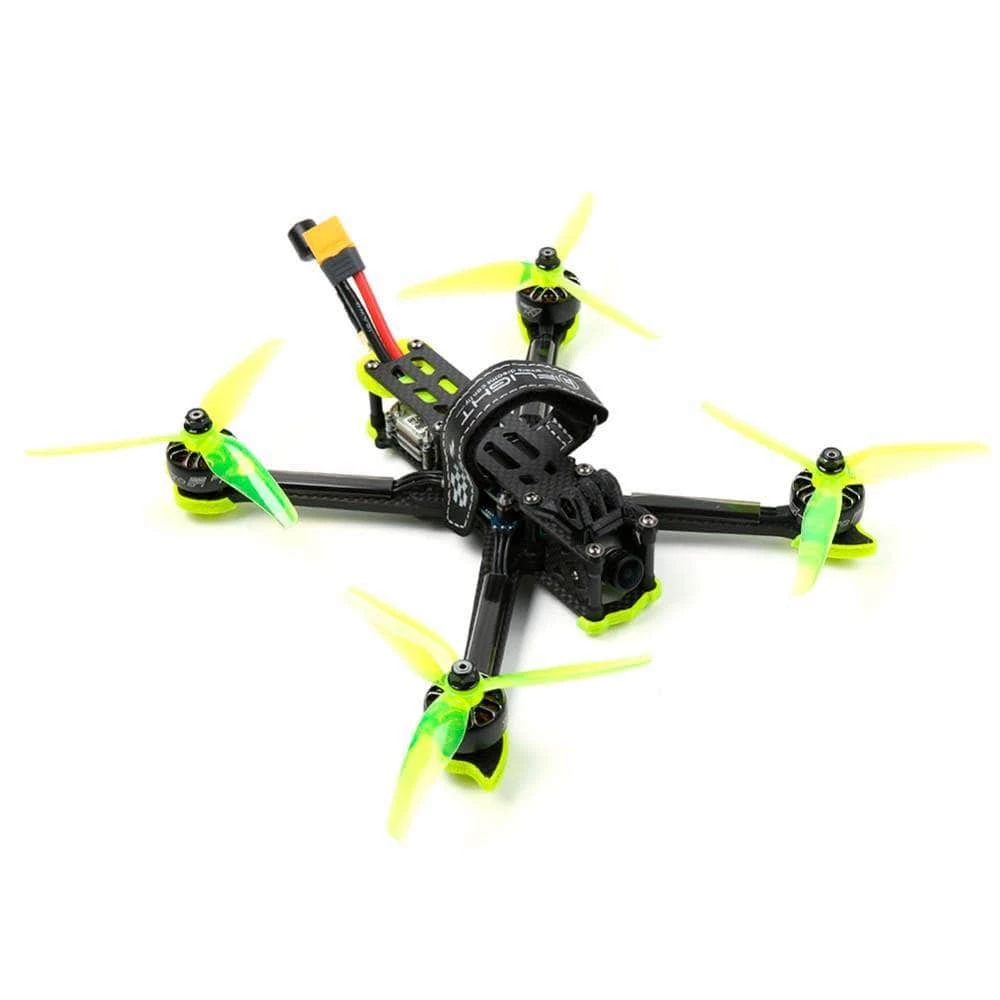

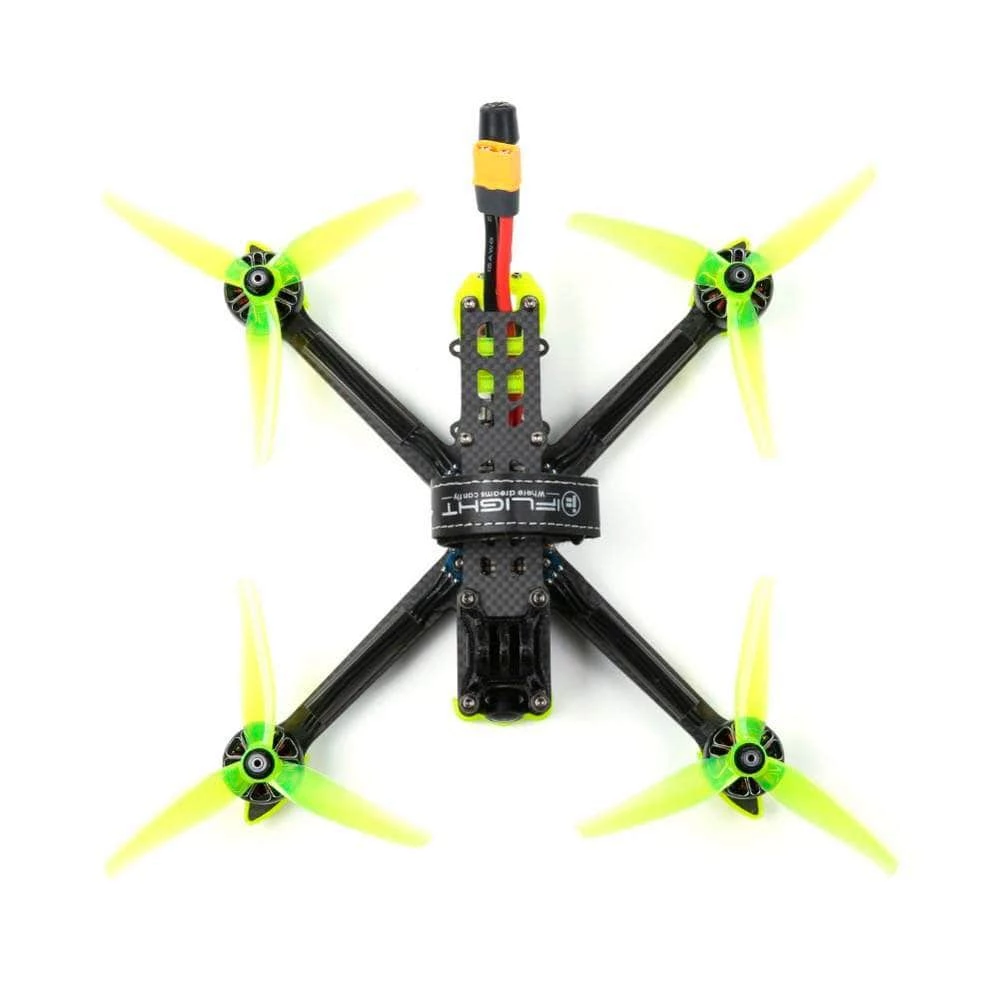

Nazgul5 HD is a 5″ BNF quad with the Caddx Vista Digital HD System and the popular Caddx Polar Camera! Pre-tuned and set up, all you need to do is just bind-and-fly! Loads of power and smooth flights are guaranteed using the popular XING-E PRO unibell motors with long-lasting NSK bearings.

4S version comes equipped with 2750Kv motors.

Check out our other pre-built quads, as well as the rest of our iFlight selection!

Specifications

• Weight: 400.8g
• Recommended Battery: 4S 1550mAH / 6S 1300mAH
• Propellor Size: 5″
• Antenna: iFlight Albatross LHCP RP-SMA

iFlight Succex-E F7 FC

• Input Voltage: 2-6S LiPo
• MCU: STM32F22RET6
• Gyro: MPU6000
• OSD: Yes
• UARTs: 5 Sets
• ESC Connections: Yes
• Firmware: IFLIGHT_SUCCEX_E_F7
• BEC: 5V 2.5A
• Current Sensor: Yes
• Buzzer: Yes
• Barometer: Yes
• Black Box: 16MB
• DJI Compatible: Yes
• Stack Size: 30×30
• Dimensions: 36x36mm
• Weight: 6.9g

iFlight Succex-E 45A ESC

• Input Voltage: 2-6S LiPo
• Max. Continuous Current: 45A
• Max Burst Current: 50A (10sec)
• Firmware: BLheli_S
• BEC: No
• Current Sensor: Yes
• Mounting Dimensions: 30x30mm M3
• Weight: 15g

iFlight Xing-E Pro 2207 2750KV (4S) / 1800 (6S) Motor

• Kv: 2750KV (4S) / 1800 (6S)
• Input Voltage: 4S or 6S LiPo
• Configuration: 12N14P
• Max Continuous Current: 35.22A
• Internal Resistance: 81.5mΩ
• Stator Dimensions: Φ22mm x 07mm
• Shaft Diameter: 5mm
• Mounting Pattern: Φ16mm
• Wire Dimensions: 20AWG x 150mm
• Weight (w/ wires): 33.8g

Polar Camera

• Sensor: 1/1.8″ Starlight CMOS
• Min. Illumination: 0.00003Lux
• Shutter: Rolling Shutter
• ISO: 100-25600
• S/N Ratio: >65dB (AGC Off)
• Lens: F1.6 8MP
• FoV: 162° Diag.
• Aspect Ratio 16:9
• Image Menu: Supported
• Dimensions: 24x19x19mm
• Weight: 9g

Vista Module

• Input Voltage: 7.4-26.4V

• Output Power: 25mW / 200mW / 500mW / 700mW
• Dimensions:
• Vista: 30x29x13mm
• Coaxial Cable: 120mm
• Antenna: 105×11.2mm
• Weight: 28g (+1.5g for Antenna)

Includes

• 1x iFlight BNF Nazgul5 HD 4S 5″ Quad w/ Caddx Vista & Polar Camera – TBS
