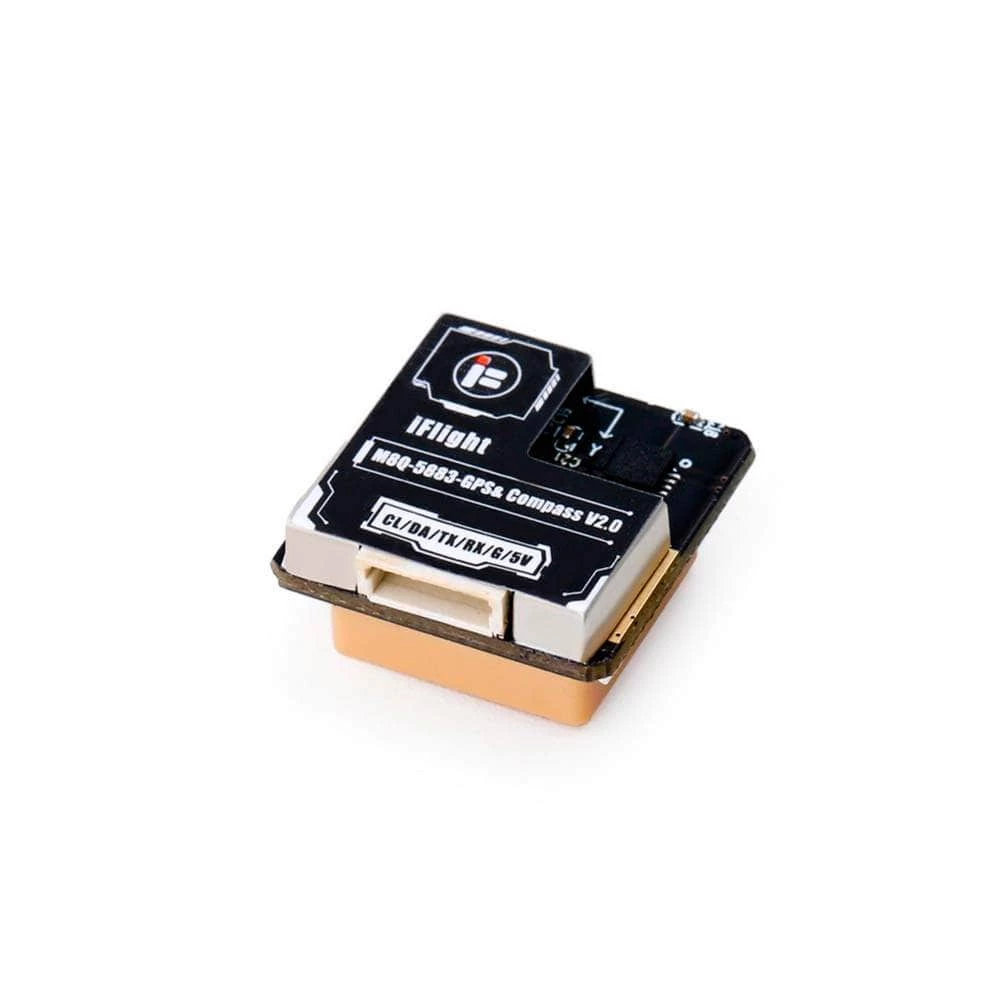

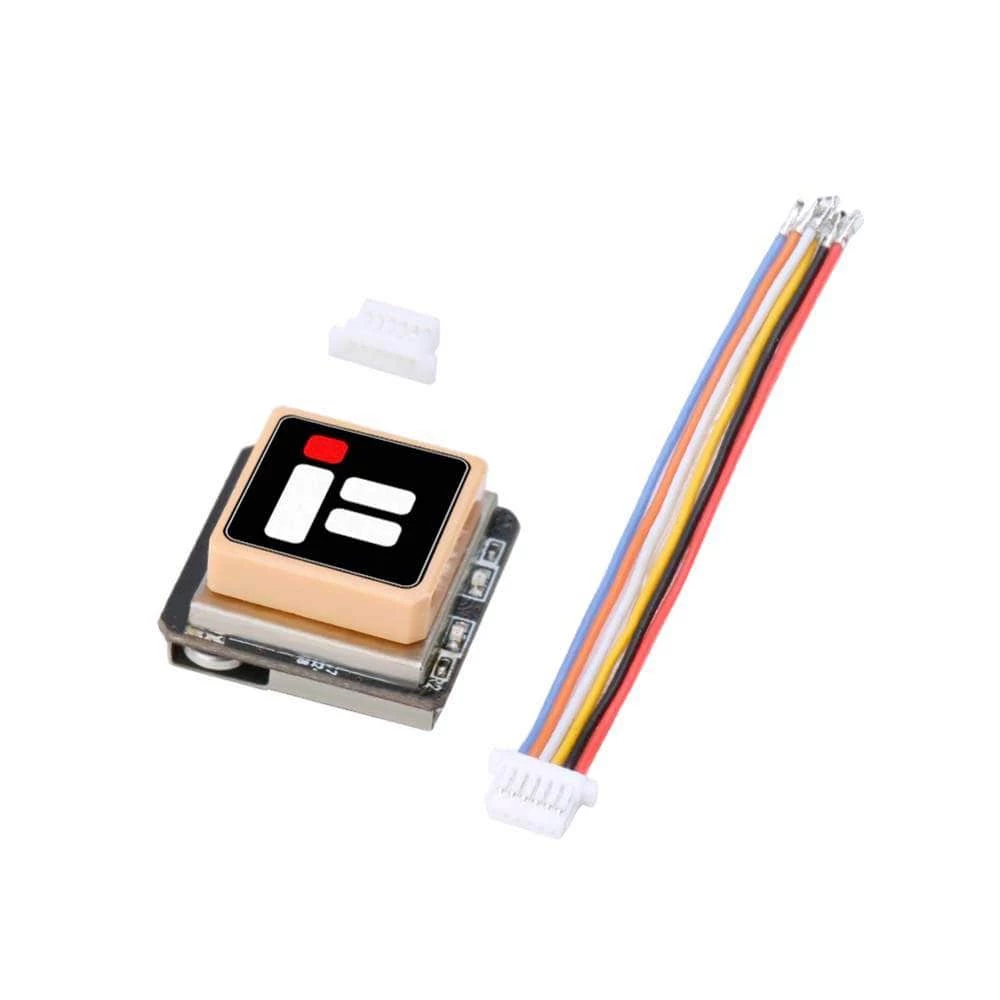

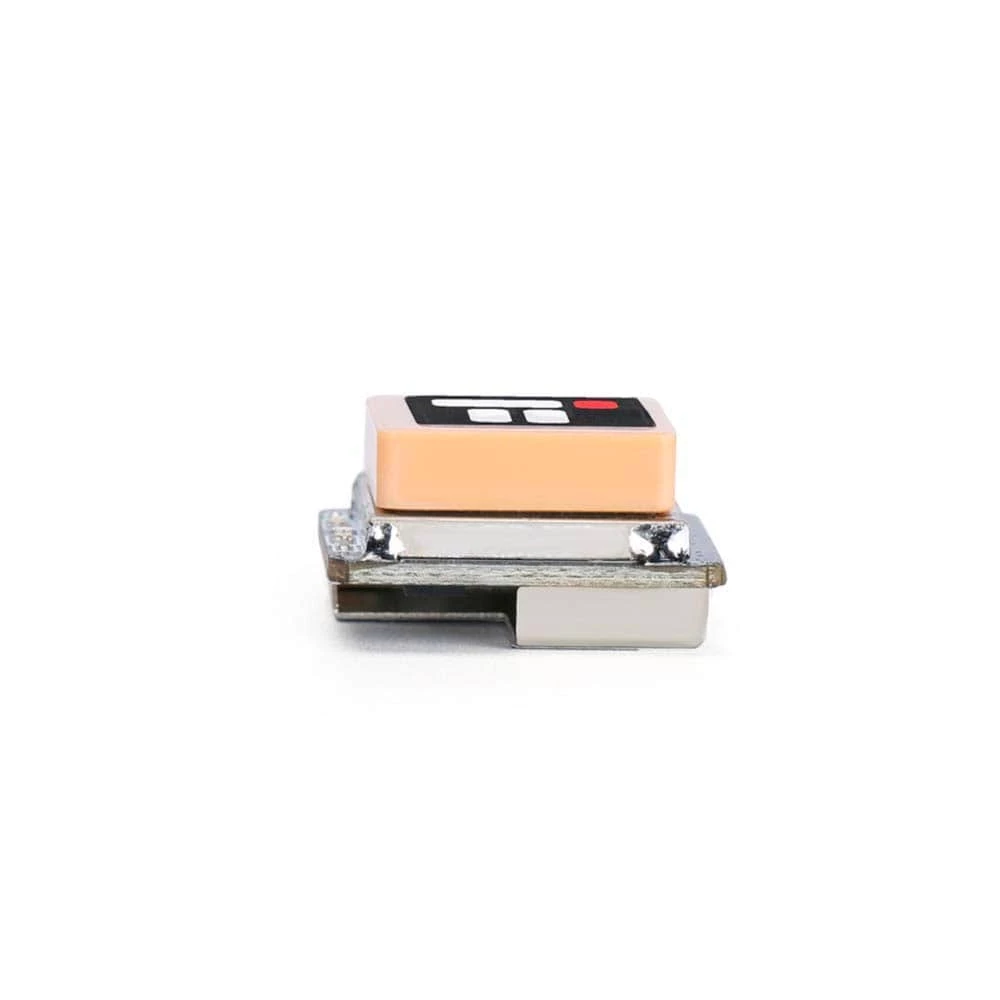

New 🔔 New IFlight M8Q-5883 V2 GPS 🛒

Never lose a model when you add a GPS! This will help locate your model, as well as provide live data about your flight.

Check out our other GPS modules, as well as the rest of our iFlight selection!

Specifications

• GPS module: GPSSAM-M8Q
• Frequencies： 72 channel
• Compass module: QMC5883L
• Baud Rate：4800bps-115200bps (Default – 9600bps)
• Sensitivity
• Tracking: -162dBm
• Capture: -160dBm
• Cold Start：-148dBm
• Cold start：<29s
• Hot start： <2s
• Accuracy
• Horizontal: <2.5m average)
• SBAS: < 2.0m average
• Timepulse: RMS 30ns
• Maximum height: 50.000m
• Maximum speed: 500 m/s
• Speed accuracy: 0.05 m/s
• Maximum acceleration: ≦ 4G
• Refresh Rate: 10 Hz
• GPS patch antenna size: 15×15 mm
• Input Voltage： 3.3V-5V，current 25mA
• GPS pin definition: RX/TX UART
• Compass pin definition: SDA/SLA
• Dimensions：20x20x10.5 mm
• Weight: 8g

Includes

• 1x iFlight M8Q-5883 V2 GPS
