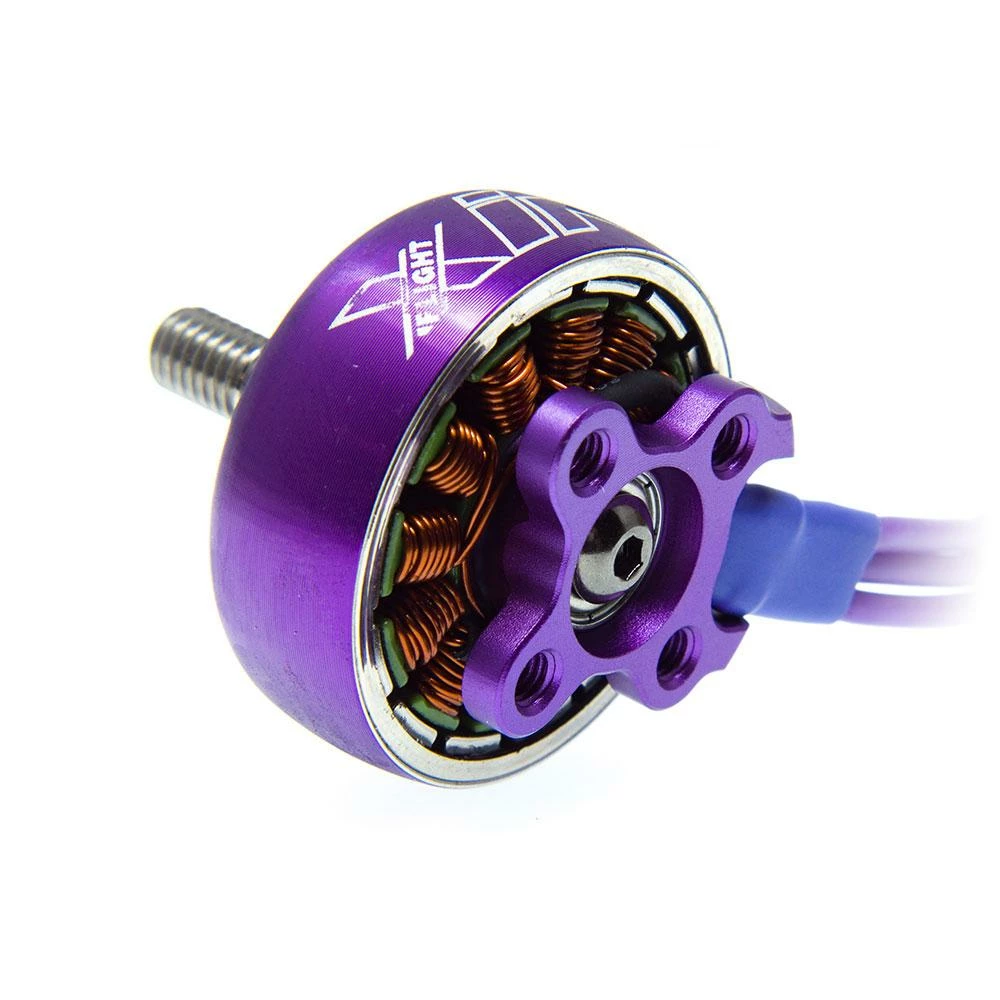

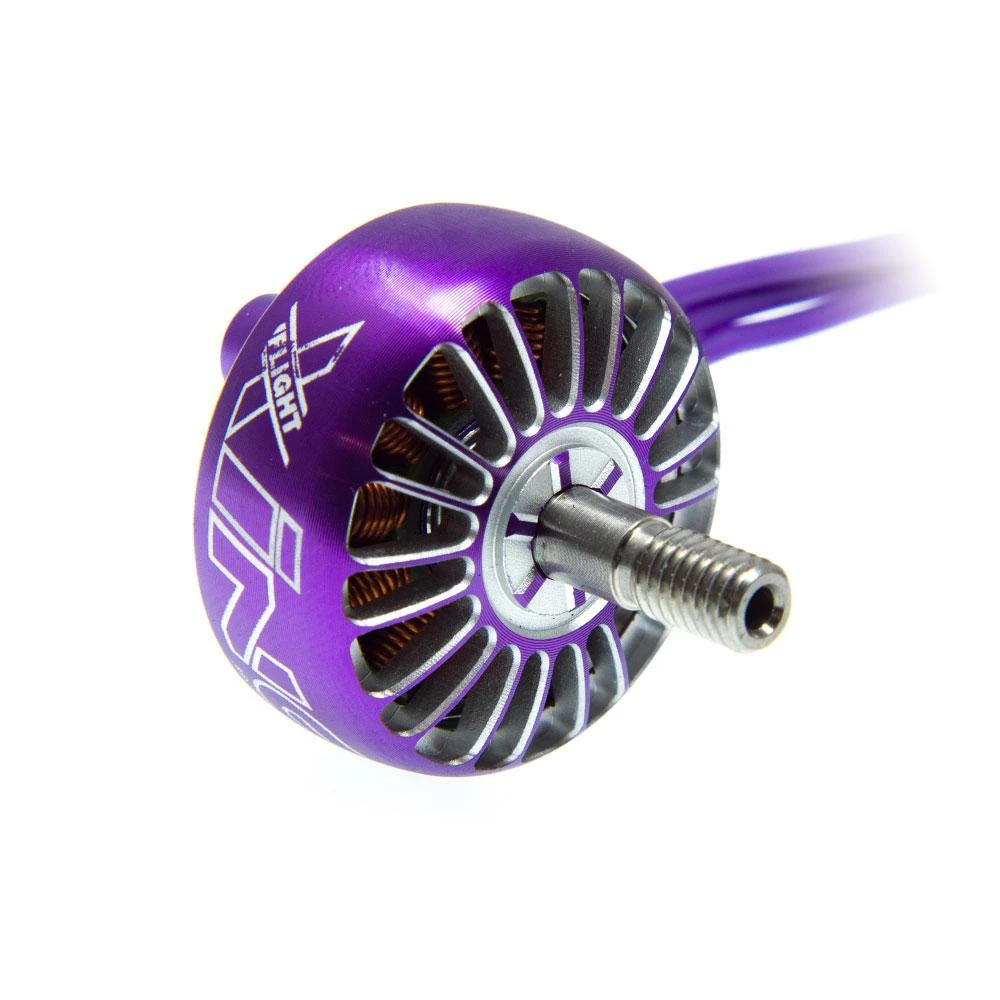

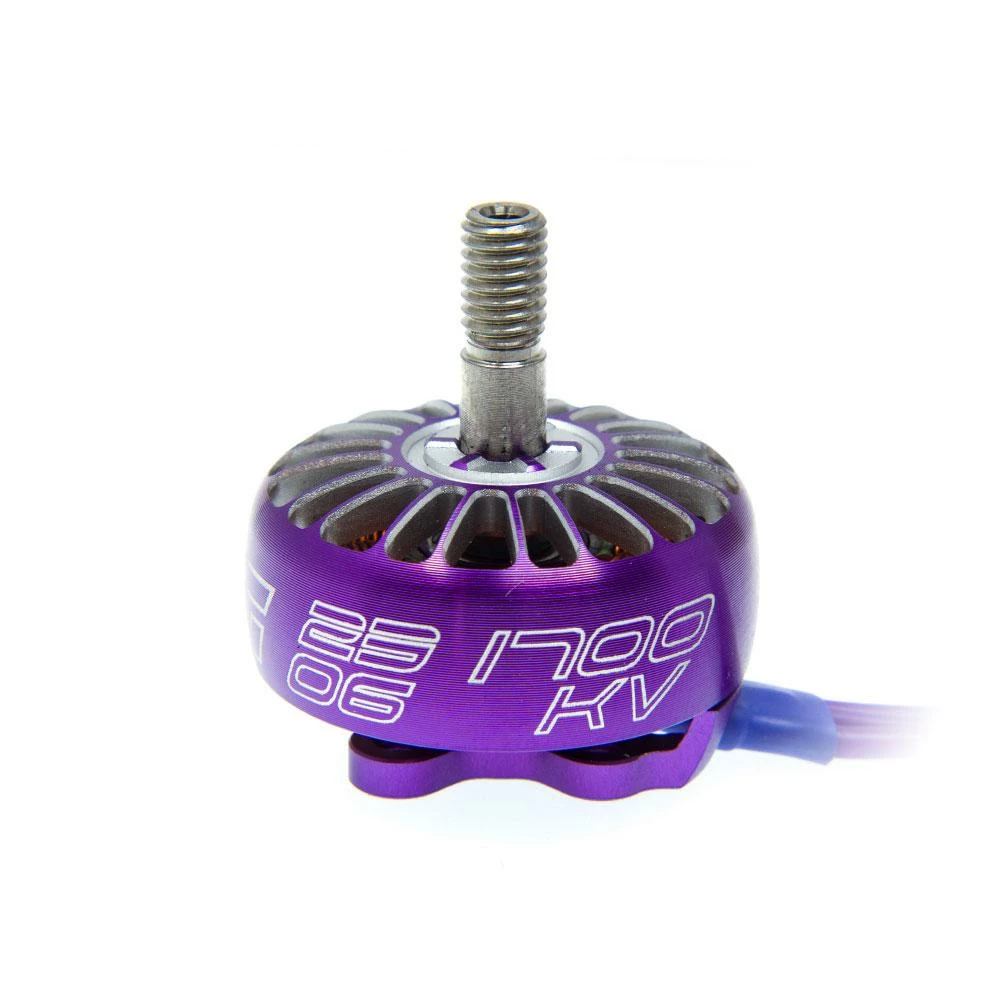

Best reviews of 🥰 New IFlight XING 2306 1700Kv Unibell Motor 🔔

I Flight continues their tradition of producing excellent motors in a variety of sizes and Kv to meet the needs of different build types and flight styles with the iFlight XING 2306 1700Kv Unibell Motor. They’re not just some of the best-looking motors around. A high-strength titanium alloy shaft, quality bearings and N52H magnets, and precision machined bell and base are just a few features of the XING series.

Now featuring a new “unibell” solid 1 piece bell design!

Check out the rest of the specs below, and be sure to browse the rest of our iFlight products and vast motor selection.

Features

• Elliptical Body, High-strength Titanium Alloy Shaft
• Large Heat Dissipation Hole Design (15℃ cooler than same range motor)
• Crush resistant damping bearing eliminates vibration effectively
• 50%-80% optimal throttle output for best efficiency
• 160mm cable length for different frames and setups
• CNC high precision machined 7075 aluminum bell and base
• 220℃ Pacific heat resistant copper wire, solid wire windings
• Electromagnetically matched magnets and stator
• Japanese Kawasaki 1200 iron core
• N52H high temperature magnets
• Motor wire protected
• Hex bolt shaft set screw
• Dynamically balanced

Specifications

• Kv: 1700
• Input Voltage: 3-6S
• Configuration: 12N14P
• Max Continuous Current: 37.2A
• Internal Resistance: 76.4mΩ
• ldle Current@10v: <1A
• Motor Dimensions: Φ29.5×18.7mm
• Stator Dimensions: Φ23×6mm
• Prop Shaft Dimensions: M5x13.5mm
• Shaft Diameter: 4mm
• Wire Dimensions: 20AWG×160mm
• Mounting Pattern: Φ16mm, 4×M3
• Weight (w/ wires): 33.1g

Includes

• 1x XING X2306 1700Kv Motor
• 1x Hardware Set
