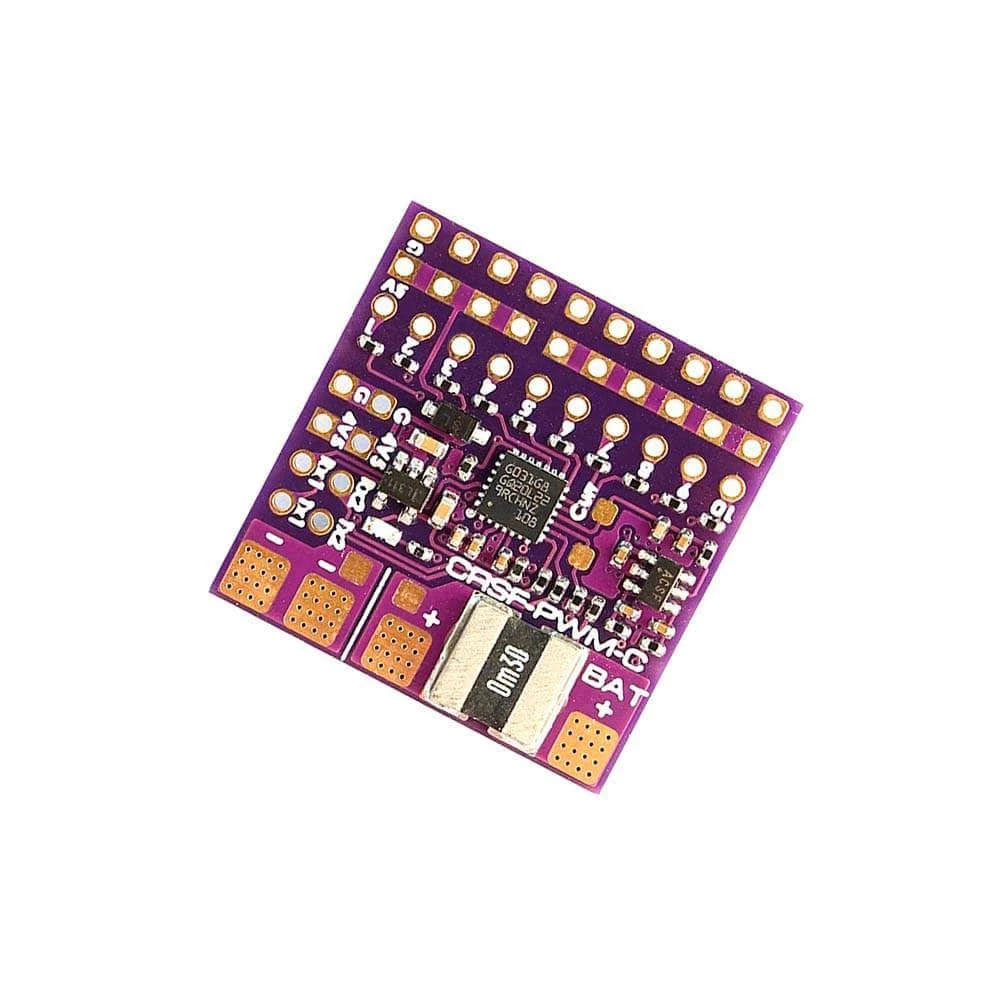

Wholesale ✨ New Matek CRSF-PWM-C CRSF To PWM Converter ✨

If you want to use your crossfire with a PWM system then Matek has the solution that you’ve been waiting for. This board allows you to attack your CRSF receiver and use PWM pins to connect to your wing or plane. Perfect for those who want the stability of a plane or wing, but also want the dependable long range of the crossfire.

Check out the rest of our transmitters and accessories. as well as all of our Matek selection!

Specifications

• Compatible with CRSF protocol receiver only
• Support any CRSF protocol receivers(including 433MHz, 868MHz, 915MHz, 2.4GHz)
• 10x PWM outputs
• PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
• 2x UARTs (for Receiver and GPS)
• Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
• 36V Max. battery voltage sense (1K:10K voltage divider built-in)
• Current sensor built-in (90A continuous /220A Peak),  current scale = 150 by default
• Vbat and Current sensor scale configurable
• Failsafe value auto set
• Firmware upgradeable
• Rated voltage: 4~9V @5V pad, 0~36V @BAT+
• No 5V regulator built-in
• 26mm x 26mm, 2.8g
• Packing: 1x CRSF-PWM-C,  1x low ESR capacitor,  Dupont 2.54 pins

Includes

• 1x Matek CRSF-PWM-C CRSF to PWM converter

Wiring Diagram
