These Irons come equipped with the tip of your choice and include an XT60 cable and bakelite stand!
Images may not reflect tip type

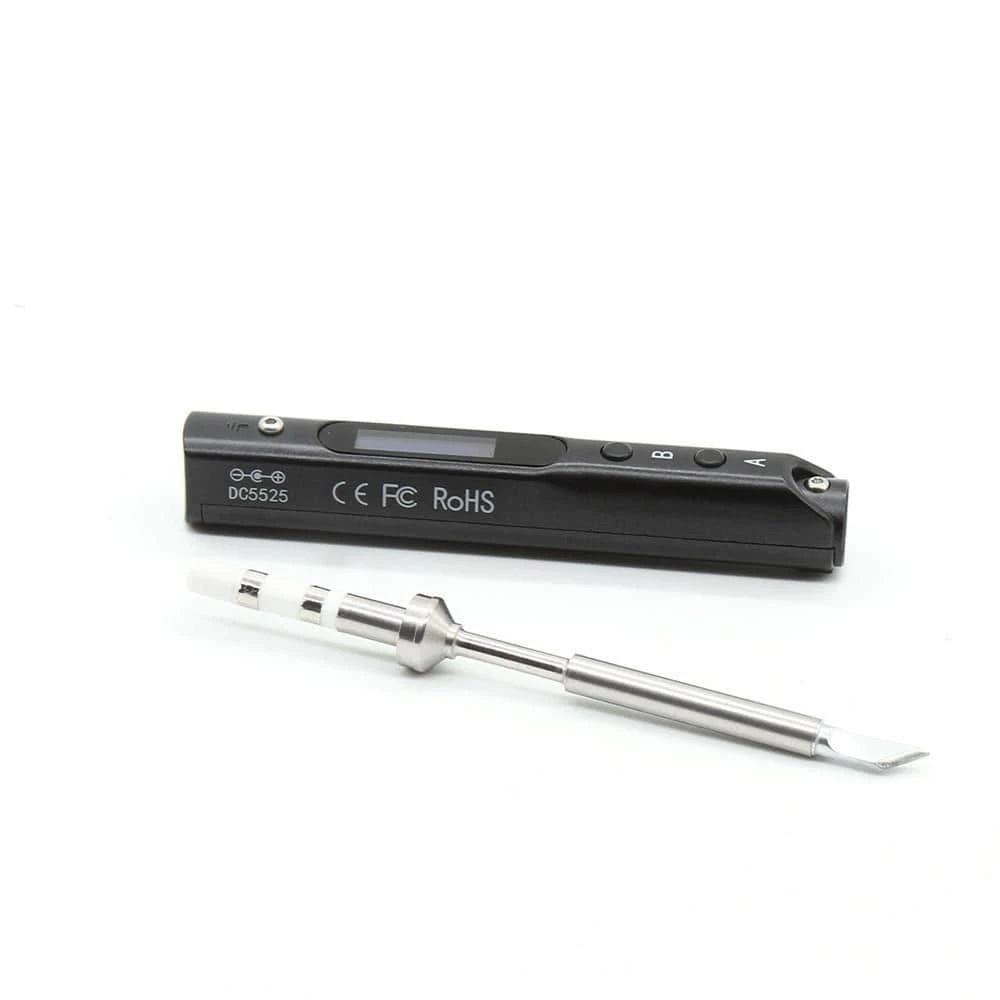

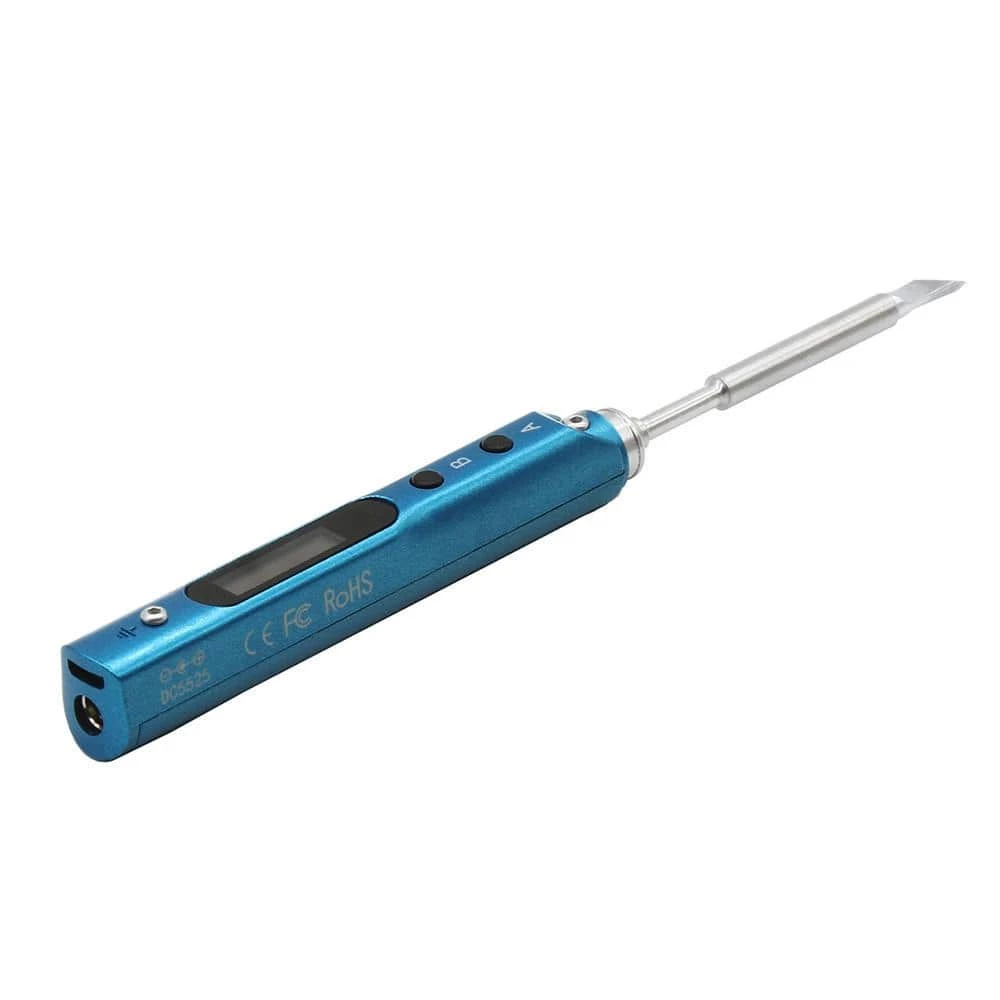

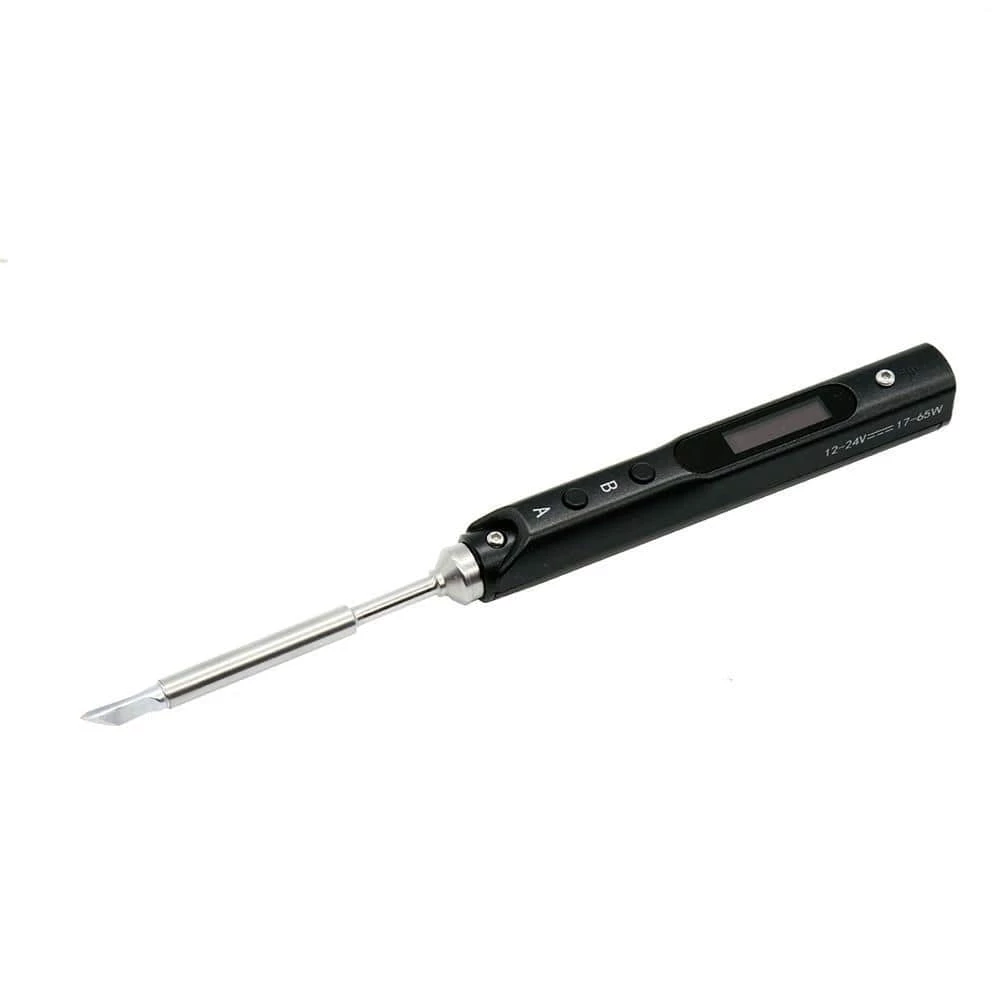

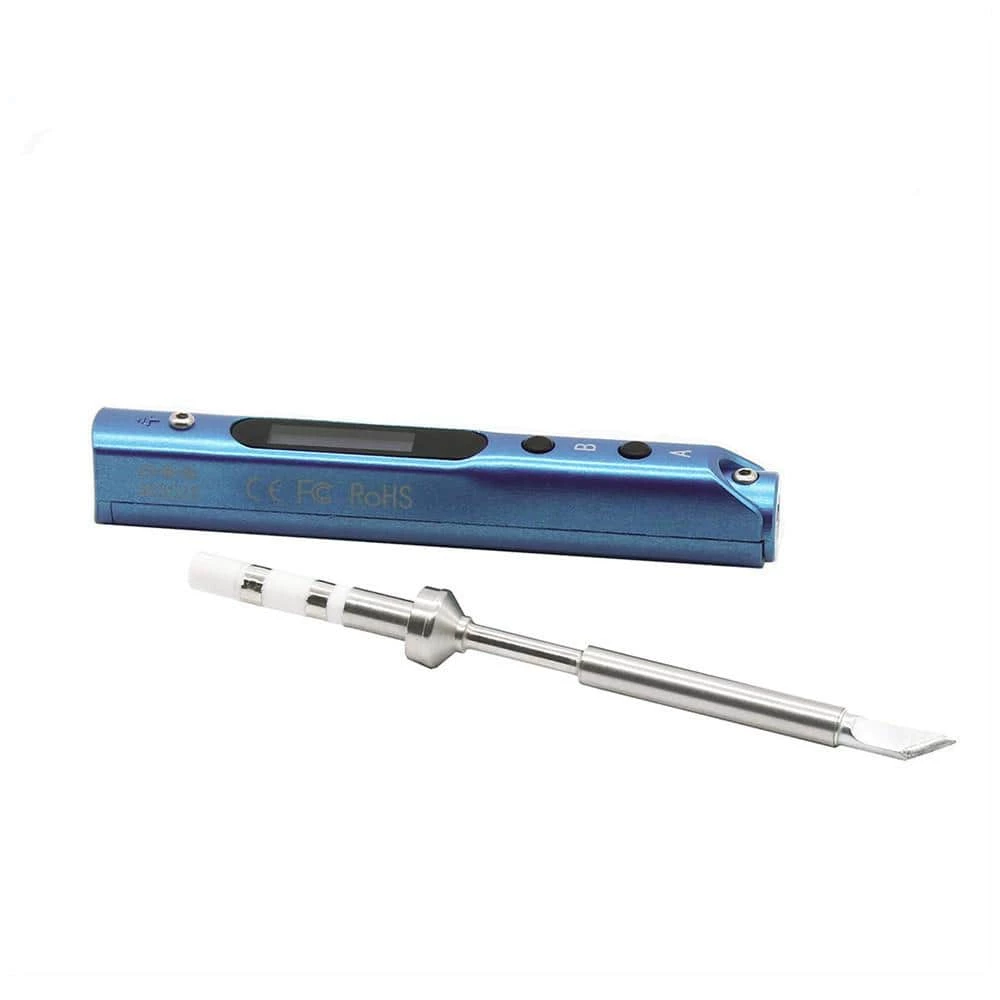

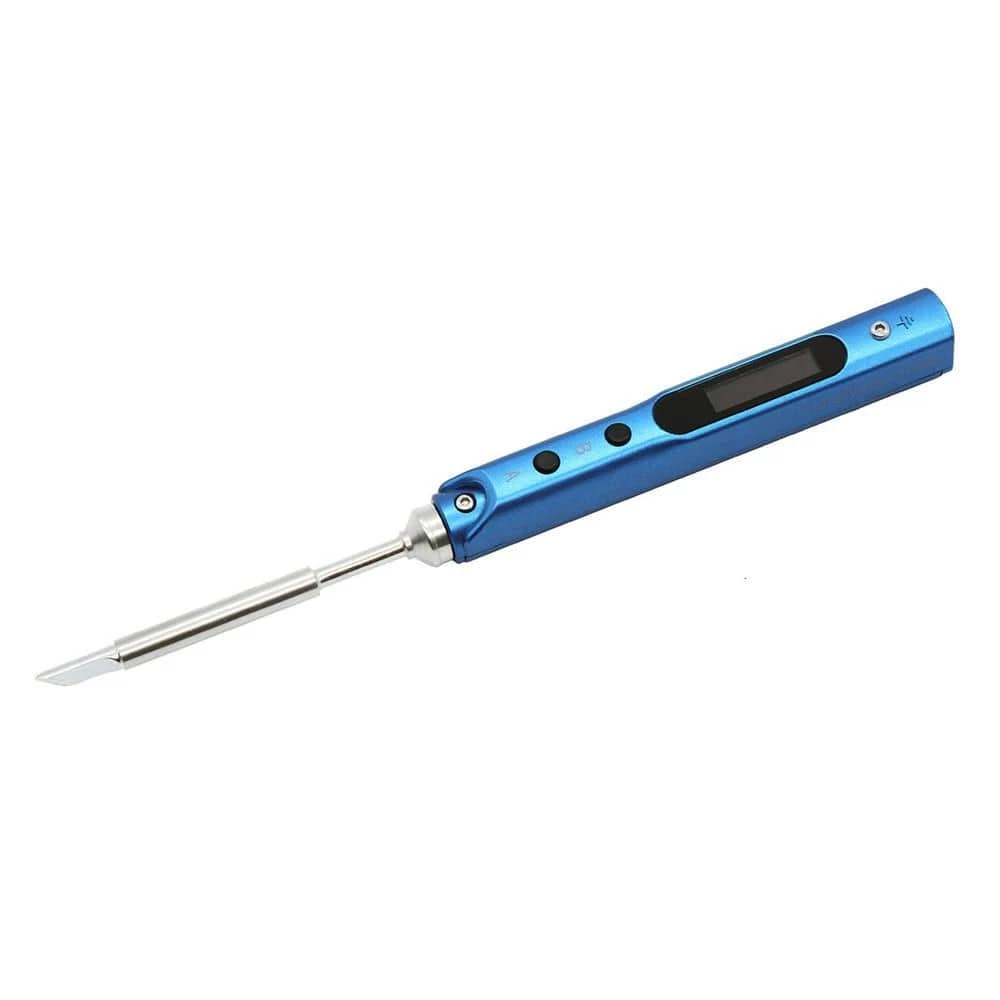

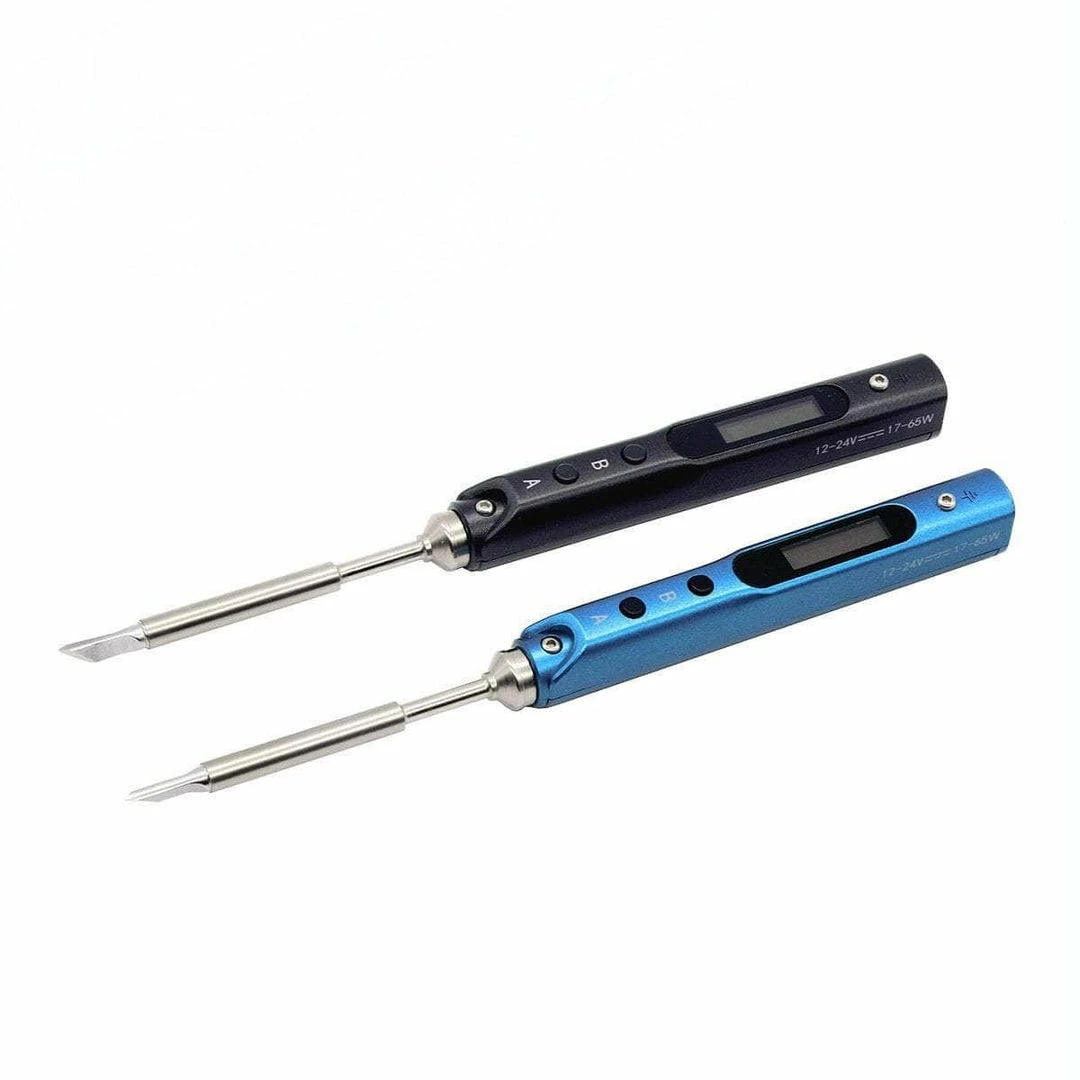

The SQ-001 features the same familiar lightweight design that’s easy to assemble and use, easy to disassemble and store, comfortable to handle, easy to operate, and highly efficient! It’s a cheaper alternative to the TS-100, that’s great for any field kit or bench!
It operates on 12-24V DC. Featuring OLED screen and two key temperature adjustment. When powered from DC 19V 40W it takes only 15 seconds to reach 300 ℃!
We still carry the original TS-100 Soldering Iron!
Check out all our soldering equipment and our Sequre gear!
The upgraded parts between SQ-001 & TS100:
- 1.Material: Upgraded 304 stainless steel nested ABS + PC shell (more environmentally friendly and better feel)
- 2.Firmware: This upgraded version (flashing the latest and most stable firmware can intelligently control the temperature between 100-400 degrees, the temperature is more stable)
- 3.Handle: The back of the handle is round and the front is smooth.(it is close to a cylinder, the welding is comfortable, and the design is more user-friendly
- 4.Button: This upgrades is round shape
- 5.Double Side: Full screen printing (full screen printing upgrade)
- 6.This version includes a free bakelite soldering iron frame & power cord!
Controller:
SQ-001 is based on 304 stainless steel nested ABS + PC shell, Integrated special power interface, Safety circuit design, Antistatic structure.
The perfect combination of embedded STM32 processor, dual temperature sensor and acceleration transmitter.
Make SQ-001 realize intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over temperature alarm and other functions.
Heating end
The heating end adopts internal heating core
Factory preset temperature: 300 ℃
Temperature stability range: ± 2%
External independent power supply: DC 5525 power interface, suitable for DC 12-24v notebook power supply, vehicle power supply and mobile power supply.

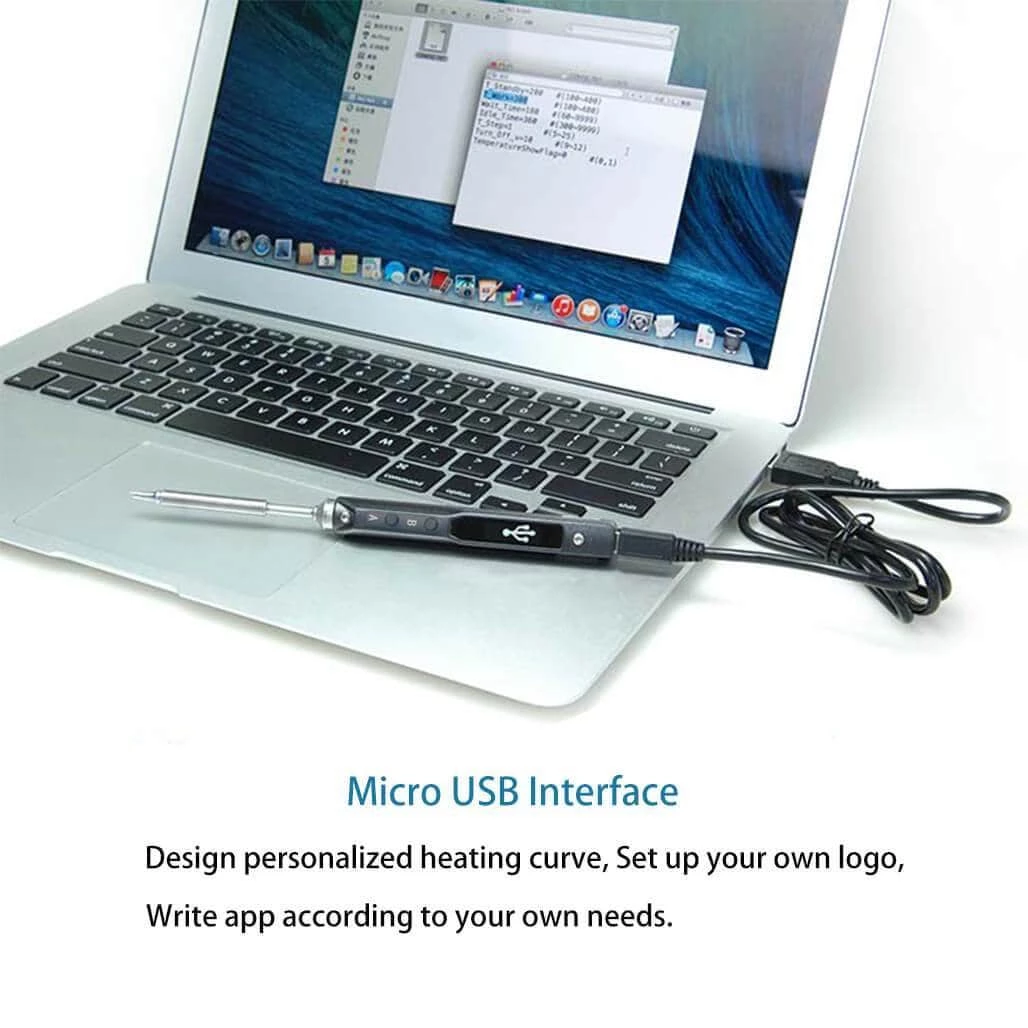

Micro USB interface: set temperature rise curve, user defined function key and firmware upgrade function through parameter file.
Additional functions: application layer open source design. You can change the internal parameter settings according to your own needs to meet more and more performance needs of different customers.
Safety Instructions
- 1. Please use ground clamp, proper power supply and other accessories to ensure safe use.
- 2. When SQ-001 is used for the first time, it may slightly smoke due to heating of electric heating element, which is normal Phenomenon.
- 3. If SQ-001 is used continuously for more than 350 ° C for 40 minutes, the handle temperature of soldering iron will reach 50°C~60°C.
- 4. When SQ-001 temperature rises, do not contact the iron head to avoid scalding.
- 5. When SQ-001 is powered on, the iron head cannot be replaced.

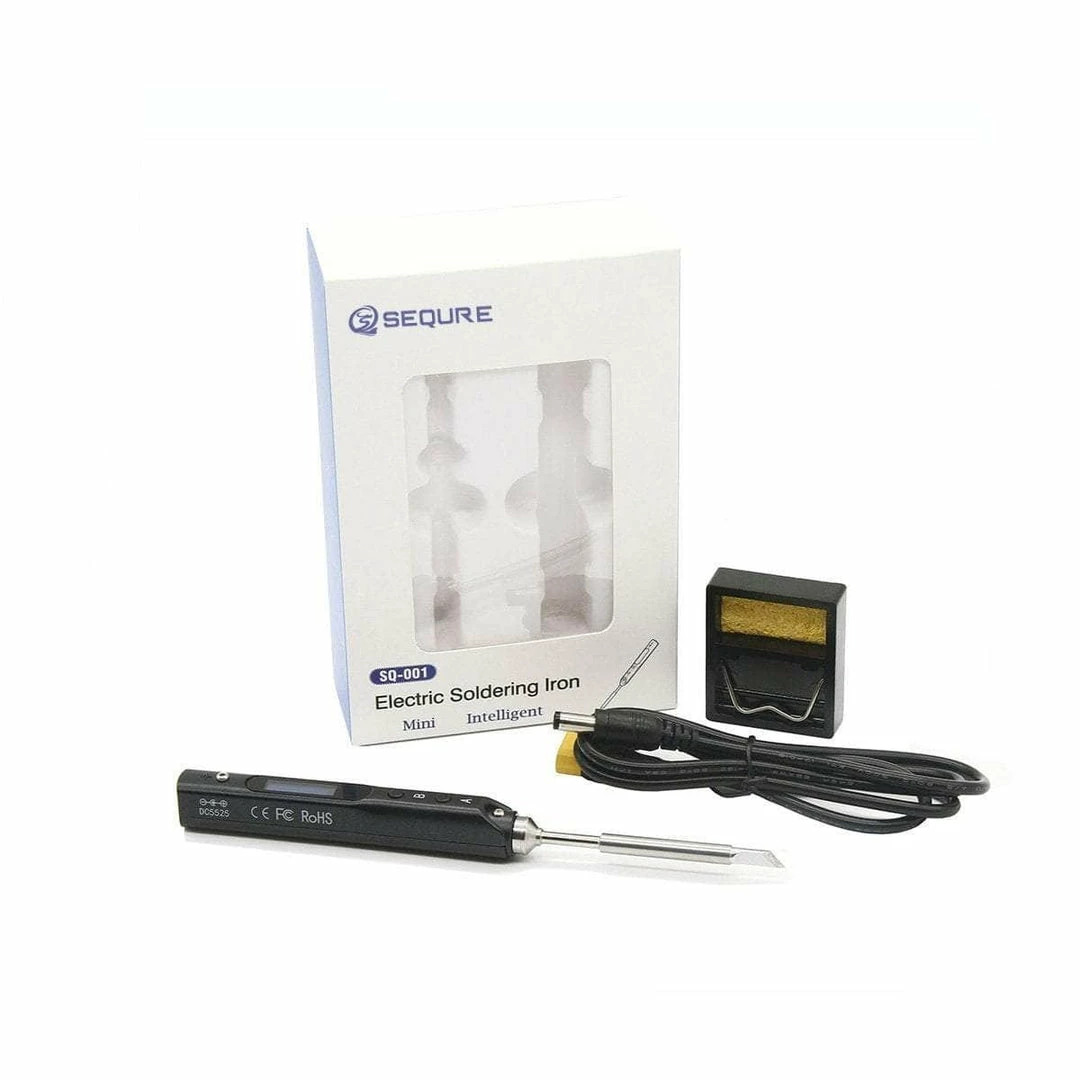

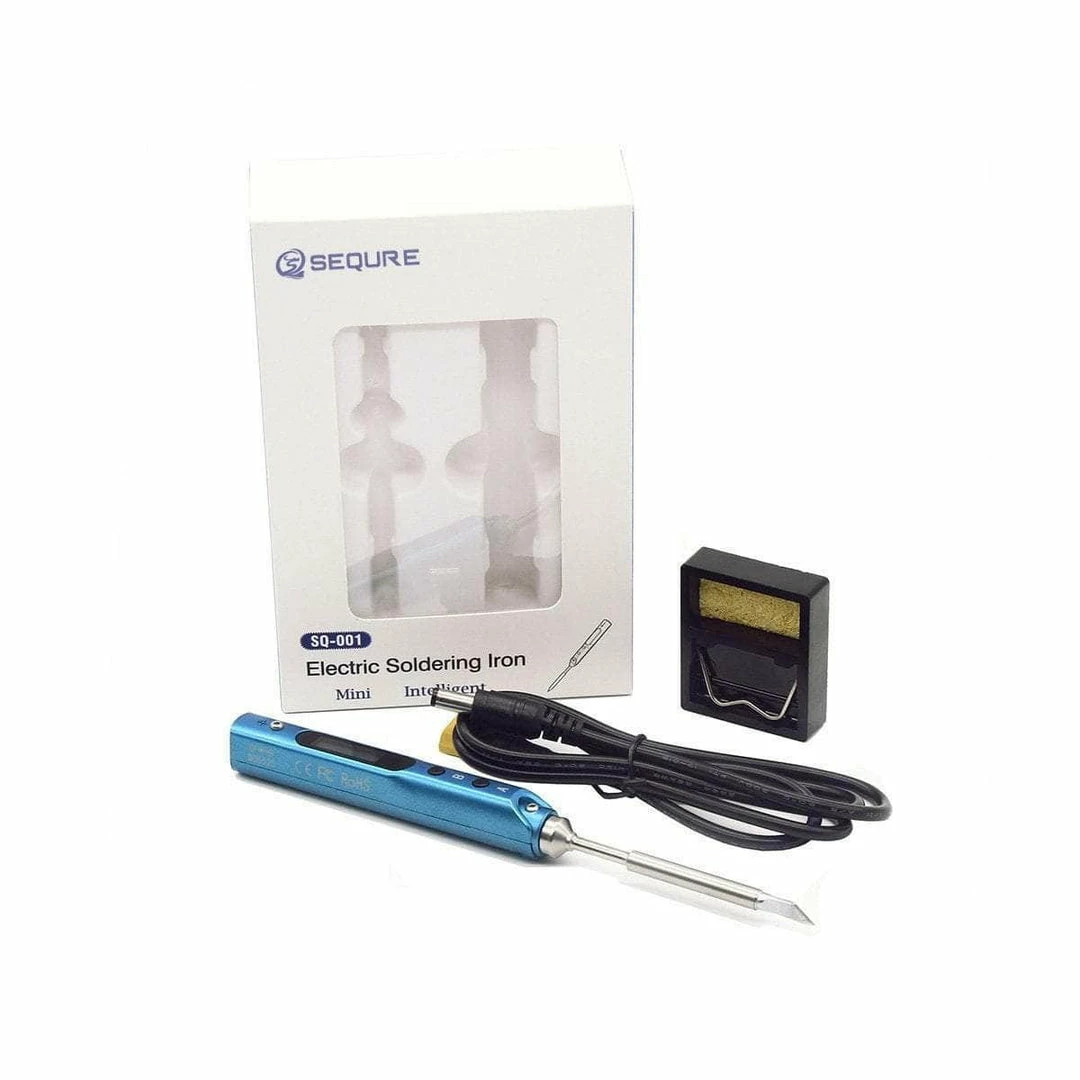

Includes
- 1x SQ-001 Controller
- 1x Your Choice of Solder Tip
- 1x Safety Instructions
- 1x Hex Key
- 1x User Manual
- 1x DC5525 XT60 Power Cable
- 1x Mini-bakelite Stand Holder
| Color | Blue |
|---|---|

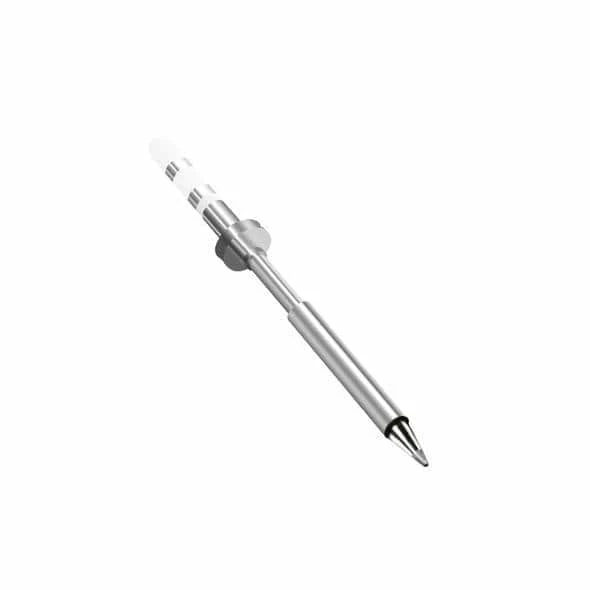

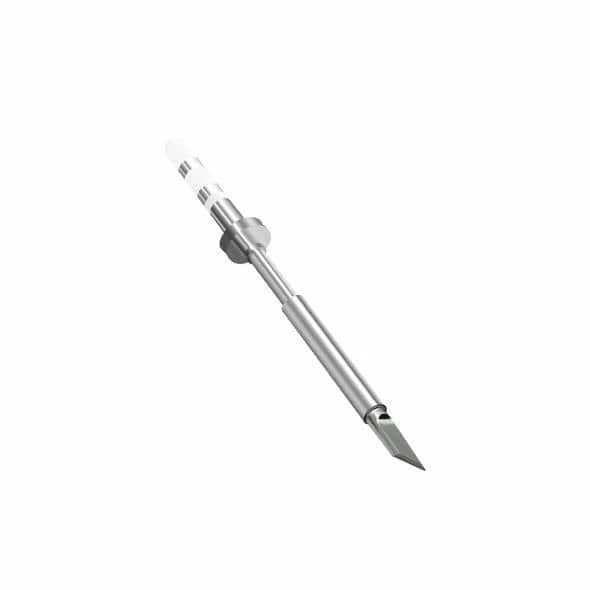

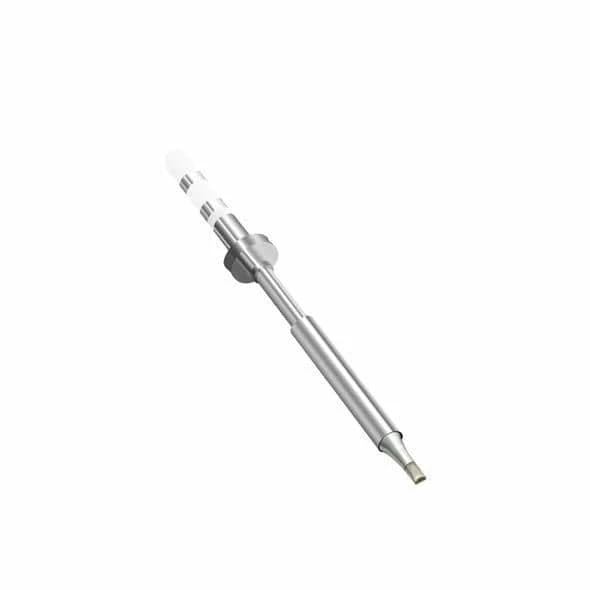

| Tip | TS-B2, TS-D24 |
