New 🎉 SkyStarsRC F405 HD2 3-6S 30×30 Flight Controller New 😀

The all-new SkyStarsRC F405 HD2 flight controller is compatible with Betaflight and INAV Firmware.  This flight Controller also comes equipped with a powerful BEC to regulate all that power to your  DJI connector on the board as well as your nice large solder pads. This FC is safe! Coming in with a TVS Diode for Reverse Polarity and Voltage Spike Suppression it’s ready for whatever you throw at it!

Check out all our 30×30 FCs! and our SkystarsRC collection!

Specifications

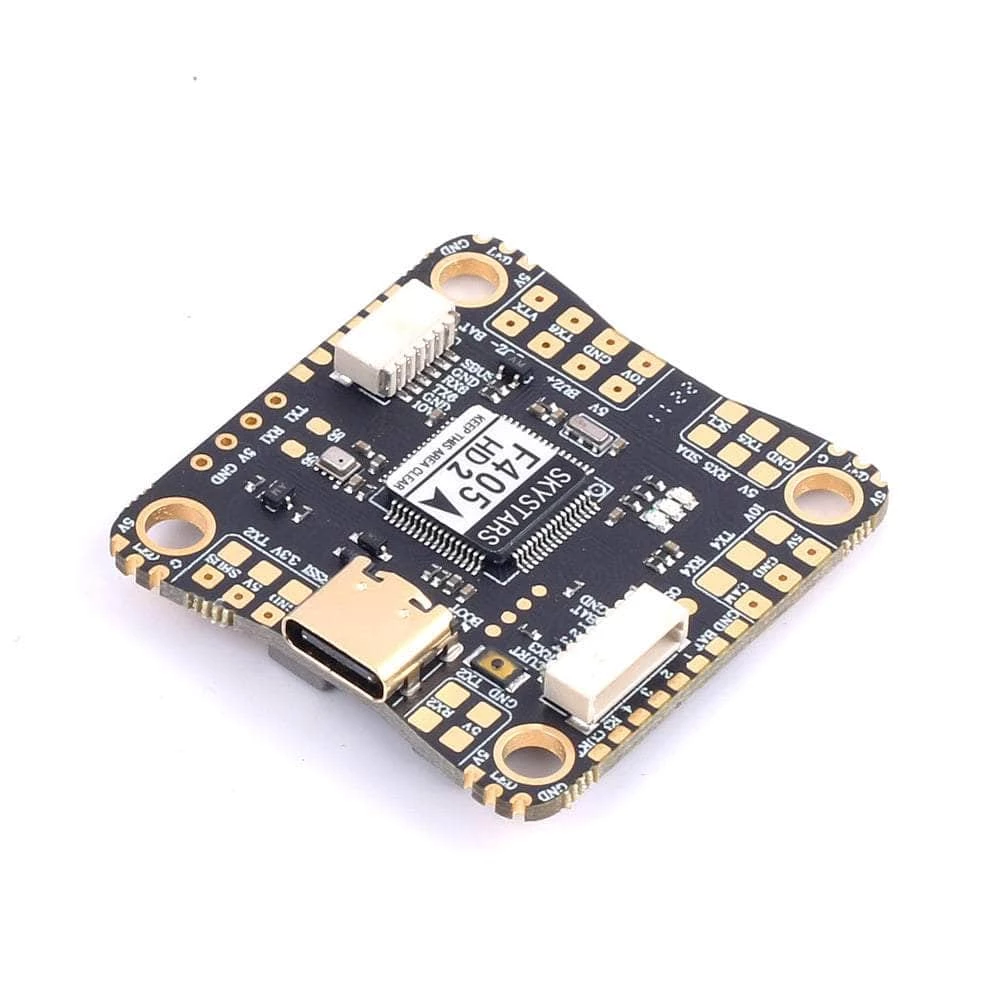

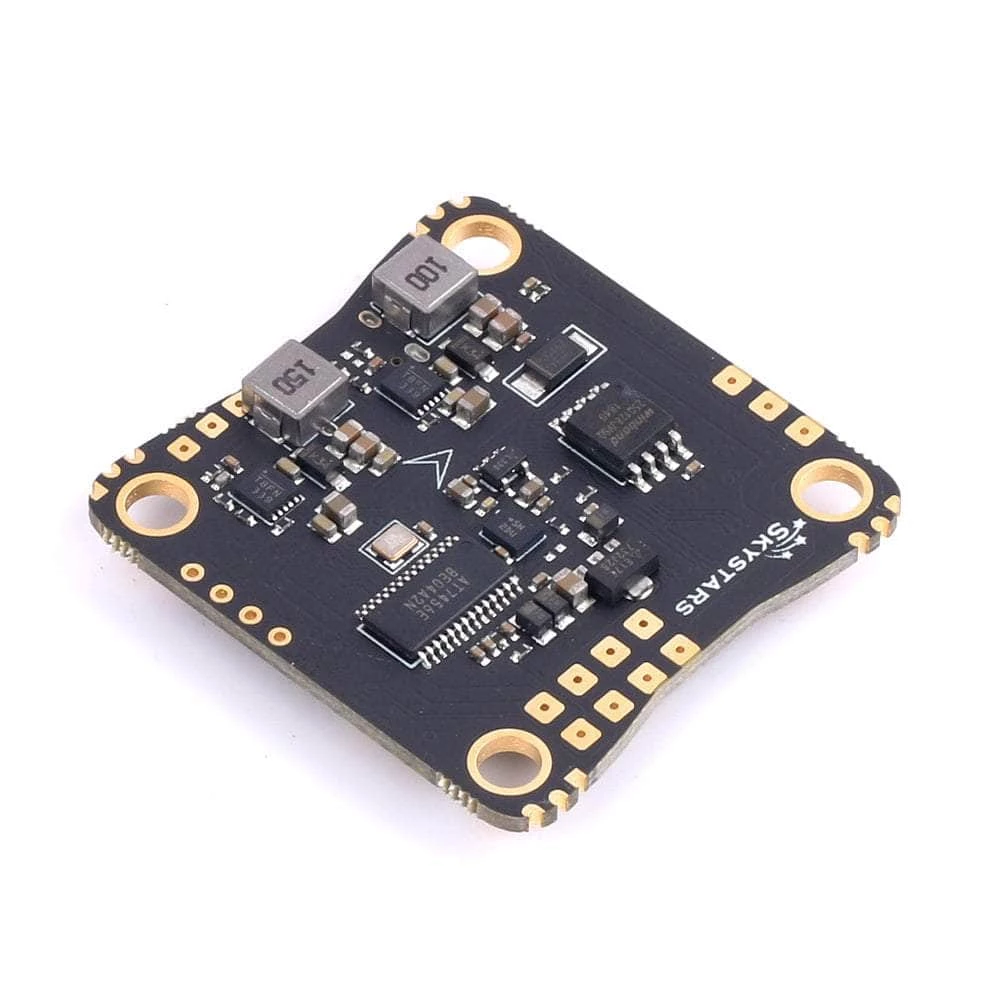

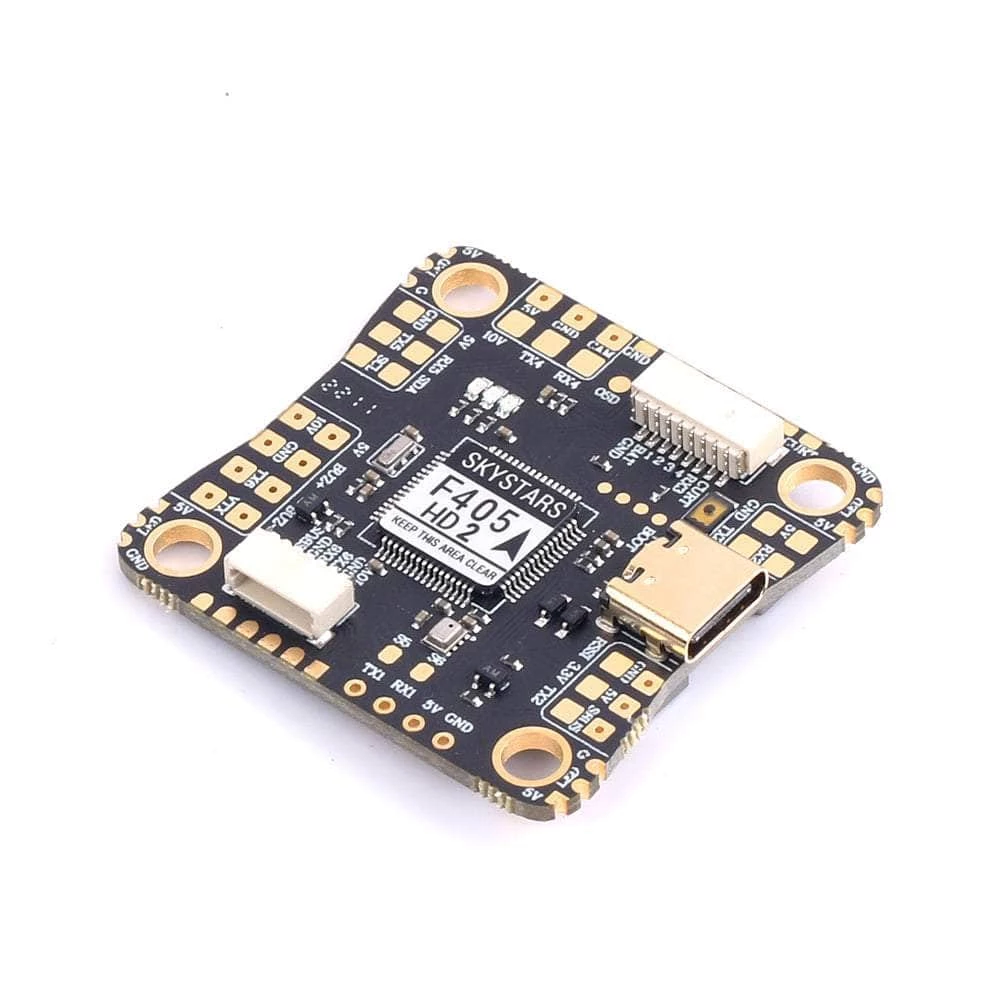

SkyStarsRC F405 HD2 3-6S 30×30 Flight Controller

• MCU: STM32F405
• IMU(Gyro): BMI270
• USB Port: Type-C
• Barometer: Built-In
• OSD Chip: AT7456E chip
• BLE Bluetooth: Supported
• DJI Air Unit Connection: 6-pin connector and solder pads
• Blackbox Micro-SD Card: 32GB max
• Current Sensor: Supported
• Power Input: 3S-6S LiPo
• Power Output: 9V (2A), 3.3V (500mA), 4.5V(1A), 5V(2A)
• ESC Signal: M1-M4available
• UART: 6 Sets
• I2C: Supported
• LED: Supported
• Buzzer: Supported
• Firmware Target: Betaflight: SKYSTARSF405 INAV: SKYSTARSF405HD
• Mounting: 30.5 x 30.5mm ( 4mm hole diameter )
• Dimensions: 41.6(L) x 39.4(W) x 7.8(H)mm
• Weight: 6g

INCLUDES:

• 1x SkyStarsRC F405 HD2 3-6S 30×30 Flight Controller
