The all-new SkyStarsRC F405 Mini HD2 flight controller is compatible with Betaflight and INAV Firmware.  This flight Controller also comes equipped with a powerful BEC to regulate all that power to your  DJI connector on the board as well as your nice large solder pads. This FC is safe! Coming in with a TVS Diode for Reverse Polarity and Voltage Spike Suppression it’s ready for whatever you throw at it!

Check out all our 20×20 FCs and our SkystarsRC collection!

Features

• Solder pads are the largest in the 20mm FC market 10% larger than other FC
• Proper pad spacing to avoid solder bridge
• ESC connector on top-side rather than bottom which makes it easy for repair
• Hybrid design M3 and M2 screw
• TVS Diode for Reverse Polarity and Voltage Spike Suppression
• Powerful BEC
• Pad arrangement is executed in a way that when you twist wires of camera VTX and rx you don’t get any wire overlapping this gives you a uniform twist and clean look
• DJI connector on the posterior end
• Budget-friendly price
• 2 stages of QC to reduce any DOA

Specifications

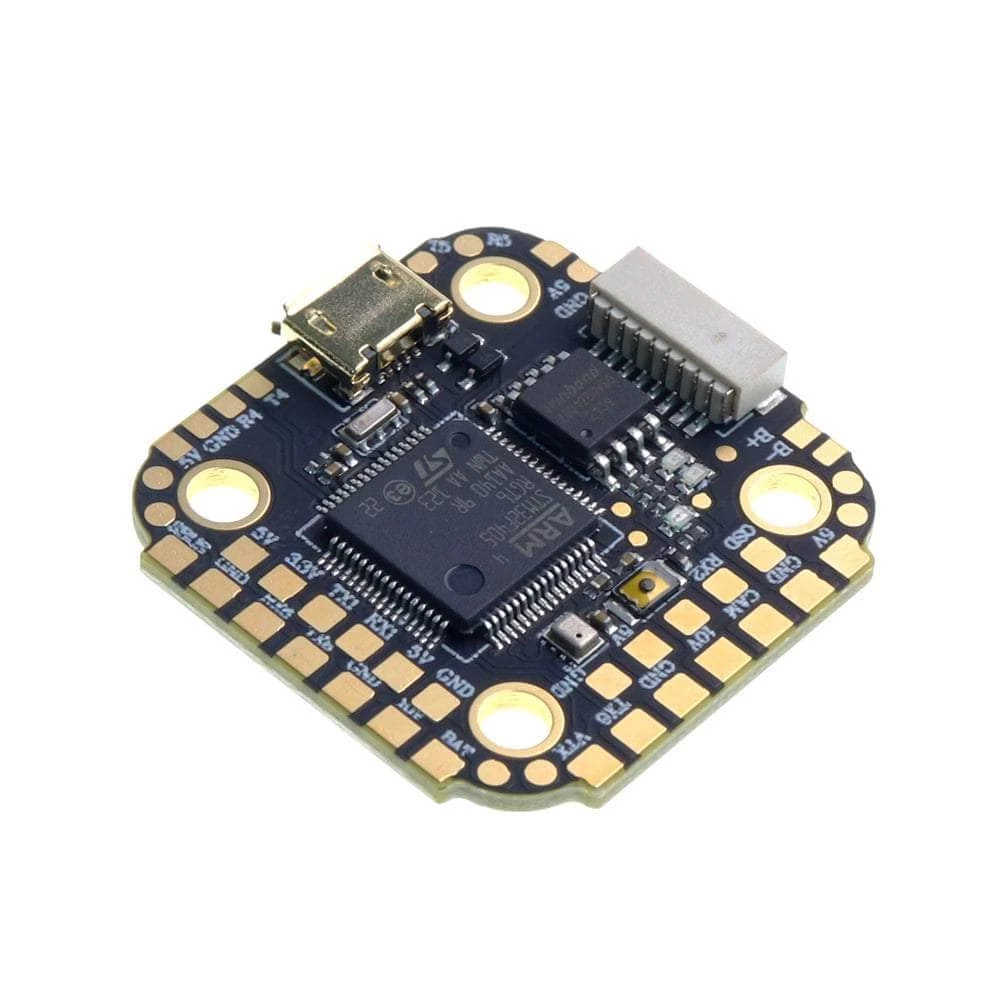

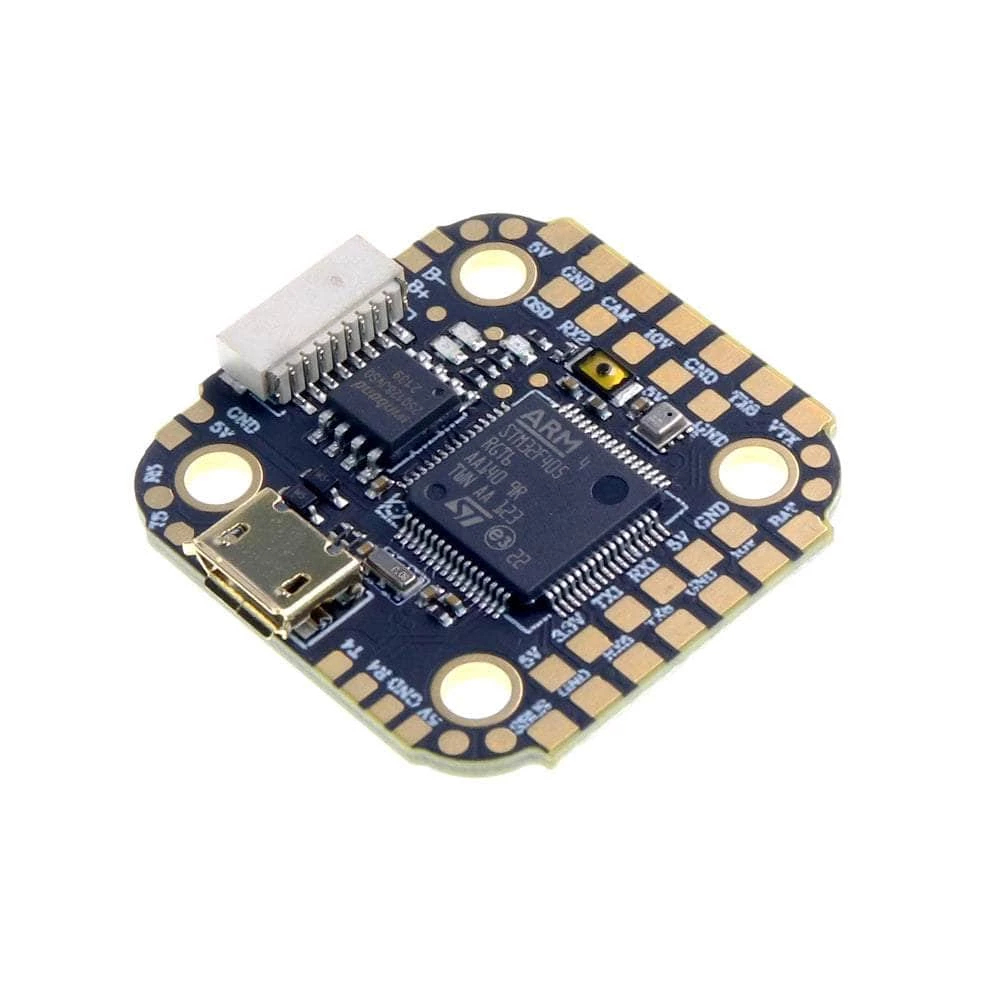

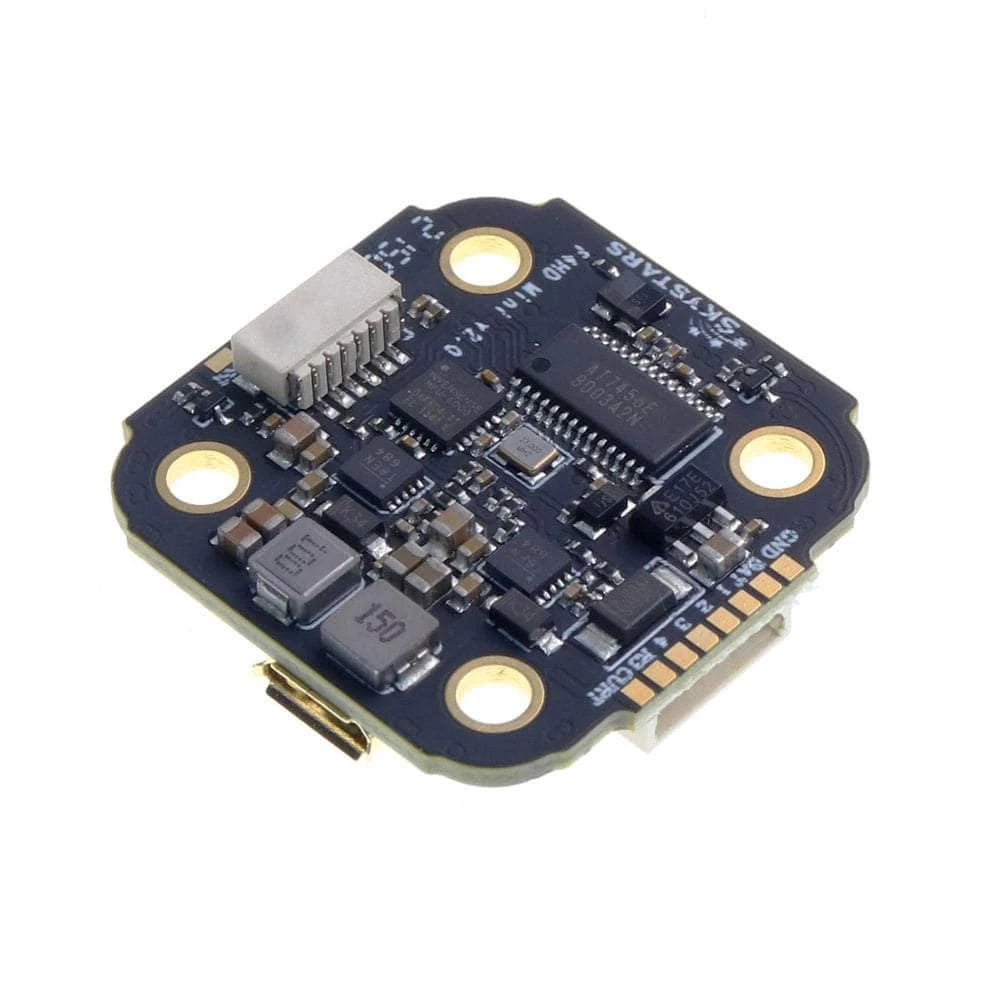

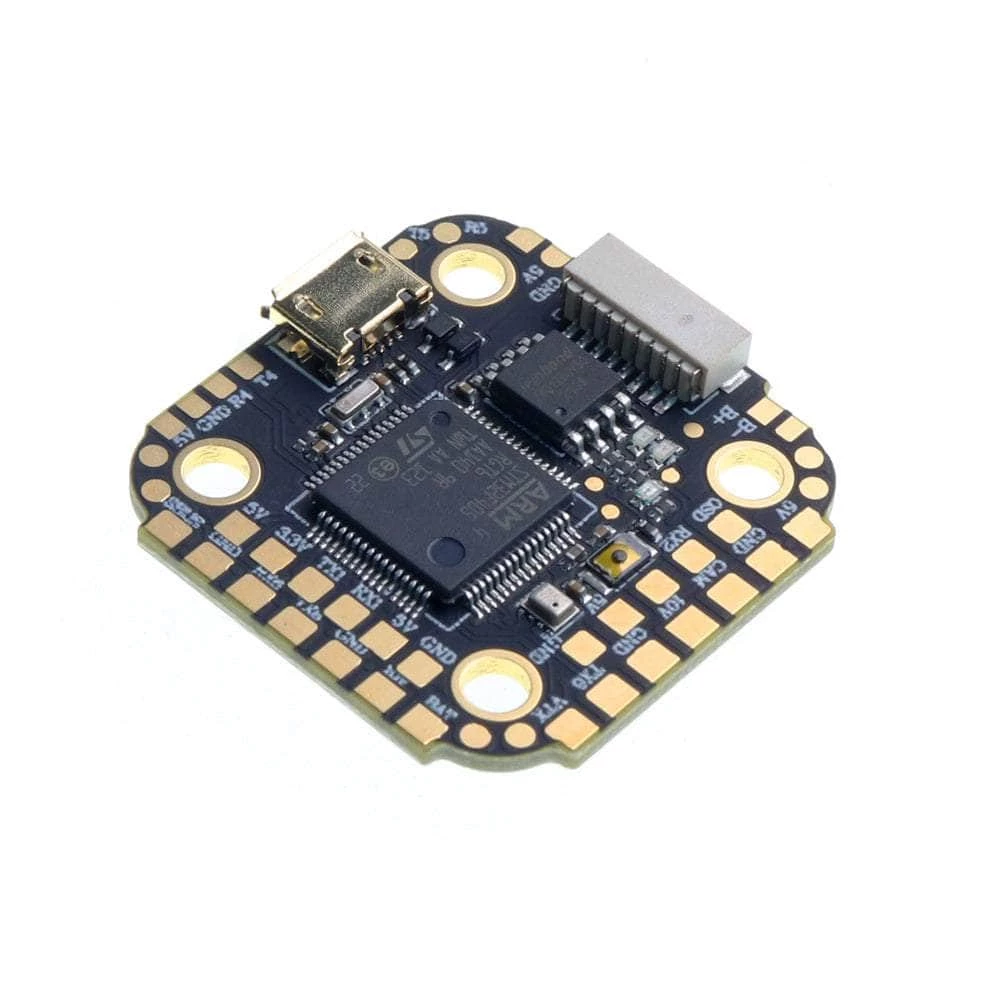

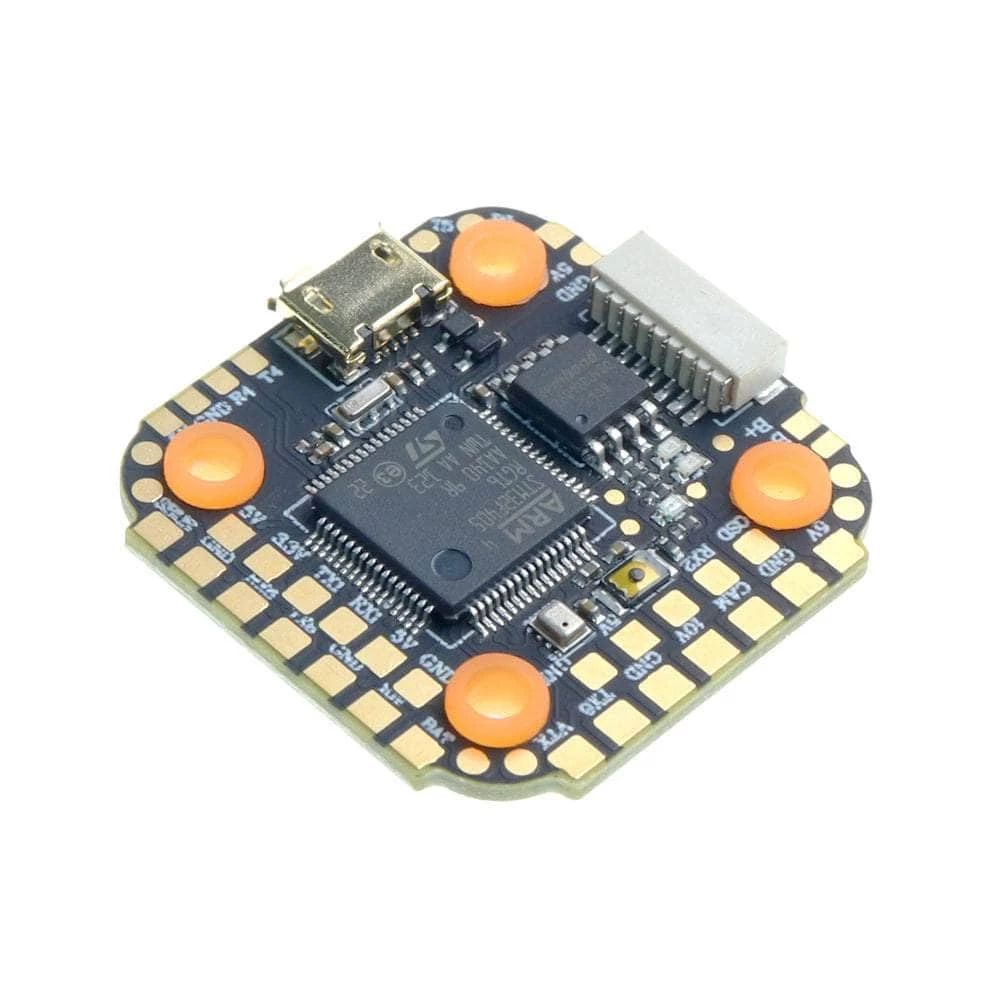

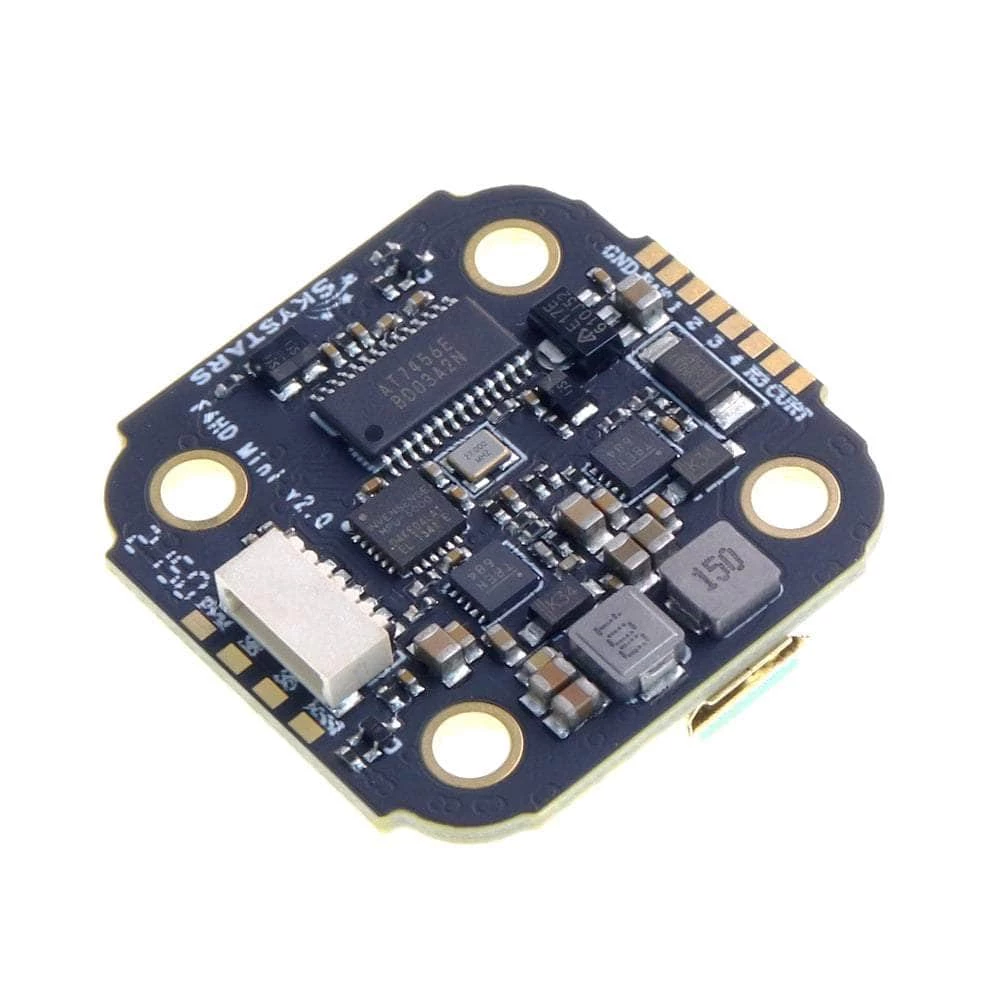

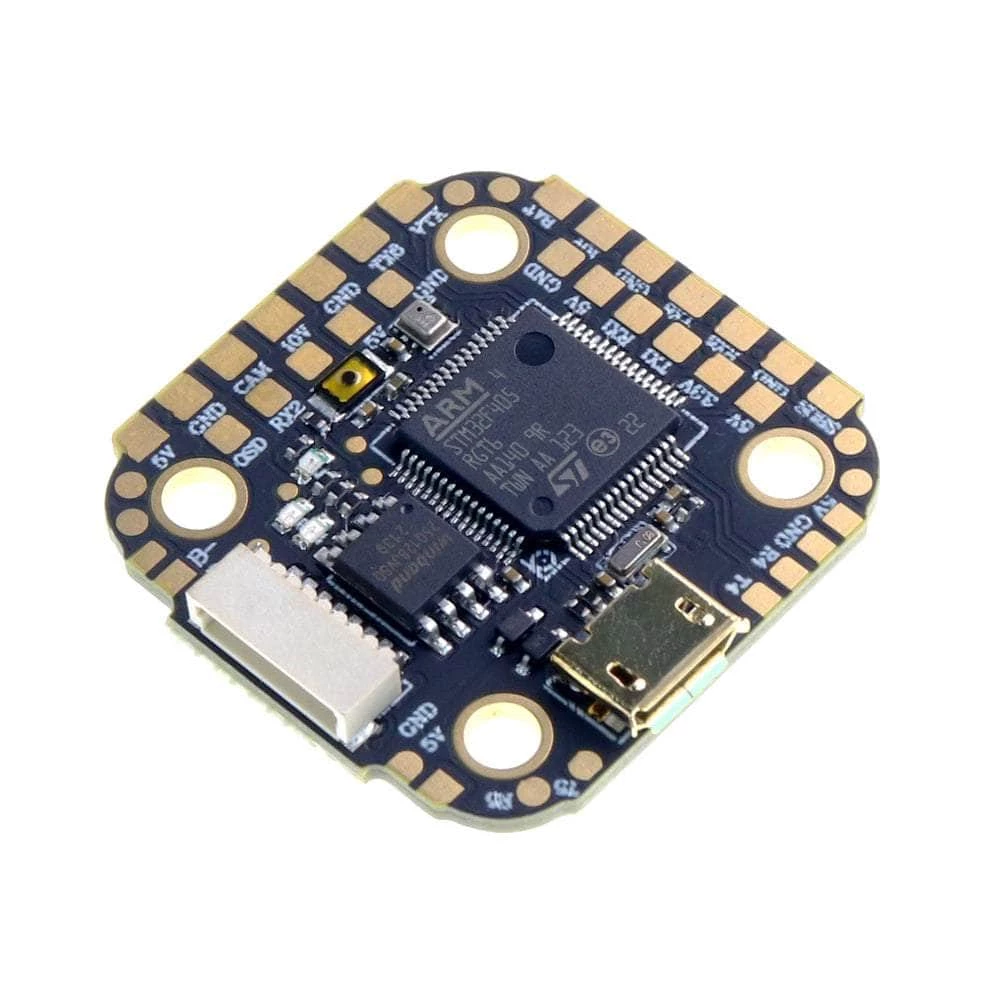

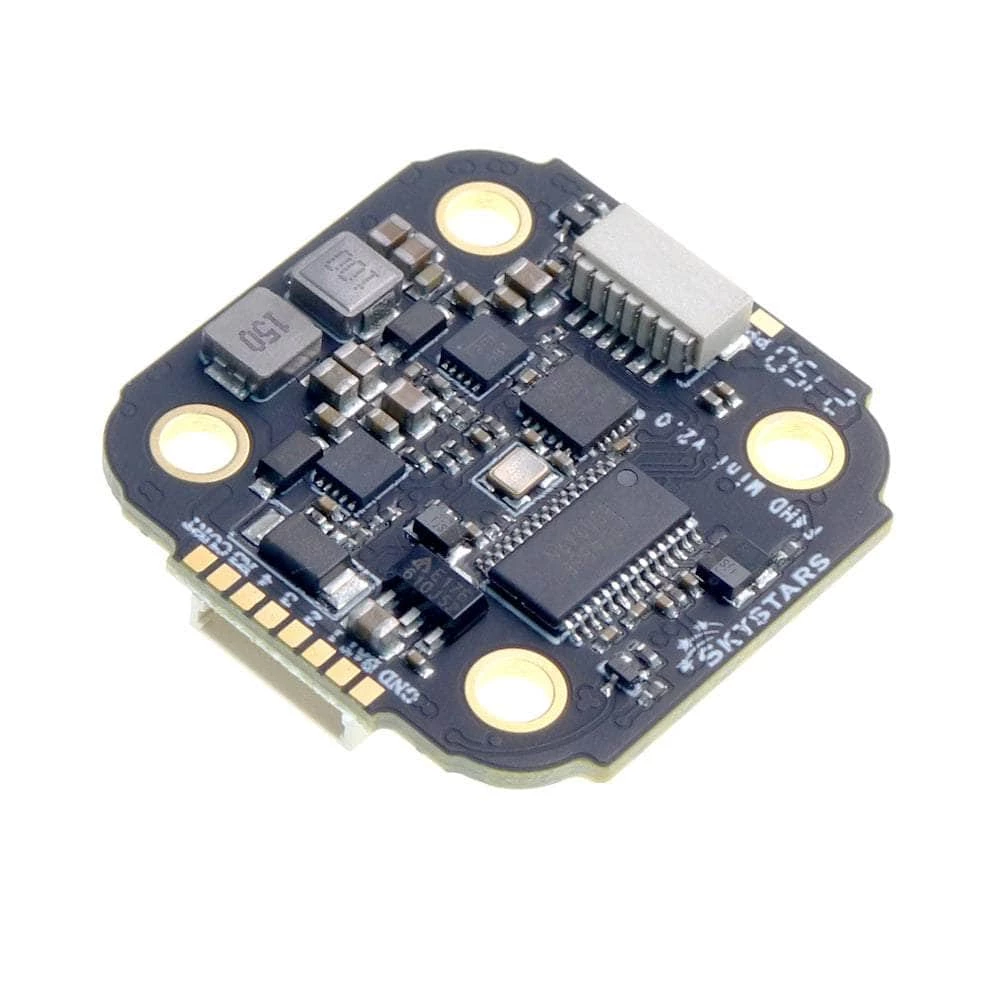

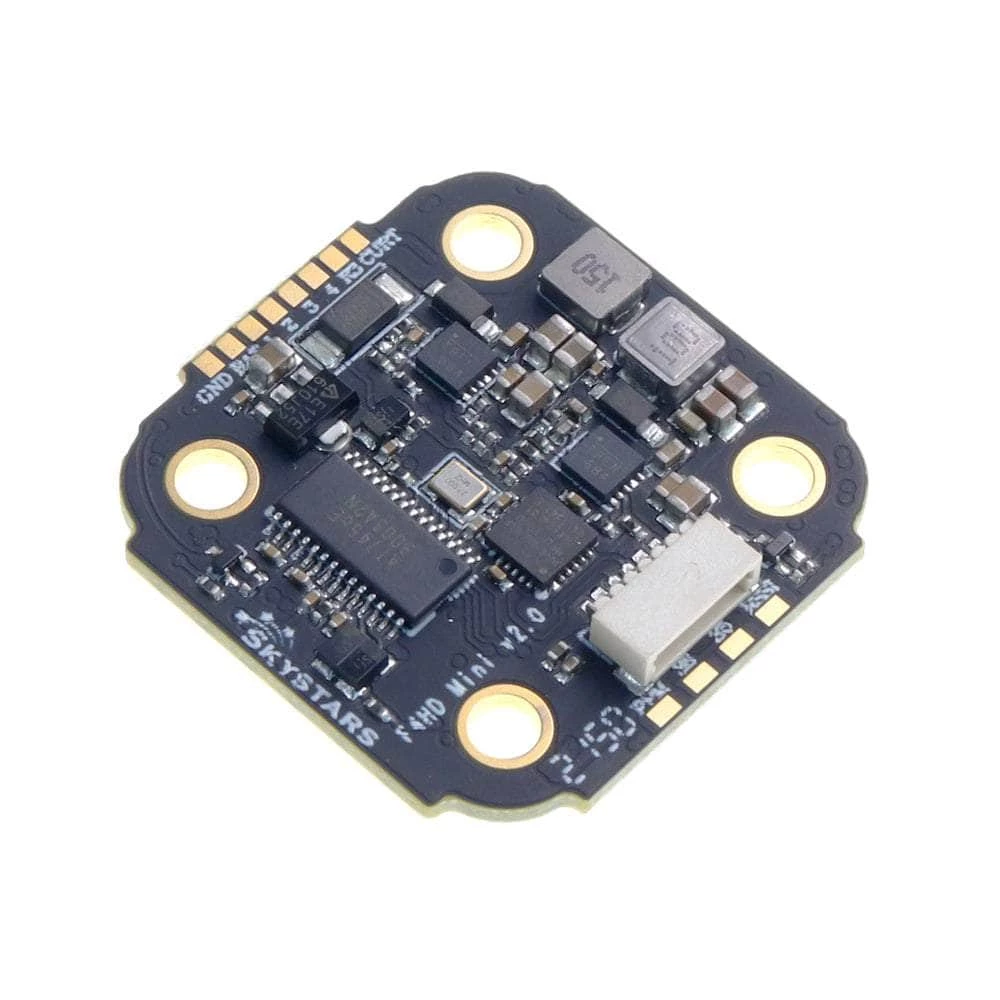

SkyStarsRC F405 Mini HD2 3-6S 20×20 Flight Controller

• MCU: STM32F405RGT6 168MHz
• IMU(Gyro): BMI270
• USB Port: Type-C
• OSD Chip: AT7456E chip
• BLE Bluetooth: Supported
• DJI Air Unit Connection: 6-pin connector and solder pads
• Current Sensor: Supported
• Power Input: 3S-6S LiPo
• ESC Signal: M1-M4 available
• UART: 6 Sets
• LED: Supported
• Buzzer: Supported
• Firmware Target: Betaflight SKYSTARS F405 /INAV SKYSTARS F405HD
• Mounting: 20mm/M2 or M3
• Dimensions: 41.6(L) x 39.4(W) x 7.8(H)mm
• Weight: 4.8g

INCLUDES:

• 1x SkyStarsRC F405 Mini HD2 3-6S 20×20 Flight Controller

Wiring
