Budget 🧨 SkyStarsRC Supreme ELRS 2.4GHz Diversity Receiver – T-Antenna 😍

Coming in at 0.8g, the SkyStarsRC Supreme 2.4GHz with Dual Antenna Diversity Receiver for ExpressLRS. 100% ELRS Devs Approved Low Latency High Refresh Rate for Freestyle Racing Longrange FPV Drones.

Check out all our ExpressLRS-compatible gear! and our SkystarsRC collection!

Specifications

• Type: ISM
• MCU: ESP8285
• RF Module: SX1280IMLTRT
• Antenna Connector: U.FL
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum Receiver Refresh Rate: 500Hz
• Minimum Receiver Refresh Rate: 25Hz
• Receiver Protocol: CRSF
• Telemetry power: 250Mw
• Input voltage: 4.5~5V DC @ 5V pad Power dissipation: 40~45mA (Before Bind), 70~75m A (Binding), 90~95m A (WIFI Mode) PCB size: 20mm x 11mm
• Dimension: 18.2×11.75x3mm
• Weight: 0.8g without antennas

Includes

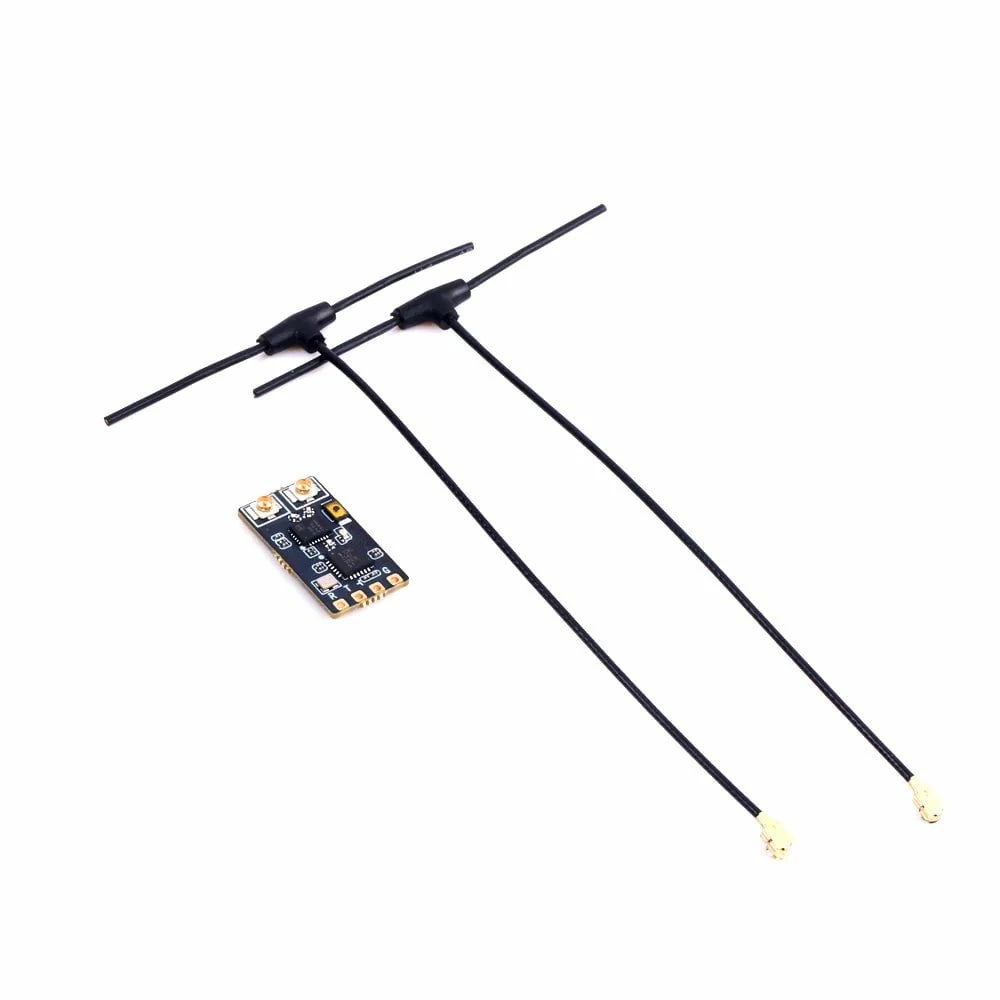

• 1x SkyStarsRc Supreme ELRS 2.4GHz Diversity receiver
• 1x Antenna
