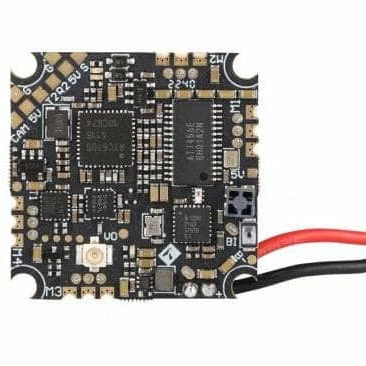

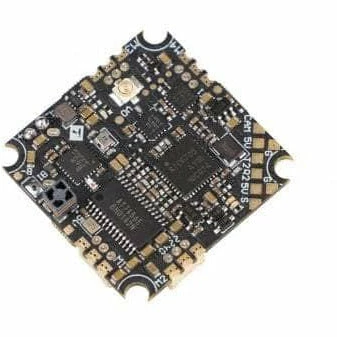

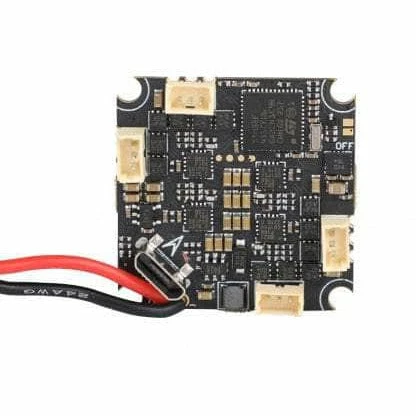

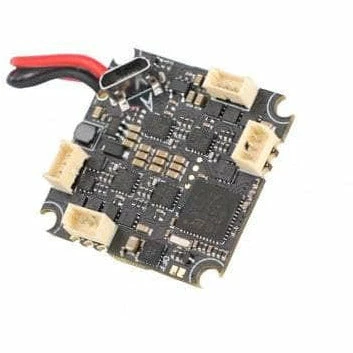

An awesome little AIO from TMotor, Coming with 6A ESCs, ELRS 2.4G onboard reciever, and a 50mw VTX with OSD! This whoop AIO board truly does it all!
Browse our whoop flight controllers,ย and our T-Motor selection!
Features
- Support 1S battery
- F411 chip is used with high-performance computing speed, making it smoother during flight.
- ELRS on board
- 50Mw VTX Smart Audio 1.0
Specifications
Whoop AIO F4 V1.1 AIO
- MCU: STM32F411
- IMU: BMI270
- Firmware target:ย STM32F411
- OSD: Betaflight OSD w/ AT7456Ev
- UART Ports:ย R2 T2
- USB: Micro USB
- BEC output: 5V@1A
- Continuous current: 6A
- Input: 1S
- Supports:ย Blue Jay
- Size: 29.5×29.5mm Board
- Installing Hole: 25.5×25.5mm, M2
- Weight: 6.7g
Includes
- T-Motor F411 1S Toothpick/Whoop AIO w/ BlueJay 6A ESC & ELRS RX
