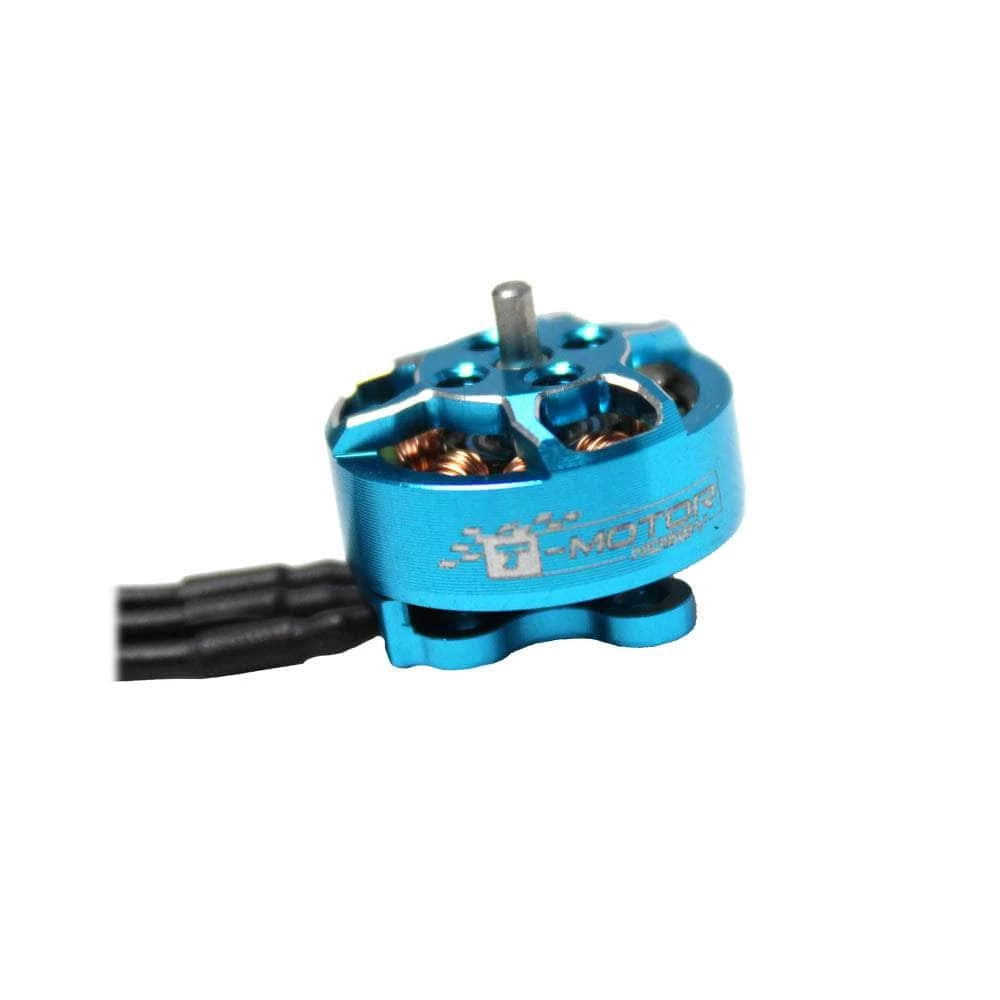

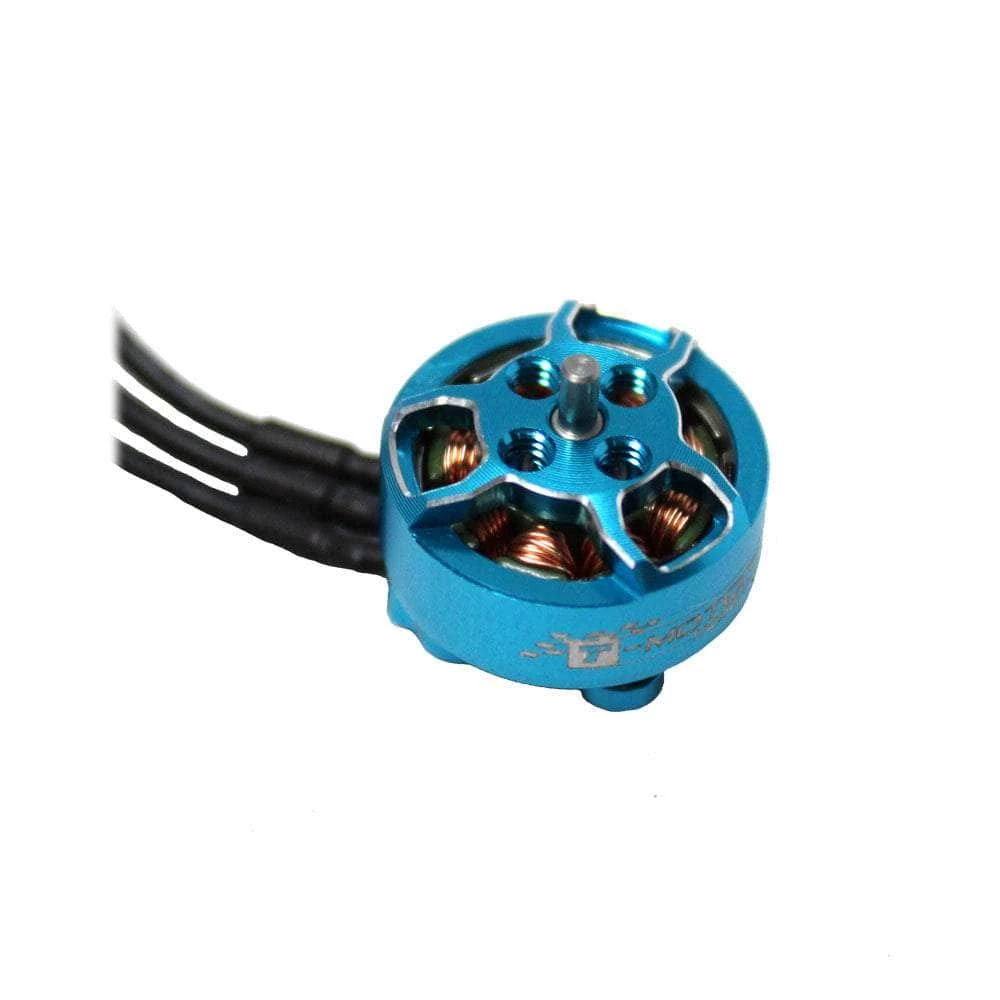

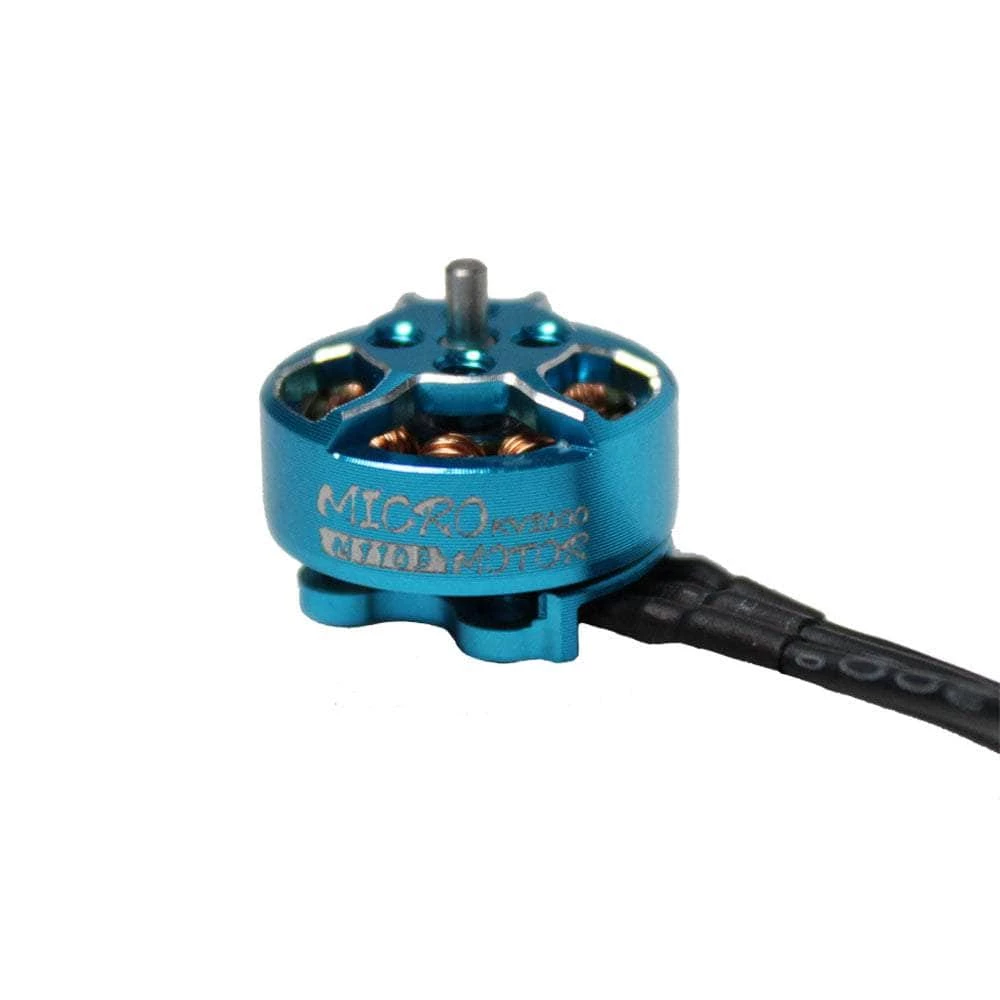

Cheap 🥰 TMOTOR T-Motor M1103 8000Kv Micro Motor ⌛

T Motor designed these specifically for use in 2-3S toothpick builds where smooth and steady operation is key. Perfect for 65mm (t-mount or 1.5mm)props!

Check out all our micro motors and our T-Motor products!

Features

• Specially designed for 2-3S Toothpicks
• Smooth across the entire RPM range
• NBM502Z Bearing for steady operation
• Stepped shaft design keeps shaft from disengaging

Specifications

• Kv: 8000
• Input Voltage: 2-4S
• Configuration: 9N12P
• Max Continuous Current: 11.5A
• Internal Resistance: 163mΩ
• ldle Current@3V: 0.58A
• Motor Dimensions: Φ14.4x14mm
• Stator Dimensions: Φ11x3mm
• Shaft Diameter: 1.5mm
• Output Shaft Dimensions: Φ1.5x4mm
• Wire Dimensions: 24AWG x 75mm
• Mounting Pattern: Φ9mm, 4x M2
• Weight (w/ wires): 4.6g

Includes

• 1x T-Motor F 1103 8000Kv Micro Motor
