The upgraded ToolkitRc M8S is much more than just another charger! With a 400w and 18A charger at its heart the M8S also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control!

Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!

Features

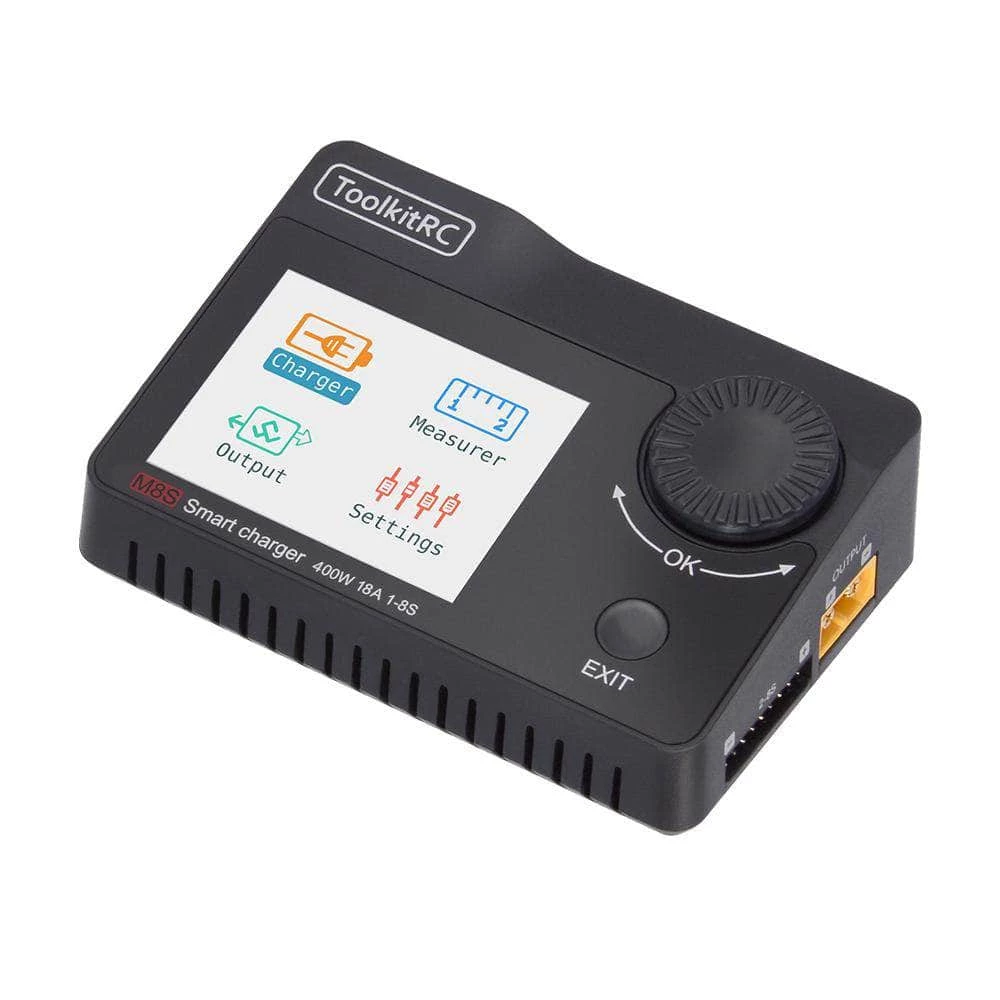

• 2.4″ Color Screen
• Battery Charger
• Cell Checker
• Servo Tester
• PWM,PPM.SBUS Input/output Receiver & Flight control tester
• Viable AMp/volt DC Power supply (Required external DC input)

Specification

Charging

• Input 7-30V: @MAX18A
• Battery Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S
• Bal Current: 800mA @2-8S
• Accuracy: ±0.01V
• Charging Power 0.1-18A @ 400W
• Discharging Power 0.1-18A @ 400W
• Recycle Mode 0.1-5A @ 20W Normal Mode
• USB 2.1A @ 5.0V upgrade

Measuring

• PWM 880us-2200us @20-400Hz
• PPM 880us-2200us*8Ch @20-50hz
• SBUS 880us-2200us*16ch @20-100Hz
• Voltage 1.0V-5.0V @1-8S
• IR 1-100mR @1-8S

Output

• PWM 500us-2500us @20-1000Hz
• PPM 880us-2200us*8ch @50hz
• SBUS 880us-2200us*16ch @74Hz
• Power 1-18A @ 1-30V Mode: CC+CV
• Display:LCD TFT 2.4 inch 320*240 resolution

Product

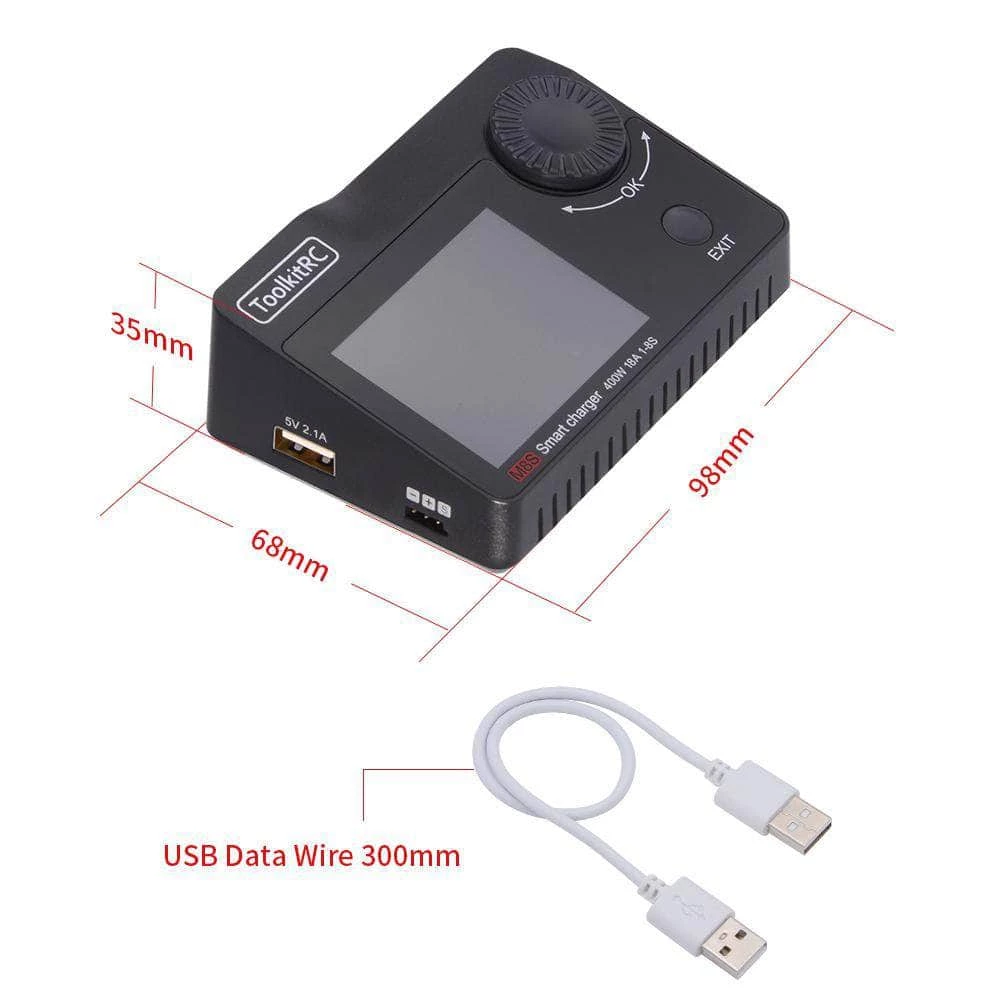

• Size 98mm*68mm*35mm
• Weight 170g
• Packing: Size 108.5mm*80.5mm*46mm Weight 255g

Includes

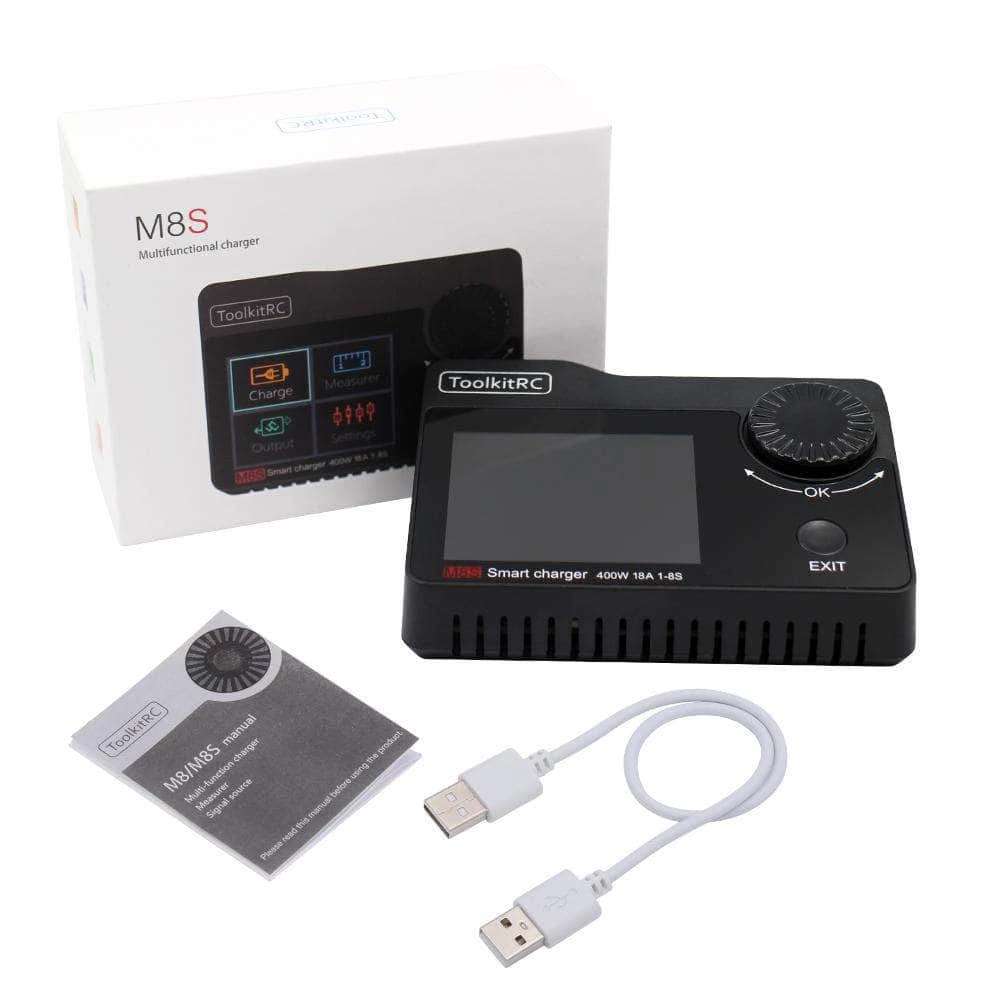

• 1x ToolkitRC M8S 400W 18A Battery Charger& Measuring Device
